OptiXtrans E9600 Intelligent Optical Transmission Platform OptiXtrans E9612
OptiXtrans E9600 Intelligent Optical Transmission Platform OptiXtrans E9612
Specifications
Model Number :
OptiXtrans E9612
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Model :
OptiXtrans E9612
OptiXtrans DC908 Dimensions :
347.2 x 442 x 291 mm
Number of Service Slots :
13
Rate per Channel (maximum) :
100G/200G/400G/600G
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Description
Product Introduction

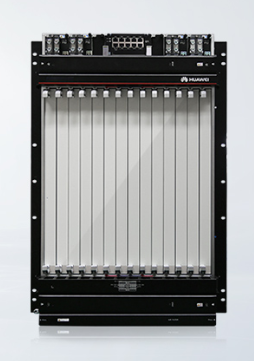

OptiXtrans E9600 Intelligent Optical Transmission Platform OptiXtrans E9612


OptiXtrans E9600

OptiXtrans E9600 is a large-capacity, intelligent, optical-electrical integrated, next generation Multi-Service Optical Transport Network (MS-OTN) platform for enterprise all-optical networking 2.0 (ON2.0).

The new-generation terabit cross-connect chip can process OTN, Virtual Circuit (VC), and packet services of different
granularities and smoothly evolve to OTN+. With 7 nm technology, high integration, and low power consumption, access of services is supported at any rate, from 100 Mbit/s to 400 GE. Per-wavelength capacity can be adjusted between 100 Gbit/s to 800 Gbit/s as needed. AI-enabled Operations and Maintenance (O&M) achieves autonomous-driving networks to cope with the increase in network scale and O&M complexity.

Product Specification

Parameters
OptiXtrans E9612
OptiXtrans E9624
Dimensions (H x W x D)
347.2 x 442 x 291 mm
747.2 x 442 x 295 mm
Number of Service Slots
13
12/24
Cross-connect Type
N/A
ODUk/PKT/VC
Cross-connect Capability
N/A
1:1 mode: 4.8T/2.4T/1.92T
1:3 mode: 10T/2T/1.6T
Channel Spacing
100 GHz fixed grid for 48/60 wavelengths
50 GHz fixed grid for 96/120 wavelengths
37.5 GHz to 400 GHz flex grid
Rate per Channel (maximum)
100G/200G/400G/600G
Services
SDH/SONET, Ethernet, SAN, OTN, Video, PDH (E1 & TPS)
Wavelength Range
DWDM: 1524.50 nm to 1572.06 nm (C band, ITU-T G.694.1)
Power Supply
–48 V DC/–60 V DC
