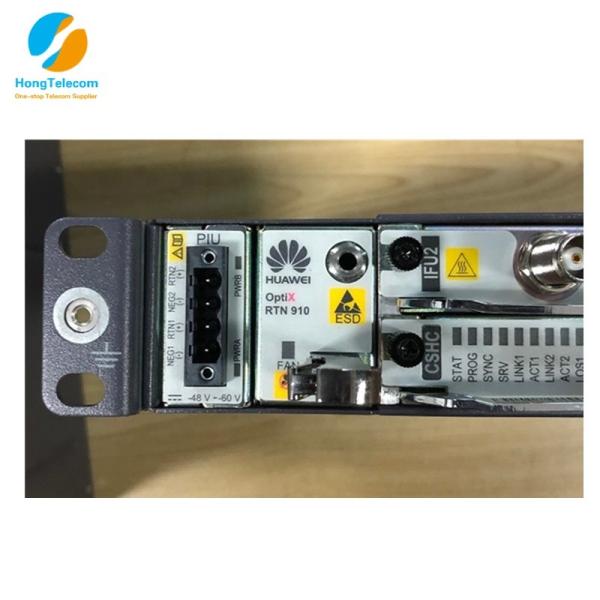

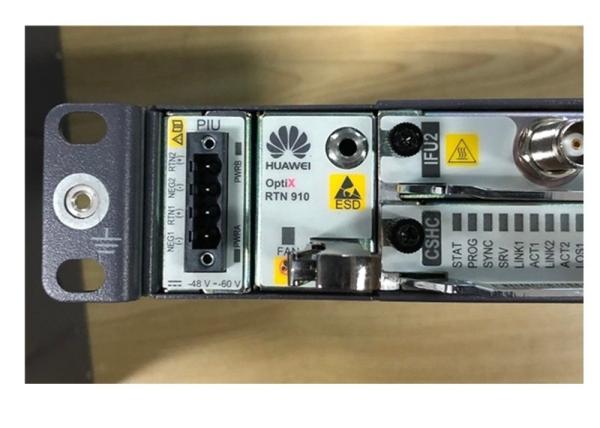

RTN 900 series 1U Microwave transmission solution RTN 910
RTN 900 series 1U Microwave transmission solution RTN 910
RTN 900 series 1U Microwave transmission solution RTN 910
RTN 900 series 1U Microwave transmission solution RTN 910
Specifications
Model Number :
OptiX RTN 910
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
IDU 910 Chassis :
1U
microwave directions :
1 or 2
RF configuration mode 1 :
1+0 non-protection
RF configuration mode 2 :
2+0 non-protection
RF configuration mode 3 :
1+1 protection
RF configuration mode 4 :
XPIC configuration
ODU type :
XMC-2
Frequency band :
11/18/23 GHz
Channel spacing :
30/40/50 MHz
Description
Product Overview

RTN 900 series 1U Microwave transmission solution RTN 91

BOM
Model
SFP Module Collection (STM-1&STM-4)
88030SYB
SLAS00V1R300
Basic Software Package,V100R003(Per Subrack)
88031HMW
SLAS00V1R501
Basic Software Package,V100R005(Per Subrack)
88031WTY
SLAS00V1R600
Basic Software Package,V100R006(Per Subrack)
88031LBX
SLASFUNP9101
RTN 910 Value-Added Function Package, up to V100R005
88031HLN
SLASSFAFEE01
RTN 910 Software Annual Fee (with Value-Added Function), up to V100R005
88030AVC
SLASUPDATE01
RTN 910,Software Release Entitlement(Per Subrack,R(N)->R(N+1))
88031HSY
SLDSASSIST01
TP-Assist Basic Function Fee for MW Access node (Per Subrack)
88031YXM
SLDSASSIST02
TP-Assist Enhanced Function Fee for MW Access node (Per Subrack)

Technical Specifications

The OptiX RTN 910 adopts a split structure. The system consists of the IDU 910 and the ODU. Each ODU is connected to the IDU through an IF cable.

IDU 910

The IDU 910 is the indoor unit for an OptiX RTN 910 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

IDU 910 Item
Description
Chassis height
1U
Pluggable
Supported
Number of microwave directions
1 or 2
RF configuration mode (Long Haul)
1+0 non-protection configuration
2+0 non-protection configuration
1+1 protection configuration
XPIC configuration
Service interface type
FE electrical interface
GE electrical interface
GE optical interface

ODU

The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.

Item
High Power ODU
ODU type
XMC-2
Frequency band
11/18/23 GHz
Microwave modulation mode
QPSK/16QAM/32QAM/64QAM/128QAM/256QAM
Channel spacing
30/40/50 MHz

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
