DWDM OSN1800 V Dispersion compensation fiber - 1525~1568nm 45060157 ODCM08001
DWDM OSN1800 V Dispersion compensation fiber - 1525~1568nm 45060157 ODCM08001
Specifications
Model Number :
OSN 1800 V
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model :
ODCM08001
OSN1800 V Dimension :
221(H)*442(W)*224(D)mm
Max CWDM :
8 wave
Max DWDM :
40 wave
AC Power :
110~220V
DC Power :
-48/-60V( Support 1+1)
Description

45060157 ODCM08001 Dispersion compensation fiber - 1525~1568nm (compensation G.652 fiber) --1270~-1340ps/nm@1545nm (compensation 80km)-8dB-0.1dB.-0.7ps-LC/UPC interface, no pigtail-266*210 *36mm

Device Attributes

Part Number
Model
Description
Main Equipment
Case
02300802
TNFK03AFB
Packet Enhanced Assembly Chassis(5U,DC,with Fiber Storage)
02300803
TNFK04AFB
Packet Enhanced Assembly Chassis(5U,AC,with Fiber Storage)
02301517
TNFK17AFB
Packet Enhanced Assembly Chassis(5U,AC,1500W,with Fiber Storage)
02300783
TNFK01AFB
Packet Enhanced Assembly Chassis(5U,DC)
02300801
TNFK02AFB
Packet Enhanced Assembly Chassis(5U,AC)
02113354
TNFBDCCASE02
Case-II(2U,Fan) with fiber storage
02112894
TNF-Case-II
Case-II(2U,Fan)
02113356
TNFBACCASE02
AC Case-II(2U) with fiber storage
Packet License
88031SYV
TNFSTPASST01
TP-Assist Basic Function Fee(Per subrack)
82600798
NSDSMPLSTP02
OptiX OSN 1800/1832 PACKET Function Fee(Contain MPLS-TP Function,Per Subrack)
82600796
NSDSPKTENC02
OptiX OSN 1800 Platform,Universal Line Card Packet Encapsulation Ability fee(Per Unit)
88031XCQ
TNVS0100GE01
Packet Service License(Per 100GE Port)
88031LPF
TN5S0010GE01
Packet Service License(Per 10GE Port)
88031LPH
TN5S0000GE01
Packet Service License(Per GE Port)

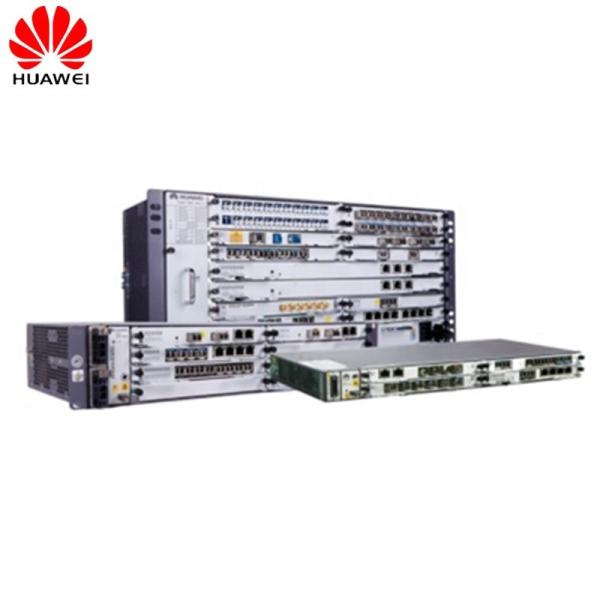

OptiX OSN 1800 V is a new generation of packet enhanced multi service optical transport platform, 5U high integration to fill the needs of the metropolitan device configuration.

Support OTN/PKT unified switching function, Ethernet, TDM, line 2M~10G full service access, and integrated MPLS-TP function, solve the metropolitan area network following fiber resources shortage, as enterprise network, campus network, data center network provides a low cost and high efficiency multi service broadband access solutions
OSN 1800 V
Device Size
221(H)*442(W)*224(D)mm
Business Slot
AD Slot: 12 ; DC Slot: 14
Capacity
OTN: 800G ODUK( K=0,1,2,2e,flex )
Max Wave
CWDM: 8 Wave ; DWDM: 40 Wave
Single channel maximum rate
100 Gbits/s (OTU4)
Install mode
19''/23'' Cabinet , ETSI 300mm/600mm cabinet
Power supply mode
AC: 110-220V OR DC: -48/-60V (Support 1+1 backup power input )

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
