DWDM OSN 9800 UPS DCP board TN11DCP02 TN12DCP01 TN12DCP04 TN13DCP01
DWDM OSN 9800 UPS DCP board TN11DCP02 TN12DCP01 TN12DCP04 TN13DCP01
DWDM OSN 9800 UPS DCP board TN11DCP02 TN12DCP01 TN12DCP04 TN13DCP01
DWDM OSN 9800 UPS DCP board TN11DCP02 TN12DCP01 TN12DCP04 TN13DCP01
Specifications
Model :
TN11DCP02 TN12DCP01 TN12DCP04 TN13DCP01
Dimensions :
397 x 442 x 295mm (without cabinet)
DC power service boards :
16 slots
AC power service boards :
15 slots
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Model Number :
OSN 9800 UPS
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Description
Product Introduction

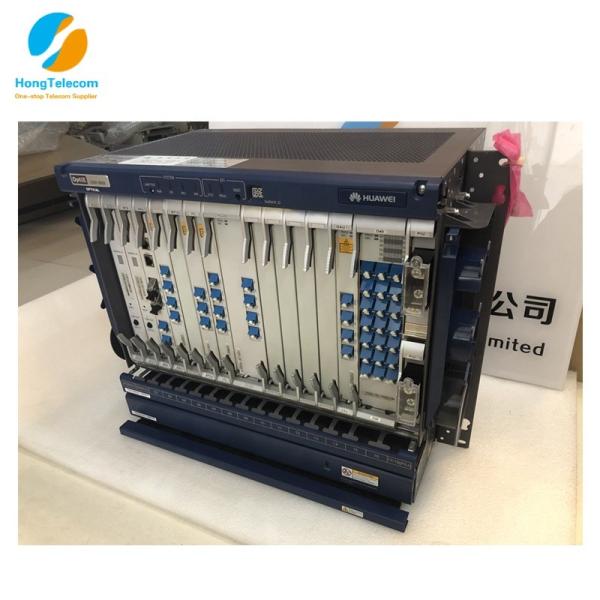

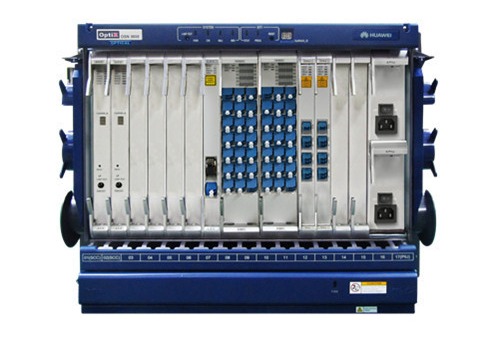

TN11DCP02 TN12DCP01 TN12DCP04 TN13DCP01 DCP: 2-channel optical path protection board

Product Specification

The Huawei OptiX OSN 9800 UPS (Universal Platform Subrack) Specifications:

Specifications
OptiX OSN 9800 UPS ( Universal Platform Subrack)
Subrack dimensions (mm)
397 mm (H) x 442 mm (W) x 295 mm (D) (without cabinet)
Suitable cabineta
ETSI 300/600 cabinets, such as N63B and N66B
19-inch cabinet
Number of slots for service boards
DC power supply: 16
AC power supply: 15
Switching capability
Optical
1 to 20-degree reconfigurable optical add/drop multiplexer (ROADM)
Electrical
N/A
Max. number of wavelengths
Fixed grid: 96 wavelengths @50 GHz grid

Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Center wavelength range
DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1)
Max. rate per channel
200 Gbit/s (OTUC2)
Service type
Synchronous digital hierarchy (SDH)/ synchronous optical network (SONET), Ethernet, storage area network (SAN), optical transport network (OTN), and video
Packet service capacity
N/A
Line rate
2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s, 200 Gbit/s
Supported pluggable optical modules
eSFP, SFP+, XFP, CFP, CFP2, QSFP28
Topology
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, and mesh
Redundancy and protection
Equipment level protection
Power redundancy, fan redundancy, system control and communication board redundancy
Network level protection (OTN)
Optical line protection, client 1+1 protection, SW SNCP, intra-board 1+1 protection, LPT
Network Level Protection (Packet)
N/A
Network Level Protection (OCS)
N/A
Optical power management
ALS, AGC, ALC, APE, IPA, IPA of Raman System
Easy O&M
Optical Doctor System(OD), Fiber Doctor System
Synchronization
Synchronous Ethernet clock
IEEE 1588v2
2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source
External time source (1PPS+TOD)
ITU-T G.8275.1
ASON
Optical-Layer ASON
TSDN
N/A
Submarine Features
DC Power Supply:
Nominal working voltage: -48V DC/-60V DC
Working voltage range:
-48V DC: -40V to -57.6V
-60V DC: -48V to -72V

AC Power Supply:
Nominal working voltage: 110V AC/220V AC
Working voltage range: 90 V to 290 V
Operation Environment
Subrack temperature:
Long-term operation: 5°C (41 °F) to 45°C (113 °F)
Short-term operationa: -5°C (23 °F) to 55°C (131 °F)

Relative humidity:
Long-term operation: 5% to 85%
Short-term operationa: 5% to 95%
Mean Time To Repair (MTTR)
4 hours
Mean Time Between Failure (MTBF)
50 years
