Huawei OSN6800 OSN8800 OSN 6800 8800 DWDM WDM OTN Transmission
Huawei OSN6800 OSN8800 OSN 6800 8800 DWDM WDM OTN Transmission
Specifications
Model Number :
OSN 6800 8800
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
OSN6800 Dimensions(mm) :
497 (W) x 295 (D) x 400 (H)
OSN6800 Service boards slots :
17
OSN6800 Optical Switch :
1 to 9-degree ROADM
OSN6800 Electrical Switch :
180G GE 360G 10GE/ODUk
OSN6800 DWDM Wavelength :
80-ch (max)
OSN6800 CWDM Wavelength :
8-ch (max)
OSN6800 Max. rate :
100 Gbit/s (OTU4)
OSN6800 Max. capacity :
120 Gbit/s
OSN6800 Service types :
SDH, SONET, Ethernet, SAN, OTN, Video
OSN6800 Line rate :
2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Description
Product Introduction

Product Appearance

The huawei Optix OSN 6800

Huawei OSN6800 OSN8800 OSN 6800 8800 DWDM WDM OTN Transmission

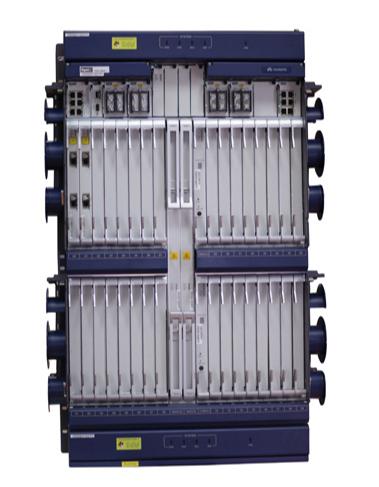

The huawei Optix OSN 8800

Huawei OSN6800 OSN8800 OSN 6800 8800 DWDM WDM OTN Transmission

Product features

1. Transparent access:
The OptiX OSN 6800 employs the ITU-T digital wrapper protocol that allows transparent access of various protocols, such as IP/Ethernet, ATM, SONET, FC and ESCON, and services at different bit rates such as 16 Mbit/s, 5 Gbit/s, 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s

2. With multiprotocol wavelength technology:
The OptiX OSN 6800 can transmit services of various types (voice, data, storage, and video), in line with the evolution from TDM to Ethernet/data services.

3. Flexible grooming:
The OptiX OSN 6800 supports the innovative three-level traffic grooming infrastructure, which integrates dynamic optical cross-connections (multi-dimensional ROADM), flexible electrical-layer grooming (any ADM), and embedded Layer 2 data processing.

4. Manageability:
Apart from operability, manageability, maintainability, and configurability capabilities, the OptiX OSN 6800 has service management functions as well, including bandwidth management, service convergence, and end-to-end detection.

5.Application and Benefits:
According to information released by Ovum, a well-known consulting firm in the telecom industry, by 2014 Huawei led the global optical network market, WDM/OTN market, and 100G/40G market, as well as the backbone WDM market. Huawei WDM/OTN solution has served 39 of the worldwide top 50 carriers.

Product Specification

The Huawei OptiX OSN 6800 Specifications:

Specifications
OSN 6800
Dimensions (mm)
497 (W) x 295 (D) x 400 (H)
Number of slots for service boards
17
Switch
Optical
1 to 9-degree ROADM
Electrical
180G GE
360G 10GE/ODUk(k=1, 2, 2e)
Wavelength
DWDM: 80-ch (max), CWDM: 8-ch (max)
Wavelength range
DWDM: 192.1 THz to 196.05 THz (Band-C, ITU-T G.694.1)
CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)
Max. distance
Multi-span transmission: 32 span x 22 dB/span (10G), 25 span x 22 dB/span (40G), 14 span x 22 dB/span (100G) without electrical regeneration
Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)
Max. rate per channel
100 Gbit/s (OTU4)
Service types supported
SDH, SONET, Ethernet, SAN, OTN, Video
Line rate
2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Max. capacity per PID group
120 Gbit/s
Topology
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy and Protection
Network level protection (OTN)
Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, ODUk SPRing protection, OWSP, board-Level protection
Network level protection (Ethernet)
DBPS, DLAG, ERPS, LAG, LPT, MSTP, STP and RSTP, VLAN SNCP
Equipment level protection
Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy
Optical power management
ALS, AGC, ALC, APE, IPA, OPA
Synchronization
Synchronous Ethernet clock
IEEE 1588v2
2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source
External time source (1PPS+TOD)
ASON
Optical-Layer ASON and electrical-Layer ASON
