Specifications
Model Number :
RTN 950A
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Channel spacing :
3.5/7/14/28/40/50/56MHz
Maximum throughput :
> 600Mbps
Working temperature :
IDU -5℃~+60℃ ; ODU -35℃~+55℃
Relative humidity :
IDU 5%~95% ,ODU 5%~100%
DC Power :
-38.4V ~ -57.6V
AC Power :
220V
Description
Product Overview

ODU huawei rtn950 IP microwave transmission RTN 950A

ODU huawei rtn950 IP microwave transmission RTN 950A

The OpitX RTN 950A is a new generation integrated microwave transmission system developed by Huawei, which can be installed easily and configured flexibly.

It supports the convergence of up to 10 radio links, and supports multiple protection schemes. The OptiX RTN 950A provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission. The platform provide various service interfaces, large bandwidth, and easy scalability. It provides a seamless microwave transmission solution for mobile communication network or private networks.

The OpitX RTN 950A adopts a modular chassis with 2 U height. It belongs to Huawei RTN 900 split IP microwave series that consist of an indoor unit (IDU) and an outdoor unit (ODU). The OpitX RTN 950A provides six slots to flexibly support multiple service boards and convergence of up to 10 radio directions.

BOM
Model
Description
IDU
Subrack
02113821
SLFB1CASE
RTN 950A Assembly Chassis(-48V)
Common Unit
03021PFK
SL91ISV3
Versatile IF Board
88031FHQ
SL9S00XPIC01
ISV3 XPIC Kit (Per IF)
03022VHK
SL91ISM6
Versatile Dual IF Board
03020RES
SL9D000AUX01
Assistant Channel Interface Board
Software
Quotation & Charge Item Collection
88034FCN
SLFS00V1R1000
RTN 950A Basic Software Package,V100R010(Per Subrack)
88031RGT
SLFSUPDATE01
RTN 950A,Software Release Entitlement(Per Subrack,R(N)->R(N+1))
88031EET
SLASUPDATE02
ODU Software Upgrade Fee
Outdoor Cabinet System
02113690
QWMB0OMBAC00
OMB Cabinet (Ver.C, 220V/110V AC)
02113691
QWMB0OMBDC00
OMB Cabinet (Ver.C, -48V DC)
02114555
APMB303E0491
APM30H(Ver.E,-48VDC,TMC11H,DBS3900)
02114668
APMB303E0492
APM30H (Ver.E,-48VDC,TMC11H,DBS3900)
01072956
APM303E2211
APM30H Cabinet(Ver.E,220VAC,DBS3900)
01073052
APMB303E2212
APM30H Cabinet(Ver.E,220VAC,DBS3900)
21030116
QCUBBBULIG01
Lightning Arrester Box
03020FED
WD2D00UELP00
Universal E1/T1 Lightning Protection unit
03022KNY
WD2D0UFLPC00
Universial FE or GE Lightning Protection Unit

Components

The OptiX RTN 950A adopts a split structure. The system consists of the IDU 950A and the ODU. Each ODU is connected to the IDU 950A through an IF cable.

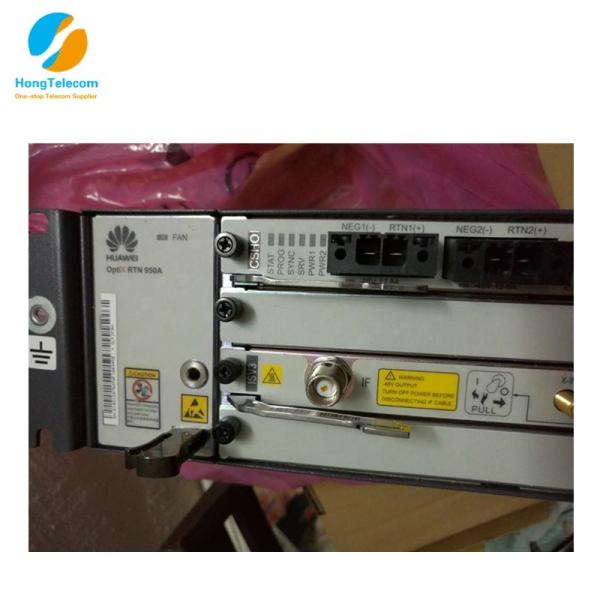

IDU 950A

The IDU 950A is the indoor unit for an OptiX RTN 950A system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

Item
Description
Chassis height
2U
Pluggable
Supported
Number of radio directions
1 to 10
RF configuration mode
N+0 non-protection configuration
Nx(1+0) non-protection configuration
1+1 protection configuration
N+1 protection configuration
XPIC configuration
Service interface type
Native E1 interface
Smart E1 interface
T1 interface
STM-1 optical/electrical interface
FE optical/electrical interface
GE optical/electrical interface
2.5GE optical interface
10GE optical interface

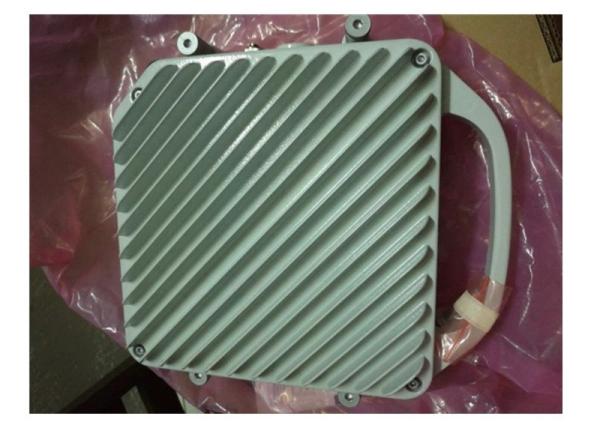

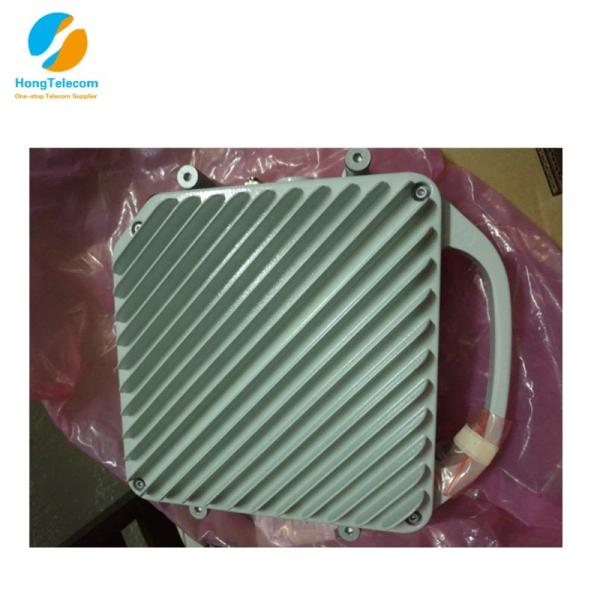

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.

RTN XMC ODUs that the OptiX RTN 950A supports

ODU type
Frequency band
Highest-order Modulation
Channel spacing
XMC-2
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz
2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E)



1024QAM (6/10/10.5/11/26/28/32/42 GHz)



256QAM (7/8 GHz Normal)
3.5/7/14/28/40/50/56 MHz
XMC-2H
6/7/8/11 GHz
2048QAM
7/14/28/40/56 MHz
XMC-3
7/8/11/13/15/18/23/26/28/32/38 GHz
4096QAM(7/8/11/13/15/18/23/26 GHz)

2048QAM (28/32/38 GHz)
3.5/7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/38 GHz)

3.5/7/14/28/40/56/112 MHz (32 GHz)
XMC-3W
7/8/13/18/15/23 GHz
4096QAM
3.5/7/14/28/40/56 MHz

RTN 600 ODUs that the OptiX RTN 950A supports

Item
High-Power ODU
Standard Power ODU
ODU type
HP, HPA
SP, SPA
Frequency band
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP)
6/7/8/11/13/15/18/23 GHz (HPA)
7/8/11/13/15/18/23/26/38 GHz (SP ODU)
6/7/8/11/13/15/18/23 GHz (SPA ODU)
Highest-order Modulation
256QAM
256QAM
Channel spacing
7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz)

7/14/28 MHz (10.5 GHz)
3.5/7/14/28 MHz
