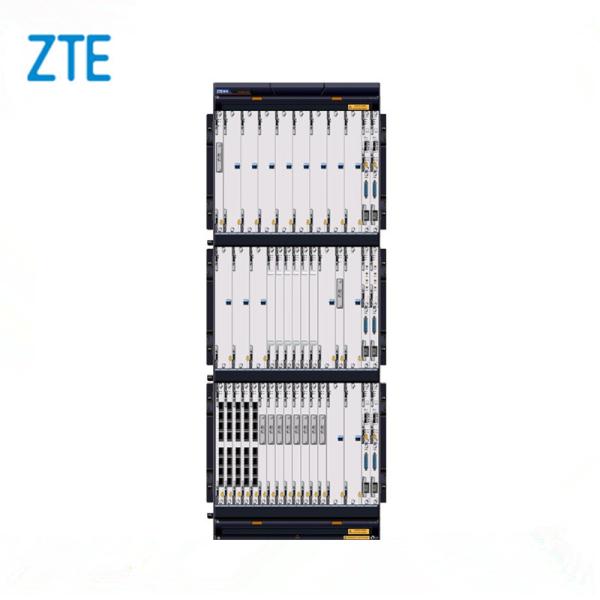

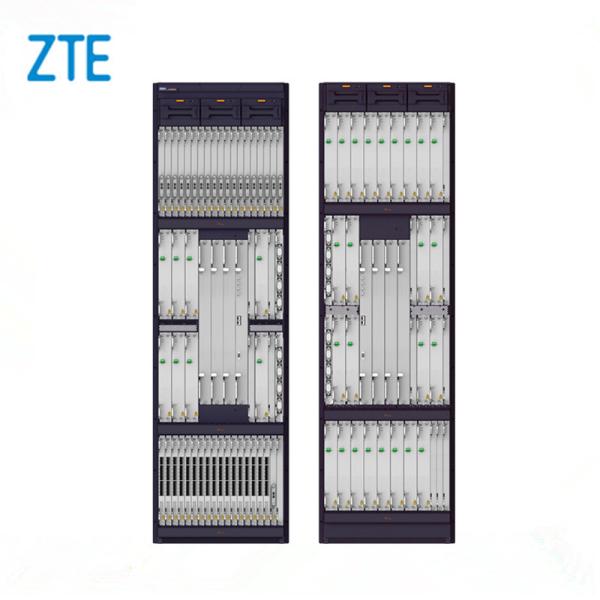

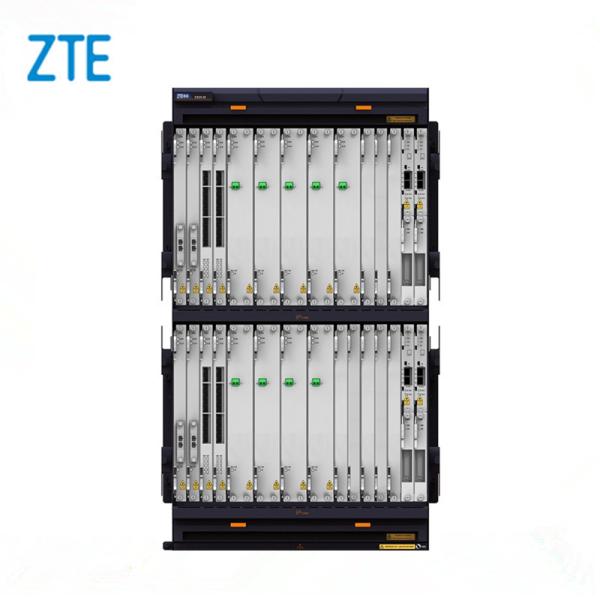

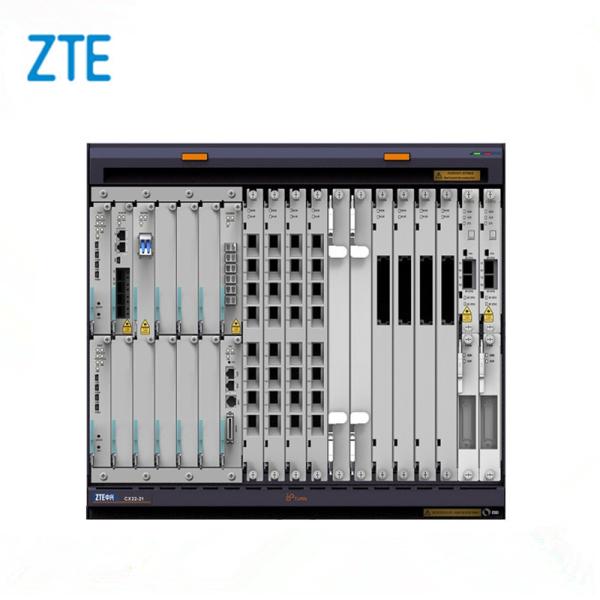

Product Appearance

The ZTE ZXONE 8700

Large capacity full-service particle electrical crossover
The ZXONE 8700 series products support 9.4T, 3.2T, 2.8T, 1.4T, and 0.8T large-capacity electrical crossover, enabling ODU0/1/2/2e/3/4/flex multi-particle non-blocking electrical crossover for network convergence. The core node.

Excellent 100G transmission performance
ZXONE 8700 series 100G system adopts coherent detection PM-QPSK coding technology, supports SD-FEC and HD-FEC, and supports non-electric relay transmission over 5,000 kilometers;
Support 100G single-channel ultra-100G optical network, providing greater carrying capacity.

Easy to maintain OTDR functionality
It is convenient to measure the length of the fiber, the attenuation of the fiber, the position of the fiber break point, and the position of the fiber fusion splice. Support network management system real-time query and detection, routine maintenance and fault location becomes easier. The

Highly integrated, green energy-saving
The 100G line-side line side supports coherent CFP modules, greatly reducing system power consumption;
The industry-leading 28nm ASIC chip is used to meet the industry's environmental protection trends. The

High reliability system architecture
The cross unit adopts advanced cube protection, which improves the reliability by 3 orders of magnitude compared with the ordinary 1+1 protection.

Optoelectronic hybrid crossover and intelligent scheduling
The optical layer supports 2-20-dimensional ROADMs, supports N*M-type WSSs, supports direction-independent, wavelength-independent, and content-independent, and can realize automatic end-to-end wavelength configuration;
Load WASON to realize the intelligent control of the optical plane and the electrical plane.

Ultra-high integration convergence layer list PIC OTN solution
ZXONE 8700 provides PIC single-site single-subrack solution. The subrack can realize service access, service cross-dispatching, combining and demultiplexing, optical amplification, clock time processing and transmission, and adopts PIC technology, lower power consumption, and maintenance. More convenient, short-distance (less than 30km) optical amplifiers are not required, and a high degree of integration of deployment-site site subracks is truly realized.

Carrier-grade reliable protection
Based on years of engineering practice and strong R&D capabilities in the field of optical network protection, ZTE supports multiple protection methods such as fiber-level, wavelength-level, sub-wavelength-level, and L2 level:
Fiber grade: Line 1+1 protection, optical multiplex section 1+1 protection;
Optical channel level: optical channel 1+1 protection;
ODUk level: ODUk 1+1 protection;
L2 layer: ESR protection.

Full support for time and clock synchronization
Supports in-band/out-of-band 1588V2 time synchronization, supports synchronous Ethernet transmission, supports 2M clock transmission, and strongly supports 3G and LTE deployments.
