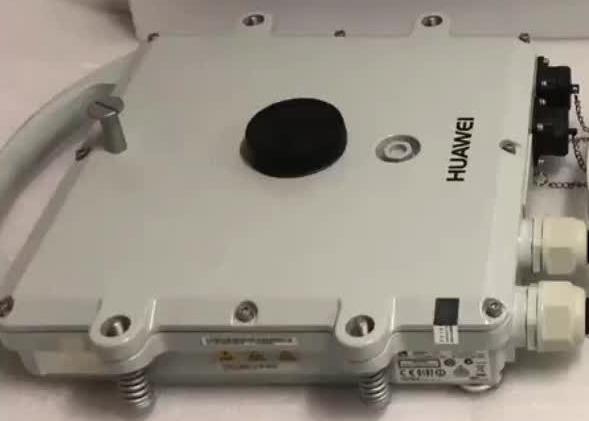

Microwave link odu rtn huawei RTN380
Microwave link odu rtn huawei RTN380
Specifications
Model Number :
RTN380
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Working temperature :
-35℃~+55℃
Relative humidity :
5%~100%
DC Power :
-38.4V ~ -57.6V
Description
RTN300 series of new generation of outdoor IP microwave transmission system


Huawei RTN300 series, is a highly integrated full-outdoor microwave products. Including RTN310, RTN360, RTN380 three products. RTN300 series is the microwave equipment, all the features are integrated in an outdoor box, to achieve zero-site full outdoor installation;

The RTN310 is a full-band microwave in the conventional frequency range and requires the use of a conventional frequency band. The RTN360 is a V-band microwave, the RTN380 is an E-band microwave, and the E / V-band is a free band in most countries. Light-charged band. As a result, the RTN300 Series provides enterprise customers with a complete outdoor microwave transmission solution with low network costs and low operating costs
RTN310
RTN360
RTN380
Support frequency
13/15/18/23/38GHz
59-64GHz
71-86GHz
Channel spacing
7/14/28/56MHz
200MHz
62.5/125/250/500/750MHz
Modulation mode
QPSK Strong~2048QAM Light
160QAM
QPSK Strong~64 QAM
Throughput
2Gbps Max
400Mbps
4Gbps Max
Business interface
GE
GE
GE, CPRI interface
USB interface
Support
Support
Support
Working environment
Working temperature : -35℃~+55℃
Relative humidity: 5%~100%
Power supply range
Support Ethernet power supply;
Support DC power : -38.4V ~ -57.6V
Weight
6kg
2.5kg
3.8kg
Features

1. Large bandwidth:

RTN310 support up to 2Gbps / carrier frequency large bandwidth, continuous expansion of the network worry;RTN360 support a single device 400Mbps transmission, close to zero-site deployment worry-free;RTN380 support a single device 4Gbps high-capacity transmission, to meet the backbone of large-capacity short-range return.

2. High reliability:

Support network-level, link-level, device-level multi-level protection; to meet the IP65 dustproof and waterproof 8KA mine grade requirements to ensure reliable operation in harsh environments in various fields.

3. Good luck:

Support engineers under the tower operation and maintenance, without climbing tower; support the deployment of USB configuration to enhance efficiency; support 360-degree automatic sweep, easy to select frequency.

Packing & Delivery

Delivery

1. 3-7 Working days after received the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original HUAWEI Carton Package.

2. As customers' requirement.
