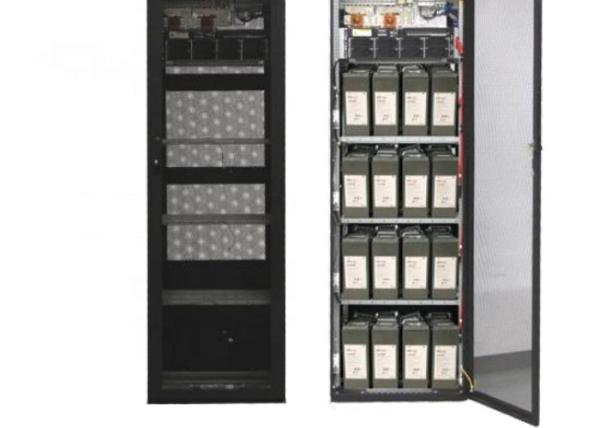

TP48400B Huawei Power Supply
TP48400B Huawei Power Supply
Specifications
Place of Origin :
China
Brand Name :
Huawei
Model Number :
TP48400B
Supply Ability :
200 Piece/Pieces per Week
MOQ :
Negotiable
Price :
Negotiable
Model :
TP48400B
Skype ID :
Hongtelecom_ethan
Rectifier efficiency :
>96%
Type :
indoor power system
Keywords :
TP48400B, Indoor power system
Dimension(W*D*H) :
600mm*600mm*2000mm
Rated capacity :
400A(2~8 rectifiers)
Built-in battery :
4 groups( 2V/12V Lead Acid
Protection level :
IP20
AC Input voltage :
85~300V AC
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Indoor Power System 400Ah High Rectifier Efficiency TP48400B

Indoor Power System 400Ah High Rectifier Efficiency TP48400B

Device Features

* High rectifier efficiency (>96%): helps save energy

* Excellent rectifier dormancy function: improves system efficiency

* Wide temperature range for rectifiers: -40℃~+75℃, non-derating below 55℃

* Hot-swappable modules for easy installation

* Intelligent battery management: prolongs battery lifespan

* Multiple signal ports: realizes remote management through dry contacts, serial interface or network interface

* In-band transmission: zero additional hardware cost to realize centralized and remote site monitoring

* Suitable to multiple scenarios of indoor sites

* 32U space to accommodate battery and main equipments: provides better use of space

Technical Specifications

Item
Specification
Dimensions (H x W x D)
600mm×600mm×2000mm
Weight (empty)
≤100kg(without rectifiers and batteries)
Rated capacity
· TP48200B Series: 200A(2~4 rectifiers)
· TP48400B Series: 400A(2~8 rectifiers)
Cooling mode
· Natural cooling
AC SPD for input
· 20kA / 40kA, 8/20µs
Communication port
· RS232/485; FE interface
Application Scenarios
· Indoor sites of access network

· Indoor sites of transmission network

· Medium and small capacity central offices

· Enterprise communication network
