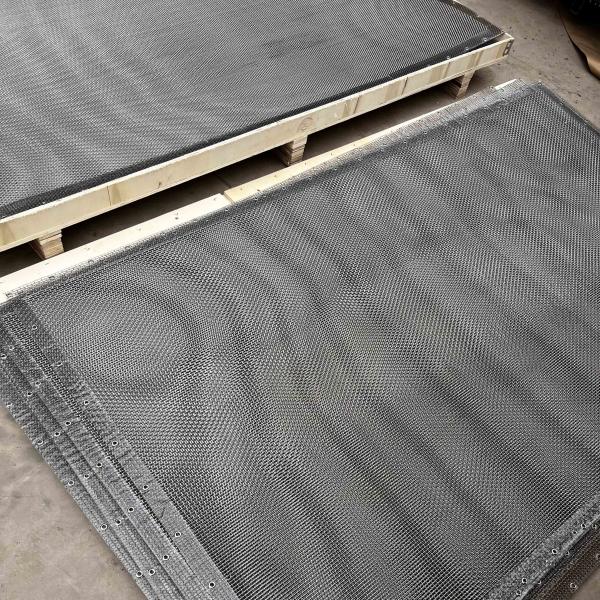

316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
Specifications
Brand Name :
CHINA HUATAO
Model Number :
HT
Certification :
ISO9001,CE,SGS etc.
Place of Origin :
China
MOQ :
1PCS
Price :
USD 100-200 per pcs
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100PCS/MONTH
Delivery Time :
5-8 work days
Packaging Details :
Wooden Box or Carton Box
Mesh Material :
Stainless Steel 304, 304L, 316, 316L
Description
316L Stainless Steel Grommet Screen 14-230 Mesh for Mineral Processing
Product Overview

316L Stainless Steel Grommet Screen for Mineral Processing Machines

Acid-Resistant 316L Stainless Steel Grommet Screen for Mineral Processing Machines

HUATAO's grommet screens are precision-engineered replacement screens for Rotex® separators and other mineral screening equipment. These wire screens feature reinforced edges with either heavy-duty PU strips or 180-degree folded mesh, secured with durable stainless steel grommets for easy installation and long service life.

Our rectangular mesh design provides up to 30% larger open screening area compared to standard options, increasing processing capacity without compromising screen durability. Available for all common cut sizes, these screens are ideal for both coarse and fine mineral separations.

Compatible with mineral processing machines of all types and sizes, including Megatex® screeners (with optional stainless steel hooks for secure fitting). The high-grade stainless steel grommets resist wear and corrosion in demanding mining environments.

Key Parameters
Parameter Specification
Mesh Material Stainless Steel 304, 304L, 316, 316L
Edge material PU, canvas, silica gel reinforced strips
Mesh type Woven mesh
Mesh count 14-230
Wire diameter 0.0014-0.0090 inch
Open area 46.0%-76.4%
Detailed Specifications
Item Mesh Size Wire Size (in.) Microns Open Area %
1 14 0.009 1580 76.4
2 16 0.009 1360 73.3
3 18 0.009 1180 70.2
4 20 0.009 1040 67.2
5 22 0.0075 964 69.7
6 24 0.0075 868 67.2
7 26 0.0075 786 64.8
8 28 0.0075 716 62.4
9 30 0.0065 681 64.8
10 32 0.0065 630 62.7
Edge Type Options
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
Black PU-Strip Grommet Screen
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
Transparent PU-Strip Grommet Screen
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
180° Folded Edge Grommet Screen
Production Process
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
Packaging & Logistics

Wooden box packaging for secure transportation.

316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
Applications
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines
