Specifications
Brand Name :
Huatao
Max Pressure Diff :
2180 kPa
Specification :
OEM
Certification :
ISO9001, CE
Delivery Time :
5-7 Days
Max Feed Size :
30mm
Aperture Size :
0.1mm – 130mm
Model Number :
PU Screen Panel
Material :
Polyurethane material and embedded steel frame
Type :
Ws85,Ls Series
Place of Origin :
China
Payment Terms :
T/T,Western Union,L/C,D/A,D/P
MOQ :
5 Pieces
Supply Ability :
10000 Pieces Per Month
Packaging Details :
Standard Export Packing
Thickness :
30mm,40mm,50mm
Screen Area Increase :
50% (Stereoscopic Ridge)
Production Capacity :
10000PCS/Month
Price :
USD 35 - 45/Piece
Hardness :
65 - 91 Shore A
Description

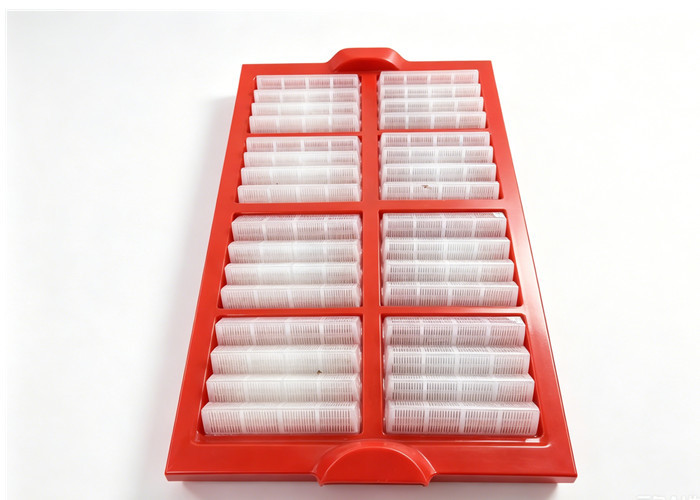

Huatao Hump Structure Polyurethane Panel with 50% More Screening Area
Product Overview

The Huatao "hump" structure polyurethane dewatering screen panel is a revolutionary design aimed at maximizing screening and dewatering capacity in mineral processing plants. By implementing a raised ridge configuration, this panel increases the effective screening area by 50% compared to standard flat designs. This unique geometry allows for a more uniform distribution of material across the deck, effectively reducing localized buildup and the risk of clogging. Manufactured from high-performance polyurethane elastomer, these panels offer a service life 3-5 times longer than metal alternatives and up to 5 times longer than rubber. The increased opening rate enhances the residence time of the material on the screen surface, significantly improving both dewatering and demediation efficiency. These panels are available in various colors and feature a modular system that is compatible with bolt-down or rail mounting, ensuring easy installation and replacement. With a sieve hole range of 0.15mm to 3mm, they are ideal for coal grading, slurry dewatering, and tailings treatment. Huatao’s 36 years of manufacturing experience and ISO9001 certification ensure that every panel meets the highest standards of durability and performance in harsh industrial environments.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications
Item Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W) 300mmx 300mm
305mmx 305mm
300mmx600mm
300mmx800mm
300mmx 1000mm
305mmx610mm
others can be designed
Color Yellow;Red;Orange;Green as regular
Thickness 5mm;30mm;40mm;50mm as regular
Warranty 12 Months
Applicable Industries Energy & Mining
Material Polyurethane with steel frame/MDI/TDI
Screen Size 5mm;30mm;40mm;50mm as regular
Cell Type Slot,Square,Round etc.
Connection Type WS 85;
Trellex LS;
P-yramid;
Rail;
etc.
Connection Type
Huatao Hump Structure Polyurethane Panel with 50% More Screening Area
Key Features
  • Polyurethane materials for wear resistance
  • Self-cleaning apertures reducing pegging and blinding
  • Wide range apertures suit most applications
  • Various panel sizes to suit all vibrating screens
  • Different connection type for easy installation and replacement
  • High screening performance
  • Low noise operation
  • Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

Huatao Hump Structure Polyurethane Panel with 50% More Screening Area

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

Huatao Hump Structure Polyurethane Panel with 50% More Screening Area

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
