High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
Specifications
Brand Name :
HT
Model Number :
HT042
Place of Origin :
CHINA
MOQ :
5pcs
Price :
150-700USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20PCS / DAY
Delivery Time :
7-15DAYS
Packaging Details :
WOODEN BOX
Wire diameter :
1.0-30mm
Description
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
Product Overview

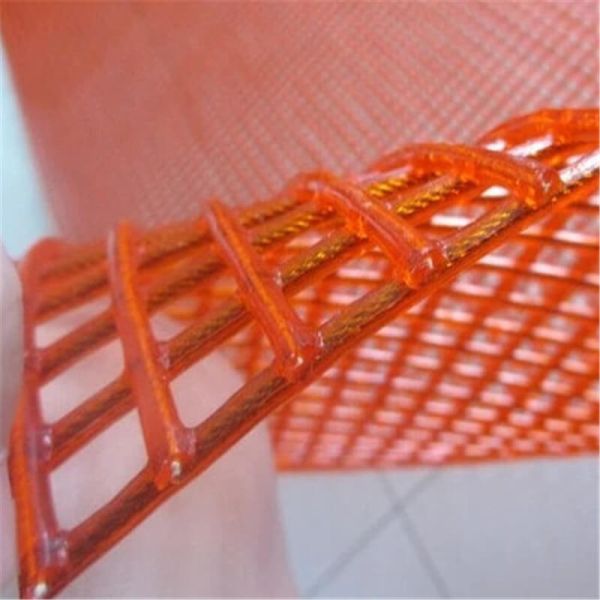

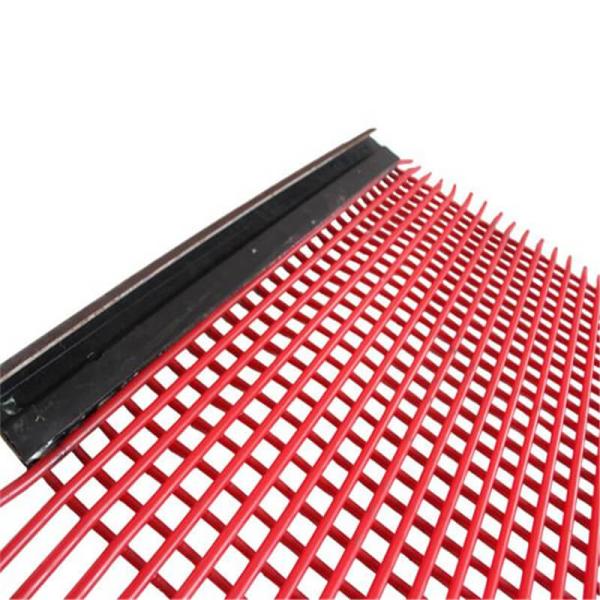

Self-cleaning Polyurethane Media is available in three distinct variations to suit diverse screening applications: fully welded, partially welded, and rectangular welded designs. Engineered for versatility and durability, this high-performance screening media features a vibrant, eye-catching appearance that supports easy identification on job sites.

High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining

Crafted from lightweight yet robust polyurethane material, its smooth, non-stick surface significantly simplifies handling across the entire product lifecycle—including transportation, warehousing, on-site installation, and replacement or removal.

Performance Advantages

The polyurethane screens last over twice as long as traditional woven wire mesh. The performance is different from traditional wire, rubber and poly screens due to a combination of the poly/wire construction and the fully/partially weld features.

High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
Extended Lifespan

Lasts over twice as long as traditional woven wire mesh

Reduced Noise

Produces less noise than wire counterparts with less sound from clashing objects

Minimized Pegging & Blinding

Particularly effective with partially welded screens due to secondary vibration effects

Superior Wear Resistance

Exceptional durability compared to high-tensile steel woven wire screens

Technical Specifications
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining

The aperture shapes are similar to woven wire, square or rectangular, and the construction varies with either fully or partially welded.

Specification Range
Aperture Range 1.5mm to 45mm
Wire Rope Diameter 1.5mm to 12mm
Custom Rectangular Slots As fine as 0.7mm wide
Product Wire Diameter 2.5mm
High-Wear PU-Coated Screen Mesh With 2.5mm Wire Diameter Rectangular Holes For Mining
Operational Benefits
  • Extended service life reduces downtime for screen changes
  • Improved overall screening efficiency in demanding industrial environments
  • Smooth finish and movement between wires prevent material from staying on the surface
  • Lightweight construction simplifies installation and replacement processes
  • Vibrant appearance enables easy identification on job sites
