Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Specifications
Brand Name :
HT
Model Number :
HT071
Place of Origin :
CHINA
MOQ :
20PCS
Price :
30USD - 300USD /PC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50PCS/DAY
Delivery Time :
2-10DAYS
Packaging Details :
WOODEN BOX , PALLET
Material :
STEEL, STAINLESS STEEL
Description
Steel Woven Vibrating Screen Mesh / Screening Wire Mesh 1mm - 100mm

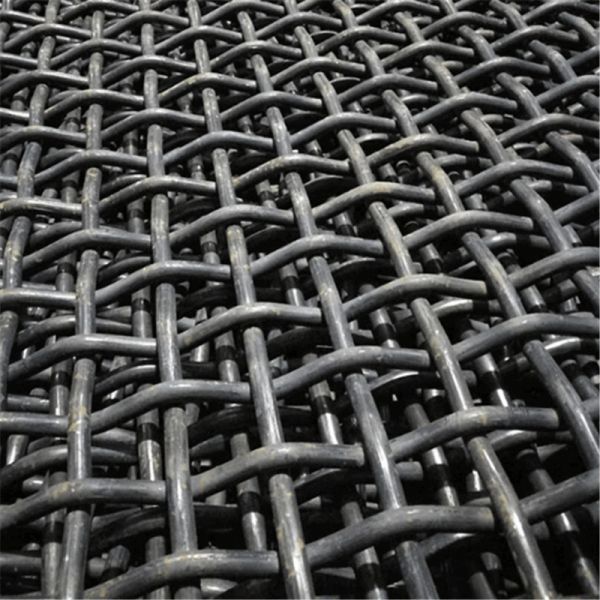

Woven vibrating screen mesh is manufactured from manganese steel wire, galvanized wire or stainless steel wire. The wires are woven into square, rectangular or long slot meshes.
Woven vibrating screen mesh has various weaving types, such as plain weave, pre-crimped weave, flat top, intermediate crimped and lock crimped. Various weaving types can fit different vibrating screens and materials.
Woven wire screen is also called quarry/mining screen mesh, screening media, which is widely used in vibrating, scalping and sizing materials of rock, stone, asphalt, quarry, aggregate, limestone, grain, etc.
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
Specifications
Material Black wire, spring steel wire, manganese steel wire and stainless steel wire
Surface Treatment Galvanized or painted

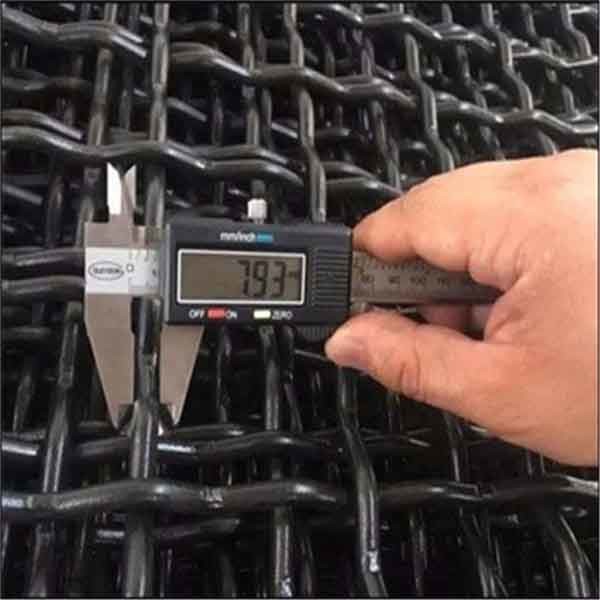

Wire Diameter 0.71mm - 12.5mm
Mesh Size 1mm - 100mm
Hole Type Square, rectangular and long slot
Weaving Types
  • Plain weave
  • Pre-crimped
  • Flat top
  • Intermediate crimped
  • Lock crimped
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance

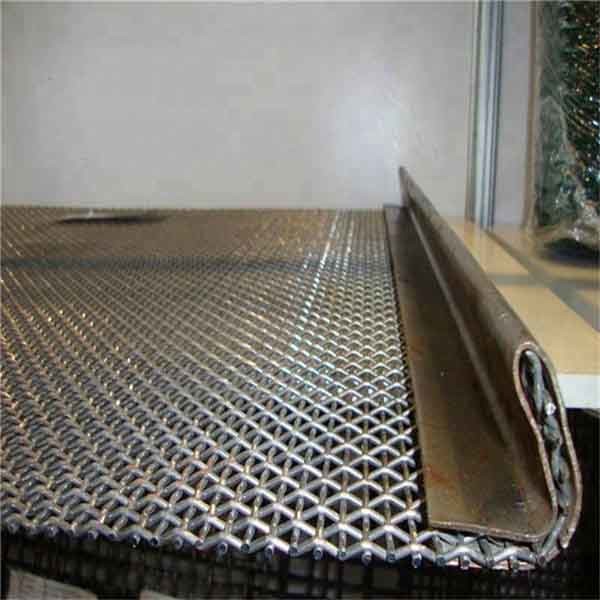

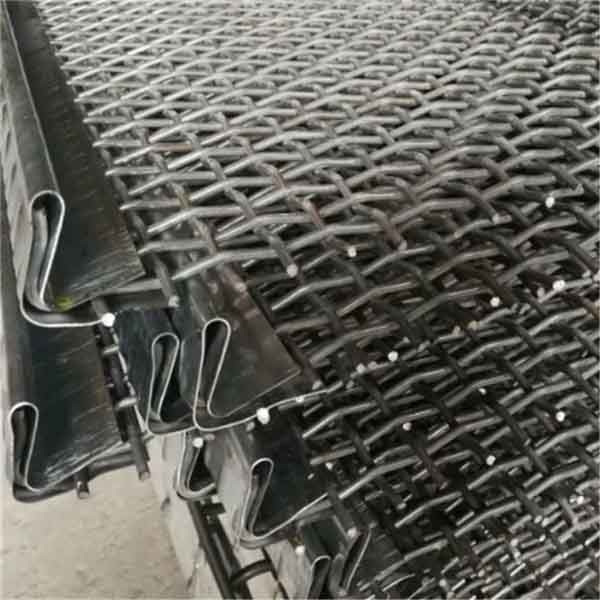

Hook Types
  • Bending
  • Welding
  • Metal sheet hook (C type or U type)
Features
  • High tensile strength
  • Abrasion and wear resistance
  • Impact resistance
  • Acid and alkali resistance
  • Various weaving types to fit different materials
  • Different hook types for easy installation and fixation
Applications
The woven vibrating screen mesh is widely used in vibrating screens, crushers and trommel screens. Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.
Steel Woven Vibrating Screen Mesh with 1mm - 100mm Mesh Size for High Tensile Strength and Abrasion Resistance
