0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket 0.10mm-0.25mm
0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket 0.10mm-0.25mm
0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket 0.10mm-0.25mm
0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket 0.10mm-0.25mm
0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket 0.10mm-0.25mm
0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket 0.10mm-0.25mm
Specifications
Brand Name :
HUATAO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
30-45 days
Packaging Details :
Standard Sea Packaging
Model Number :
Pulping Equipment Pressure Screen Stainless Steel Screen Basket Pressure Screen
Certification :
CE , ASTM1789
Price :
15000 - 37000USD / Set
Supply Ability :
1000 Sets per year
Material :
Stainless Steel
Name :
Pulping Equipment Pressure Screen Stainless Steel Screen Basket Pressure Screen
Range Of Screen Slot :
0.10mm-0.25mm
Screen Area :
0.8 M2-6 M2
packaging :
standard export package
Description
0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket
Product Specifications
Material: Stainless Steel
Screen Slot Range: 0.10mm-0.25mm
Screen Area: 0.8 M2-6 M2
Product Description

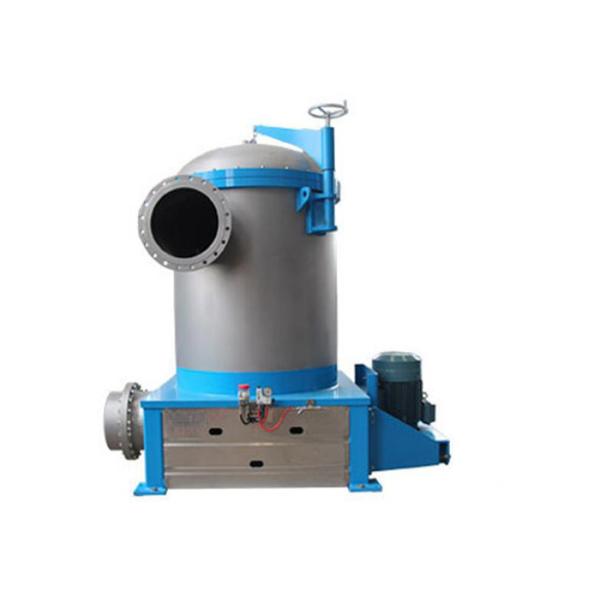

The Pulping Equipment Pressure Screen Stainless Steel Screen Basket operates under the rotating function of the drum sieve and rotating cylinder with centrifugation effect. This machine efficiently separates qualified pulp from non-qualified pulp. The system consists of a cylinder, cylinder cover, sieve drum, rotary cylinder, base, and transmission components.

Technical Specifications
Type HT-81 HT-82 HT-83 HT-84 HT-85 HT-86
Screen area 0.8m² 1.5m² 2.5m² 3.5m² 4.5m² 6m²
Screen consistency 0.8%-2.0%
Range of screen hole φ1.2-φ1.8mm
Flow rate L/s 35-80 60-140 110-250 150-340 200-450 280-660
Power of motor 30kw 45kw 55kw 75kw 90kw 132kw
Key Features
  • Multiple rotor blades design prevents winding while delivering high efficiency and energy savings
  • Heavy impurities discharge pipe ensures safe operation of the screen basket
  • Advanced durable structure with easy disassembly/assembly and low energy consumption
  • Minimal fiber loss and simple operation for continuous working with low maintenance
  • Automatic oil injection system reduces maintenance requirements
  • Seal water flow detection with alarm ensures system safety
  • Interlock system extends equipment service life
Product Image
0.8 M2 Pulping Equipment Pressure Screen Stainless Steel Screen Basket 0.10mm-0.25mm
