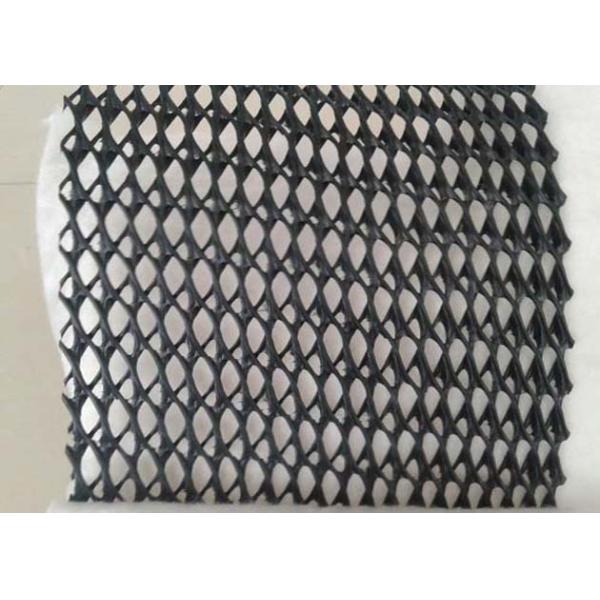

Geocomposite 3d Drainage Geonet Black / Green 6.2kn/m ~ 18kn/m width 2.0m / 2.5m
Geocomposite 3d Drainage Geonet Black / Green 6.2kn/m ~ 18kn/m width 2.0m / 2.5m
Geocomposite 3d Drainage Geonet Black / Green 6.2kn/m ~ 18kn/m width 2.0m / 2.5m
Geocomposite 3d Drainage Geonet Black / Green 6.2kn/m ~ 18kn/m width 2.0m / 2.5m
Specifications
Brand Name :
Huatao Lover
Model Number :
HT-Drainage Board
Certification :
CE/ISO9001/ISO14001
Place of Origin :
China
MOQ :
5000m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Square Meter/Square Meters per Day 24 hours production
Delivery Time :
5-8 work days
Packaging Details :
black HDPE plastic film
Material :
HDPE
Thickness :
5m-8m
Lenth :
30-50m or as your request
Weight :
Light weight
Width :
1-4
Description

Geocomposite Drain Hdpe Geonet 3d drainage geonet Black/greeen 6.2kn/m~18kn/m width 2.0m/2.5m

3d drainage geonet Introduction:

Geonet is made of high-density polyethylene (HDPE) and the ultravioresistant agent

3d drainage geonet Features:

1,Excellent drainage function, can bear long time high press load.

2,High tensile and shear strength.

3.Its anti-compression capacity is much larger than common geonet for drainage.

3d drainage geonet Application:

1. Using the geonet on the roadbed of the roadway and railway can distribute the load effectively, improve the loading capacity and the stability of the roadway, and prolong its service life.

2. Spreading the geonet on the slope of road can prevent landslides, conserve water and soil, beautify the environment.

3. Spreading the geonet in the dyke protection in the reservoir and the river can protect it from the landslide.

4. Using the geonet in the coast engineering can amortize the concussion and the erosion of the surf.

3d drainage geonet Specification:

Item Spec CE121 CE131 CE151 CE181 CE191 DN1 HF10
Mass per unit area (g/m²) 730±35 630±30 550±25 700±35 720±35 750±35 124±60
Mesh size (mm) (8±1)×6±1) (27±2)×(27±2) (74±5)×(74±5) (90±10)×(90±10) (105±10)X(105±10) (10±1)×(10±1) (10±1)×(6±1)
Width(m) 2 or 2.5
Length(m) 50 or 40

Maximum tensile strength

(KN/m)≥

 6.2 5.8 5.0 5.77 6.0 6.0 18
Remark The special spec or size can be manufactured according to the demands of the contract or agreement
