250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration
Specifications
Brand Name :
HUATEC
Model Number :
XXG-H3250GP
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
5days
Packaging Details :
Standard export plywood package
Output voltage :
50-250kv
Output :
50-250KV
Focus spot :
2.5mm
Max penetration :
50mm
Material :
Steel
Radiation angle :
40±5°
Usage :
Industrial X-Ray Testing,weld testing,Industrial x ray testing machine
Power supply :
AC190~265 V/50~60 Hz
Application :
Industrial X-Ray Testing,welding seam detecting
Warranty :
12 Months
Exposure time :
Can continuously work 99 minutes
Controller weight :
9.6kg
Generator size :
ф264x690(DXL)
Generator weight :
20kg
X ray tube :
Ceramic
mA adjustment range :
0.5~3 mA ±0.1mA
Max power :
750W
Duty Circle :
100% at an ambient temperature of 20 ℃
Description

Continuous Exposure Penetrate 50mm 250KV Portable High Frequency X Ray Flaw Detector

General features

*Continuous exposure :at 250kv/3mA conditions

*Wide input voltage range, suitable for various generators, can be used on field

*Lightweight, strong penetration, and stable performance

*The controller adopts a cylindrical design with unique creativity, solid and anti vibration

*The operation interface is intuitive and easy to operate

*High penetration ability: Max.50mm
*High power efficiency, can be 95%,small cable diameter and light weight
*Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent
*Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 50mm due to different expose time setting. Better image clarity
*High frequency design will reduce most of fault because it do not have high voltage coil
*Can work with DR panel image system directly,high resolution image

Technical Specifications

Item Parameters
X ray Generator Weight 20kg
The external dimensions include the end ring ф264x690(DXL)

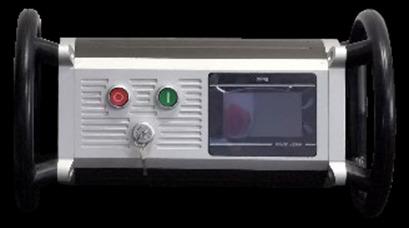

X ray Controller Weight 9.6kg
Dimension Including end ring: ф264x458(mm),excluding end ring: ф188x350 (mm)
Focus Size 2.5mm
Radiation Angle 40°
Maximum penetration (Fe)

50mm(A3)

F=600mm
kV adjustment range 50~250 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 750W
Protect temperature 80℃
Duty Circle 100% at an ambient temperature of 20 ℃
Storage temperature -25°C~ +70°C
Power supply AC85~265V/50~60 Hz

The whole machine features: high frequency, low Ma, continuous work. Wide range hardware design has long life and very low failure rate

Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head

The maximum penetration force: 50mm (F600, D > 2)

Random spare parts

10 core signal connecting cable

2 core power cable

A ground line

A set of Appendage package

The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
