HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity
Specifications
Brand Name :
HUATEC
Model Number :
HR-150DT
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
1pcs
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
500pcs per month
Delivery Time :
4days
Packaging Details :
Standard export plywood package
Sensor :
Electric loading, high precision sensor
Touch screen :
Touch screen 8 inch
Value correction :
automatic correction
Data procession :
HR, HB, HV and other hardness system conversion
Test result :
Test results can be stored, processed and printed automatically
Initial test force :
10kgf(98.07N)
Total test force :
60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale :
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Measurement range :
HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125
Data memory :
Can save 20 different kinds of results, built-in printer and RS-232
Max height of specimen :
200mm
The distance from indenter center to the wall :
160mm
Machine size :
560×200×800mm
Weight :
70kgs
Power :
AC220+5%,50～60Hz
Description

Electric Loading Touch Screen Closed Loop Control System Rockwell Scale Rockwell Testing Tester HR-150DT



Usage Range:

Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.



Main features:


Electric loading with weight, high precision sensor.

  1. Electric loading with weight, high precision sensor.
  2. Touch screen interface, easy operation.
  3. Automatic correction of high, medium and low hardness values.
  4. Built-in hardness value correction of convex cylindrical surface.
  5. Strong data processing function, conversion of hardness value HR, HB, HV and so on, set the qualified range, overrun alarm, you can enter the tester, the sample names and other information.
  6. Test results can be stored, processed and printed automatically.
  7. Meet standards:BSEN 6508, ISO 6508, ASTM E18, GB/T230

Technical Specifications:

Model

HR-150DT

Initial load of Rockwell

10kgf(98.07N)

Total load of Rockwell

60kgf(588N) 100kgf(980N) 150kgf(1471N)

Rockwell Scale

HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV

Hardness testing range

HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125

Dwell time

0-99s

Resolution of hardness value

0.1HR

Load value error

＜0.5%

Hardness reading

LCD display

Screen size

8 inch

Data Storage

Can store 60 kinds of test results, built-in printer, RS-232 interface, optional USB flash disk automatically stored

Conversion Scale

Superficial Rockwell, Brinell, Vickers

Carried Standard

BSEN 6508, ISO 6508, ASTM E18, GB/T230

Max Height of Specimen

200mm

Distance of Indenter to outer wall

160mm

Overall Dimension (mm)

560×200×800mm

Net weight

70kg

Power supply

AC220+5%,50～60Hz

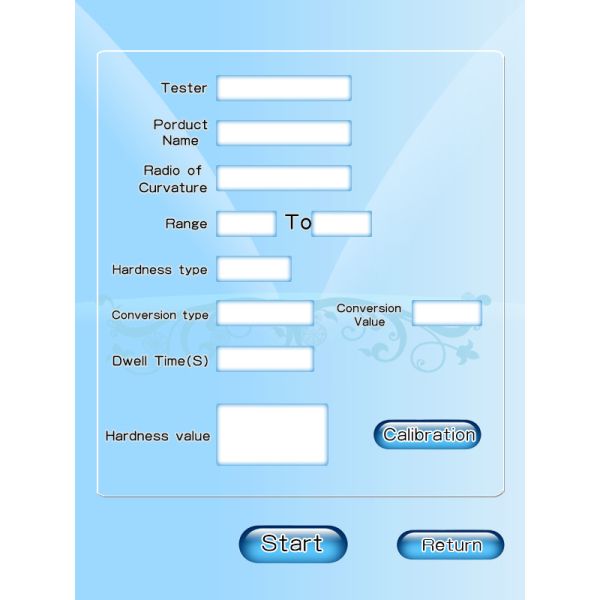

Operation Interface:

HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity

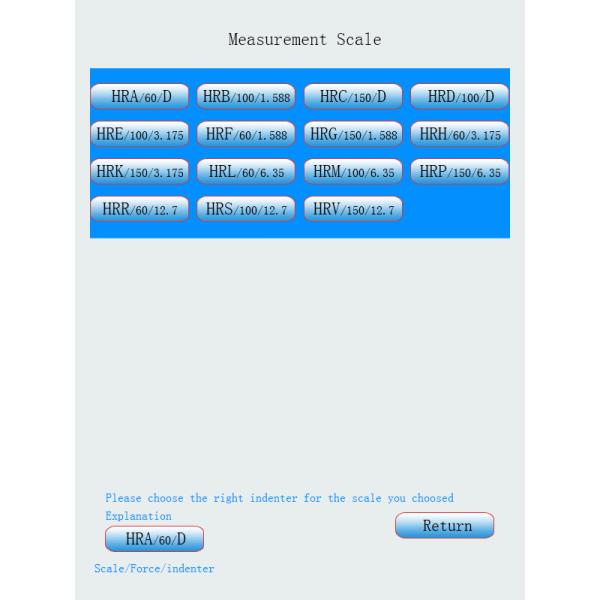

All Rockwell scales, 15 in total


HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity

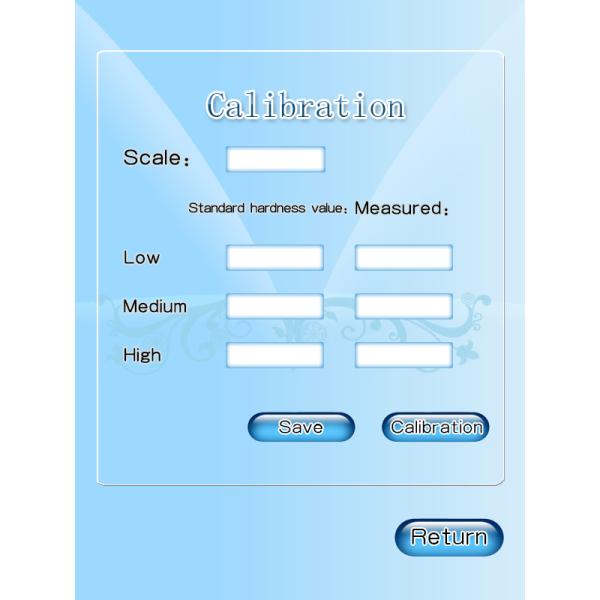

Automatic correction of high, medium and low hardness numbers

HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity

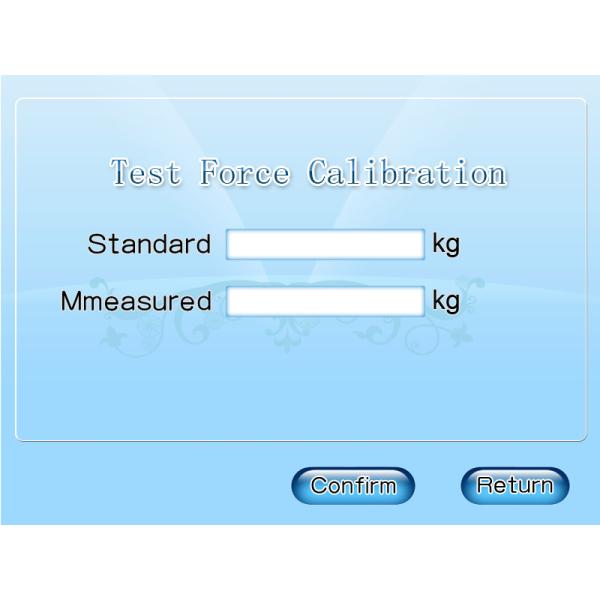

Automatic correction of load

HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity


Standard Accessories:

Name

Quantity

Name

Quantity

Diamond Rockwell Indenter

1

1.5875mm Ball Indenter

1

Hardness block

(HRC High Low 2, HRB 1)

3

Large, Medium, “V” shaped Testing Table

1 each

Weights(A,B,C)

1 each

Dust bag

1

U disk, touch pen

1 each

Regulating screw

4

Power line

1

2A fuse

1

Operation Manual

1

Calibration certificate

1
