TG-1670 Integrated Coating Thickness Gauge for Iron & Aluminium,0-5000micron,Magnetic Induction&Eddy Current
TG-1670 Integrated Coating Thickness Gauge for Iron & Aluminium,0-5000micron,Magnetic Induction&Eddy Current
TG-1670 Integrated Coating Thickness Gauge for Iron & Aluminium,0-5000micron,Magnetic Induction&Eddy Current
TG-1670 Integrated Coating Thickness Gauge for Iron & Aluminium,0-5000micron,Magnetic Induction&Eddy Current
TG-1670 Integrated Coating Thickness Gauge for Iron & Aluminium,0-5000micron,Magnetic Induction&Eddy Current
TG-1670 Integrated Coating Thickness Gauge for Iron & Aluminium,0-5000micron,Magnetic Induction&Eddy Current
Specifications
Supply Ability :
500 per month
Display :
320*170 IPS_LCD display screen
Weight :
85g
System language :
English
Model Number :
TG-1670
Packaging Details :
export standard carton package
Housing Material :
ABS
MOQ :
1pcs
Measurement Mode :
Continuous / Single
Data Memory :
Up to 99 Groups
Auxiliary function :
Auto Power Off, Theme Switching, BacklightAdjustment, Screen Flip, Metric/English Switching
Brand Name :
HUATEC
Delivery Time :
3 working days
Product Type :
Digital Coating Thickness Gauge
Data Transfer :
Bluetooth
Payment Terms :
L/C,T/T
Screen modes :
energy saving,eye protection,standard,outdoor,high brightness
Power Supply :
AAA alkaline battery
Probe tip :
Zirconium oxide
Host Dimensions :
112mm*63mm*29mm
Certification :
ISO CE
Measurement range :
0-5000micron
Measurement Units :
micron/millimeter
Place of Origin :
China
Measurement principle :
Iron: Hall effect / Aluminium: Eddy current
Description

TG-1670 Integrated Coating Thickness Gauge is a portable coating thickness gauge for both iron and aluminium, adopting magnetic induction and eddy current automatic conversion technology. It can automatically identify non-metallic shell, iron powder putty layer and iron galvanised layer. It can quickly, non-destructively and precisely measure the thickness of coating and plating layers, and can be used in both test labs and engineering sites. This instrument is widely used in manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields, is a necessary instrument for material protection.

TG-1670 Integrated Coating Thickness Gauge for Iron & Aluminium,0-5000micron,Magnetic Induction&Eddy Current

Product Features

  • Extra large measuring range: 0-5000μm.
  • Uses both Hall and Eddy Current thickness measurement methods. It can non-destructively measure the thickness of non-magnetic coverings on magnetic metal substrates and the thickness of non-conductive coverings on non-magnetic metal substrates.
  • The instrument supports three measuring principles: Hall, Eddy Current and Automatic.
  • The instrument supports setting single and continuous measurement.
  • There are three viewing modes: Normal, Difference and Maximum Capture.
  • The instrument has a data recording function, which can record 99 groups of measurement values, and can be set in automatic and manual modes.
  • Set the screen brightness with five levels of energy saving, eye protection, standard, outdoor and high brightness. To adapt to the working environment under different light conditions.

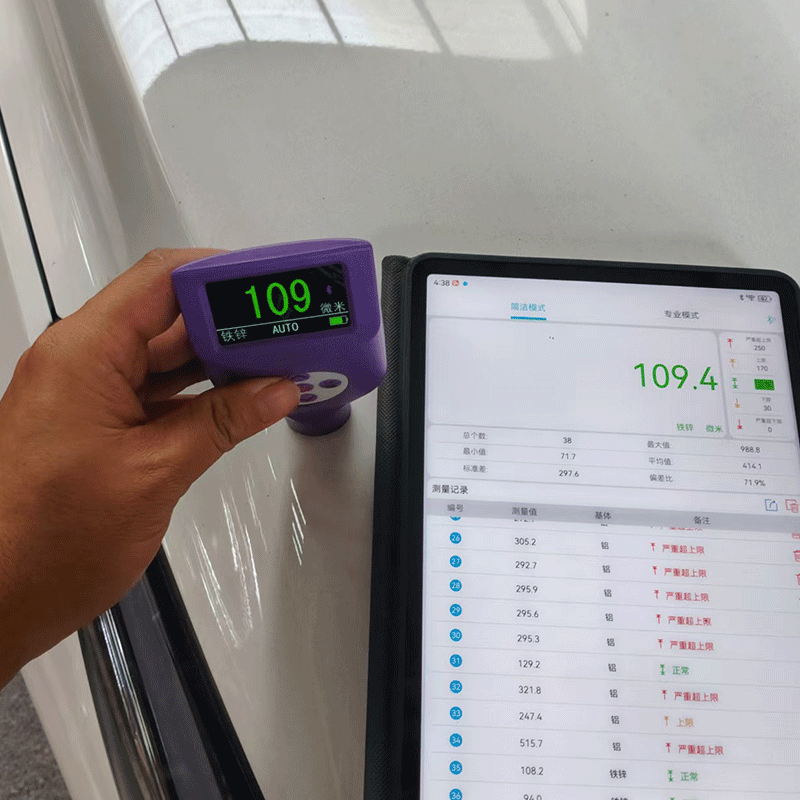

  • The instrument has Bluetooth transmission function.

Basic Parameters

Resolution Auto (0.1μm/1μm/0.01mm)
Measurement range 0.0-5000μm
Measurement accuracy ≤±(3%H+2μm),His standard value
Measurement interval 0.2s
Substrate indication Iron, aluminium, iron zinc, iron powder putty
Minimum measuring area Ø = 25mm
Minimum curvature radius convex:5mm / concave:25mm
Minimum substrate thickness Fe:0.2mm / NFe:0.05mm
Probe type Built-in one piece
Measuring principle Iron: Hall effect / Aluminium: Eddy current
Probe tip Zirconium oxide
View Mode Normal/Maximum/Difference
Measurement mode Continuous / Single
Memory Automatic / manual
Auxiliary function Auto Power Off, Theme Switching, BacklightAdjustment, Screen Flip, Metric/English Switching
Unit Micrometre / Millimetre
Display 320*170 IPS_LCD display screen
Power supply AAAalkaline battery
System language English
Host size 112mm*63mm*29mm
Energy consumption 20mA 60mW
Operating temperature range -20℃−50℃
Storage temperature range -30℃−60℃
Weight (including battery) 85g

Standard Configurations

Host 1
Iron based test block 1
Aluminum based test block 1
AAA alkaline battery 2
Calibration block 1
Manual 1
Certificates of Conformity & Warranty Card 1
