Auto Focus High Temperature Thermometer With DDE Algorithm Low Power Consumption
Auto Focus High Temperature Thermometer With DDE Algorithm Low Power Consumption
Auto Focus High Temperature Thermometer With DDE Algorithm Low Power Consumption
Auto Focus High Temperature Thermometer With DDE Algorithm Low Power Consumption
Specifications
Brand Name :
HUATEC
Model Number :
HIR-4R
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
2 days
Packaging Details :
Standard export package
Display :
With a 5-million pixels visible light camera
Standards :
ISO, DIN, ANSI, JIS
Operation :
3.5 inch touch screen
Focus :
Auto focus
Battery :
Battery life up to 6 hours
Software :
Offline analysis software
Description

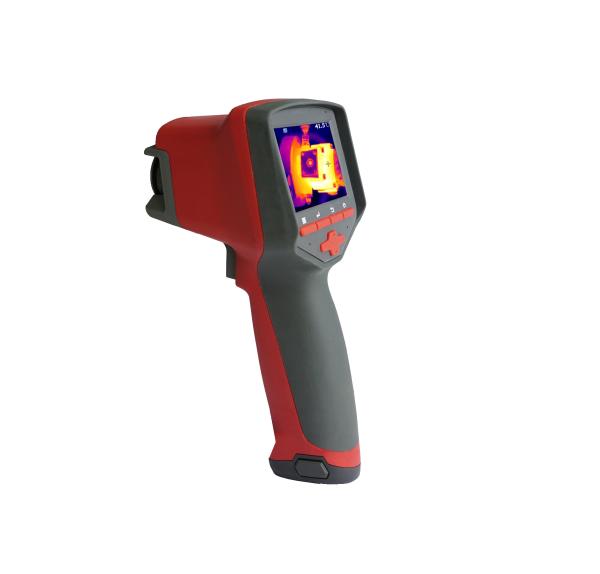

Visible Light Camera Digital Infrared Imager High Temperature Thermometer HIR-4R

Product Features and Advantages

  • State of the art 17μm384*288 microbolometers, superior image quality and thermal sensitivity(<40mk);
  • Low power consumption, no TEC and Heater operation;
  • With a 5-million pixels visible light camera, Precise fusion with infrared images;
  • With DDE algorithm , clearer details and 10 palettes.;
  • 3.5 inch touch screen;
  • Auto focus;
  • Battery life up to 6 hours;
  • Offline analysis software.

Technical Specification

Detector
Detector Type Focal Plane Array, Uncooled Microbolometer
Spectral Band 8~14μm
Pixel Resolution 384×288
Pixel Size 25μm
Maximum Frame Rate 50Hz
Measurement & Imaging Performance
Temperature Ranges To see the“HIR-4R temperature & model index”
Accuracy
Thermal Sensitivity(NETD)
Field of View To see the “HIR-4R optional lens index”
Spatial Resolution
Visible Light Camera 5-million pixels, 62°Field of View
LCD 3.5 inch ,640*480 touch screen
Focusing Manual Focus / Auto Focus
Clear imaging range 0.3m~∞

Background Temperature Correction
Radiance Correction

 Auto Correction by User Background Temperature Input ,0.01~1
Optical Filter/Window Correction Auto Correction by User Transmission Input
Display mode Full infrared, full visible, picture in picture, fusion (proportional adjustable), color warning
Temperature Measurement Mode Real Time Central Temperature Display,high and low temperature tracking,User Defined Line/Probes of Interest
Automatic Alarming User Defined Alarming Threshold
Frame Freeze Supported
Image Enhancement Detail Enhancement Technology
Palettes 10 Palettes: including Grayscale, Grayscale inverted, Ironbow, Hot metal, etc.
Digital Zoom 2X,4X
Data Storage
TF card 32GB
Temperature data storage Self defined MGT format, dealing with offline software Thermoscope
Video Storage H.264
Report Generation Word format with user guide
Voice Annotation 60 seconds
Text Annotation Supported
Environmental parameters
Operating Temperature -30~60℃,to see the next page
Storage Temperature -40~80℃
Humidity ≤85%(Non-condensing)
Enclosure rating IP54
Shock 25G,IEC68-2-29
Shake 2G,IEC68-2-6
Electromagnetic Compatibility Comply with CE/FCC standards
Others
Real-time temperature data transmission Ethernet(Optional)
Video Output PAL/NTSC(Optional)
Image And Video Export USB interface or card reader
Laser Indication Yes
External Power Supply DC 12V
Battery Rechargeable lithium battery
Dimension 148mm(L)×99mm(W)×247mm(H)
Weight 0.6kg(Include 25mm auto len)

HIR-4R temperature & model index

Model Temperature range NETD Accuracy Environment temperature Note
HIR-4R -20~150℃ <60 mK 2℃or 2% -10~50℃ Conventional type
HIR-4R3 -20~300℃ <100 mK 2℃or 2% -10~50℃ Medium temperature type
HIR-4R5 0~500℃ 150mK 2℃or 2% 0~50℃ High temperature type
HIR-4R10 150~1000℃ 2% 0~50℃ High temperature type
HIR-4R16 250~1600℃ 2% 0~50℃ High temperature type
Please contact us for the rest temperature range.

HIR-4R optional lens index

Focus FOV Spatial resolution Human detection/recognition/recognition distance Vehicle detection distance
15mm 26o×20o 1.13 mrad 540m/140m/70m 1100m
25mm 15o×11.3o 0.68 mrad 850m/210m/110m 1700m
50mm(Use double mirror) 7.5o×5.6o 0.34 mrad 1500m/380m/190m 2800m
Please contact us for the rest FOV
