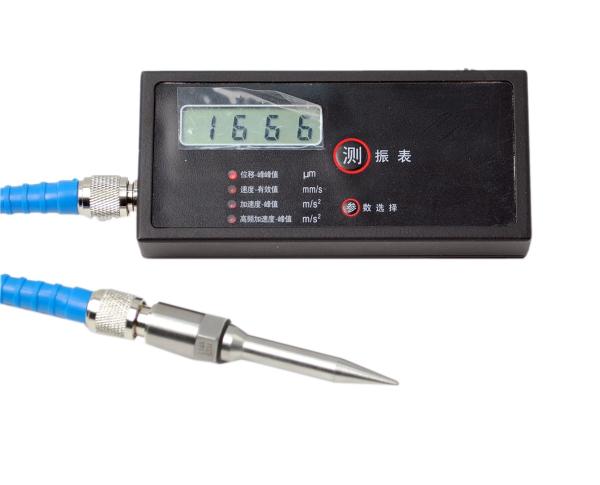

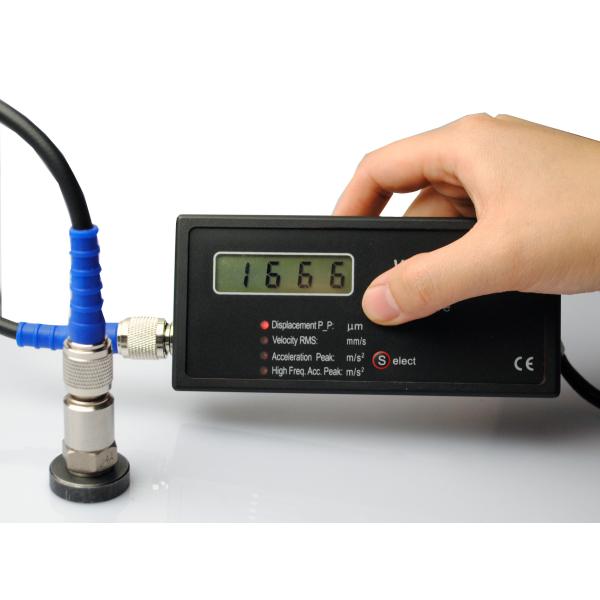

Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement
Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement
Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement
Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement
Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement
Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement
Specifications
Brand Name :
HUATEC
Model Number :
HG908
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1-4days
Packaging Details :
Standard export package
Overall accuracy :
±5%
Temperature range :
0 - 50C
High Frequency Acceleration :
1000-5000Hz 10%
Battery :
9V 6F22/Rechargeable, 25/10 hours of continuous operation
Pickup :
Accelerometer with handheld probe and/or magnetic mount
Dimensions :
13×6×2.3 cm
Weight :
200 g
Description

Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement HG908

Features:

Small size, transducer included,

True RMS measurement.
Measuring parameters: vibration velocity, displacement,acceleration and high-frequency acceleration
Battery powered,

Accelerometer may be integrated or external cable connected.
One button control both power and measurement.Very easy to use.
3 1/2 LCD digital display, sampling per second.
Holding function.
Automatic power off.
Suitable for monitoring machinery vibration caused by imbalance,misalignment, gear & bearing faults and etc.

Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , DisplacementPortable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement


Specifications:
Testing ranges:
Displacement 1—1999 m m (or 200 mil) Eq. peak-peak
Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS
Acceleration 0.1—199.9 m/s2 (or 20 g) Eq. Peak
High Frequency Acceleration: 0.1—199.9 m/s2 (or 20 g) Eq. Peak
Overall accuracy: ±5%
Temperature range: 0 - 50C
Frequency response:
Displacement 10-1000Hz

Velocity 10-1000Hz

Acceleration 10-1000Hz (908B) 105000Hz (908)
High Frequency Acceleration: 1000-5000Hz 10%


Configuration:
HG908: Separate accelerometer with magnetic mount & probe, long needle probe
Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
Pickup: Accelerometer with handheld probe and/or magnetic mount
Dimensions: 13×6×2.3 cm; Weight: 200 g
Optional Intrinsically safe version with internal accelerometer

Portable Vibration Tester True RMS Measurement Measuring Vibration Velocity , Displacement
