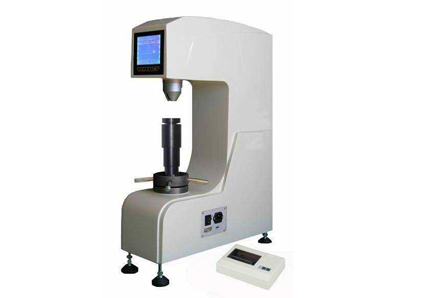

Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Rockwell Hardness Tester HR1500
Specifications
Place of Origin :
Beijing
Brand Name :
HUATEC
Model Number :
HR1500
MOQ :
1pcs
Packaging Details :
Standard export package
Delivery Time :
1-4days
Payment Terms :
T/T, Paypal, Western Union
Certification :
ISO, CE, GOST
Supply Ability :
500pcs per month
Description
· HR1500 can be used directly to measure Rockwell hardness for metal and plastic material.
· Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
· Automatic test force switch according the selected scale without manual operation.
· Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
· Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.
· The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.
· Test value can be transformed to the value of HB, HV, HLD, HK and σb value.
· The tester meets all the following standard such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.
· Preload:98.1N (10kgf)
· Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
· Scales:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
· Load cycle: 3～8s
· Load dwell duration: 2～50s, can be set
· Resolution :0.1HR
· Display:High definition backlight LCD
· Operation:Menu selectable, Membrane keypad
· Upper/lower limits setting & alarming
· Data statistics: Avg., Max., Min., S, R available
· Curved surface correcting automatically
· Memory: Max 500 items of test results stored automatically
· Data output: RS-232 to micro printer, USB port to external PC
· Testing space:200mm in vertical, 165mm in horizontal
· Dimensions: 550mm×200mm×720mm
· Power supply: AC, 220V/110V, 50～60Hz, 4A
· Net weight: 100kg

Standard configuration

Host machine

1

Standard hardness block for A scale

1

Standard hardness block for B scale

1

Standard hardness block for C scale

1

ball indenter (1/16″)

1

120°cone diamond indenter

1

Mounting screws for indenter

2

Flat anvil

1

“V ”shape anvil

1

Power supply wire

1

Screwdriver for indenter mounting

1

Dust cover

1

Optional accessories:

Short diamond indenter

Chisel diamond indenter

Slender diamond indenter

1/8″ball indenter and spare steel ball

1/4″ball indenter and spare steel ball

1/2″ball indenter and spare steel ball

φ225 anvil

φ150 anvil

Standard hardness block for other scales

Micro printer(for model HR1500)
