Specifications
Place of Origin :
China, GuangdongChina
Technical parameters :
KV1100
Size :
89*42.5*33mm
Remote Control Peripherals/Devices :
Remote Controller
Certification :
ce
Four-wheel Drive Attributes :
Battery
Brand Name :
CUAV
compatible brand :
CUAV
Use :
Vehicles Remote Control Toys
MOQ :
1 piece
Price :
$65-159 / piece
Upgrade Parts/Accessories :
Flight controller
Material :
Metal
private mold :
Yes
RC Parts Accs :
Speed controller
Gender :
Unisex
Description
Product Features
RC Parts & AccsSpeed controller
Size89*42.5*33mm
UseVehicles & Remote Control Toys
MaterialMetal
place of originGuangdong,China
GenderUnisex
Certificationce
Remote Control Peripherals/DevicesRemote Controller
brand nameCUAV
Upgrade Parts/AccessoriesFlight controller
Technical parametersKV1100
private moldYes
Four-wheel Drive AttributesBattery
CUAV CAN PDB Open Source Drone Controller Board Pixhawk Flight Control Board RC Helicopter Control Board for Ardupilot PX4
Product Description
Cuav Can Pdb Open Source Drone Controller Board Pixhawk Flight Rc Helicopter for Ardupilot Px4
CAN PMU Power Module Feature:
-- 0.05V 0.1A accuracy
-- 5V/5A regulated output
-- Maximum support 62V voltage input, 110A current
-- measurement
-- Self-developed ITT algorithm
Introducing:
CAN PMU is a drone power management module with built-in STM32F4 processor; running CUAV ITT compensation
algorithm, can accurately measure the voltage and current of the drone; support 6~62V voltage input, and the POWER port
can output 5V/ 8A. It uses advanced CAN bus communication and supports the standard DroneCAN protocol; each PMU uses factory-level calibration to ensure good consistency and high accuracy.
Main Parameter
MCU
STM32F412(32 Bit Arm Cortex-M4, 100MHz, 512KB FLASH, 256KB RAM)
Operating Voltage
14 ~ 62V(4 ~ 15S Lipo)
Detection Current Range
0 ~ 110A
Output Power(MAX)
6000W(last 120s)
Stable Output Power(MAX)
5500W
Core
V5 / X7 / X7 Pro CORE
Frame Type
Plane/VTOL/Copter/Heli/Rover/Sub
Controller Firmware
ArduPilot 4.0.0 and above firmware
PX4 1.11.0 and above firmware
Operating Temperature
-20 ~ 100°C

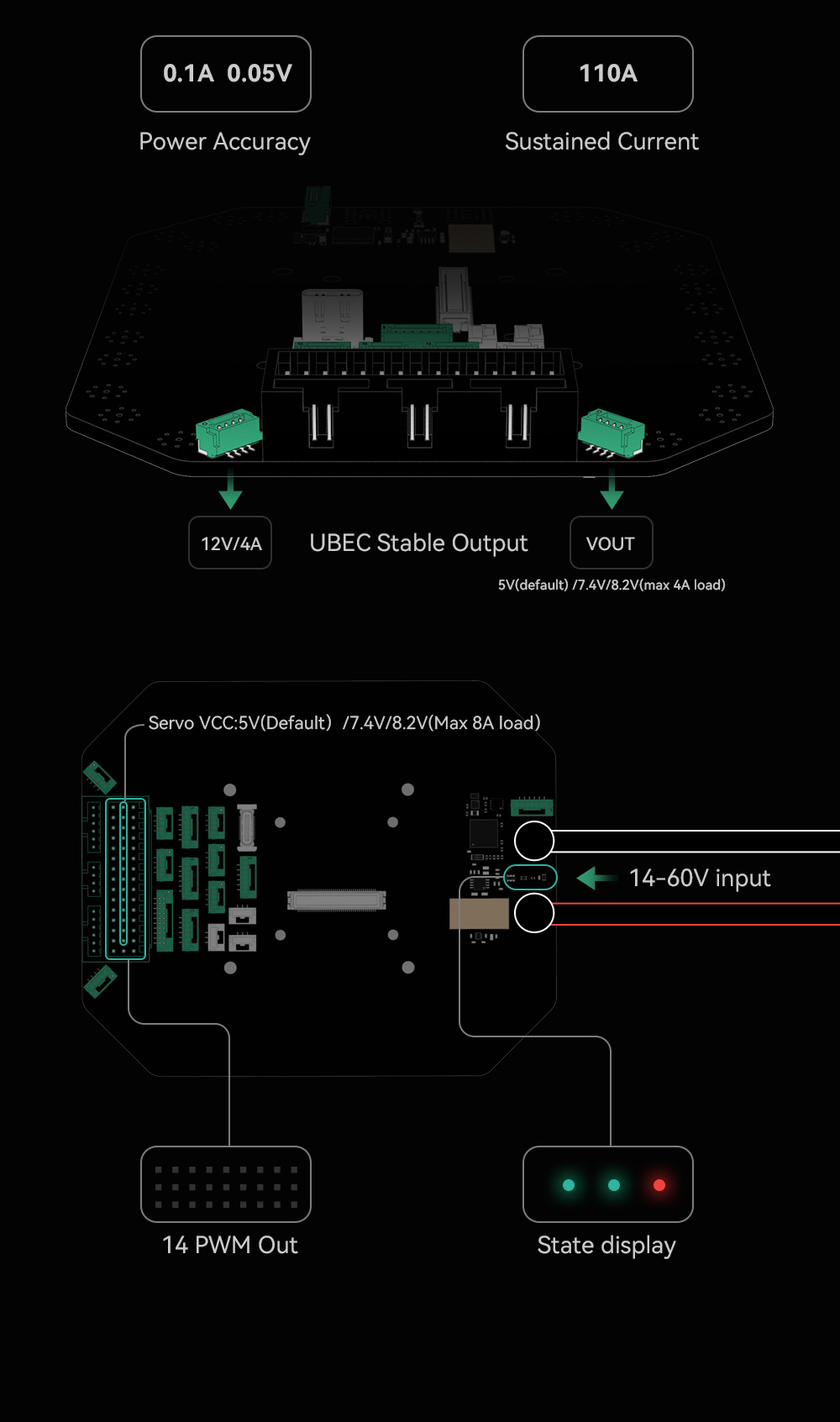

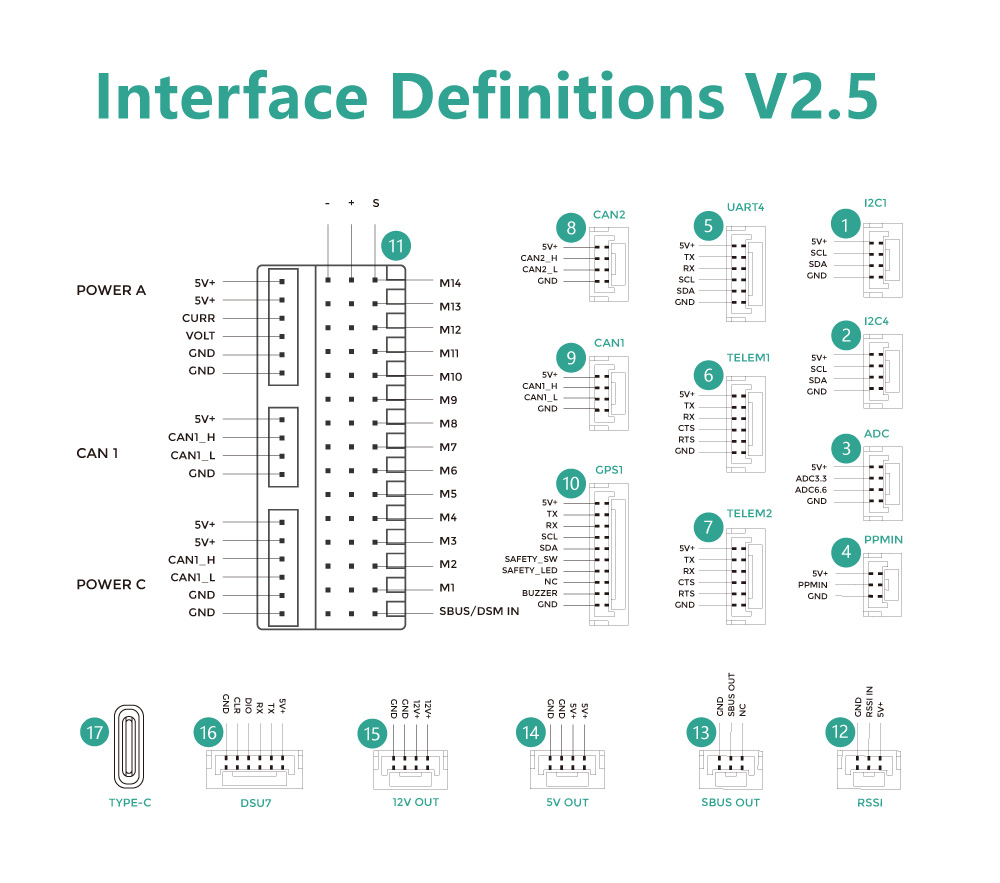

Interface
V_OUT
5V(default)/7.4V/8.2V(4A)

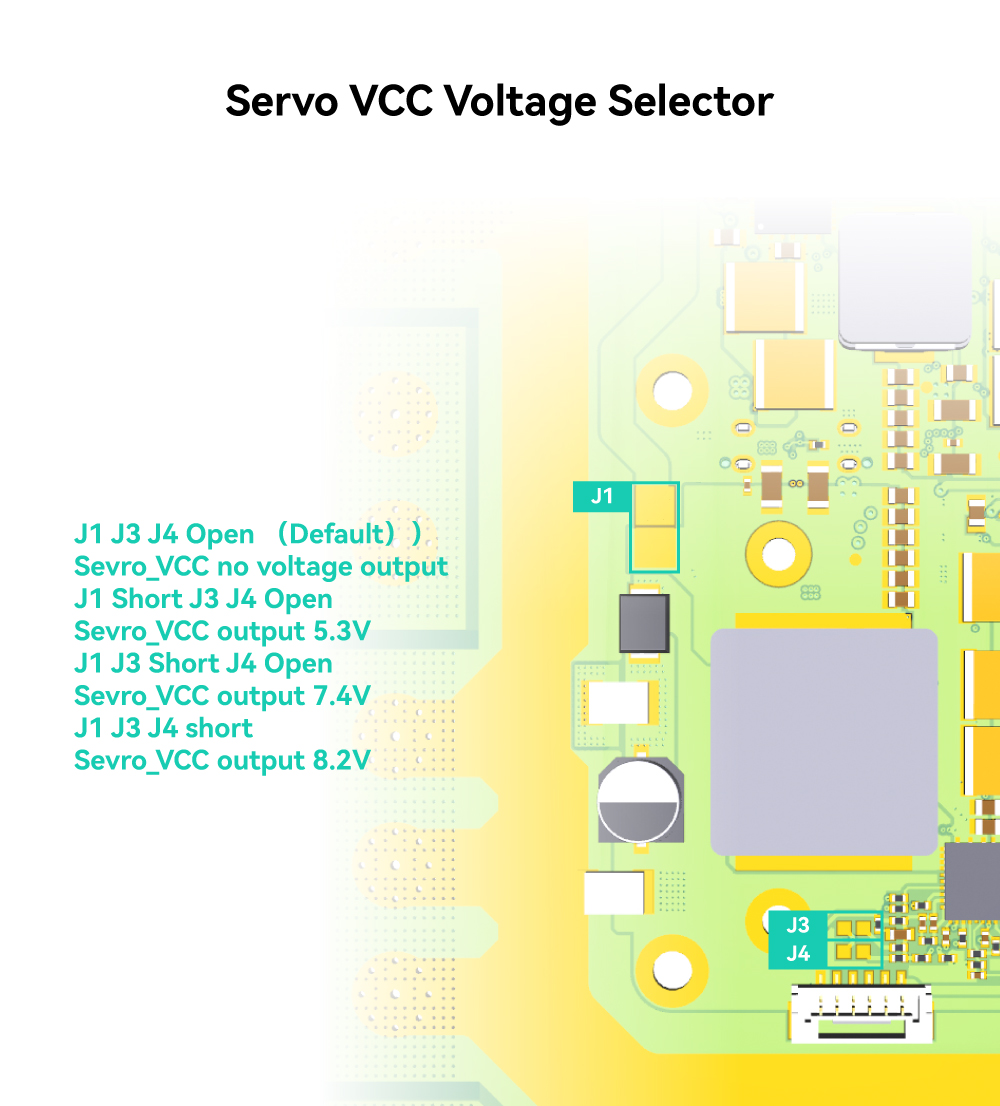

Servo VCC
5V(default)/7.4V/8.2V(8A)
12V OUT
4A(max)
USB
1
UART1
5(GPS/UART4/TELEM1/TELEM2/DEBUG)
CAN
2
I2C
3
SBUS/DSM IN
1
PPM IN
1
Servo
14
ADC3.3
1
ADC6.6
1
SBUS Outs
1(This interface is invalid when using X7 /X7 pro core)
RSSI
3.3V(Analog input)
DSU7
1

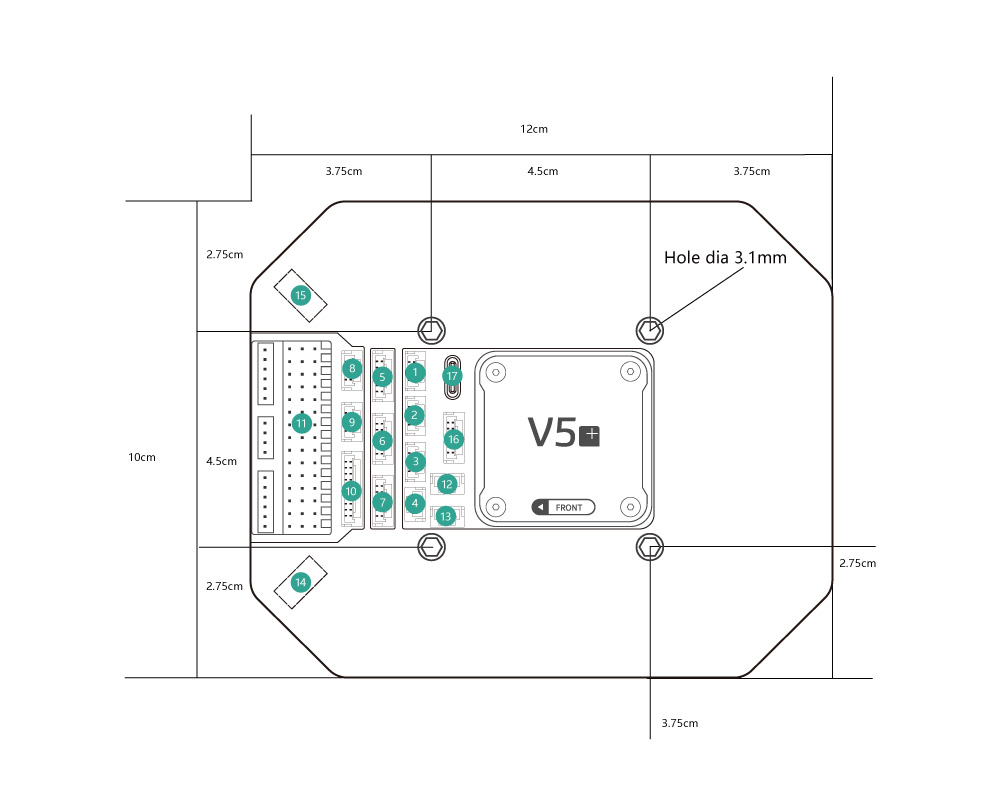

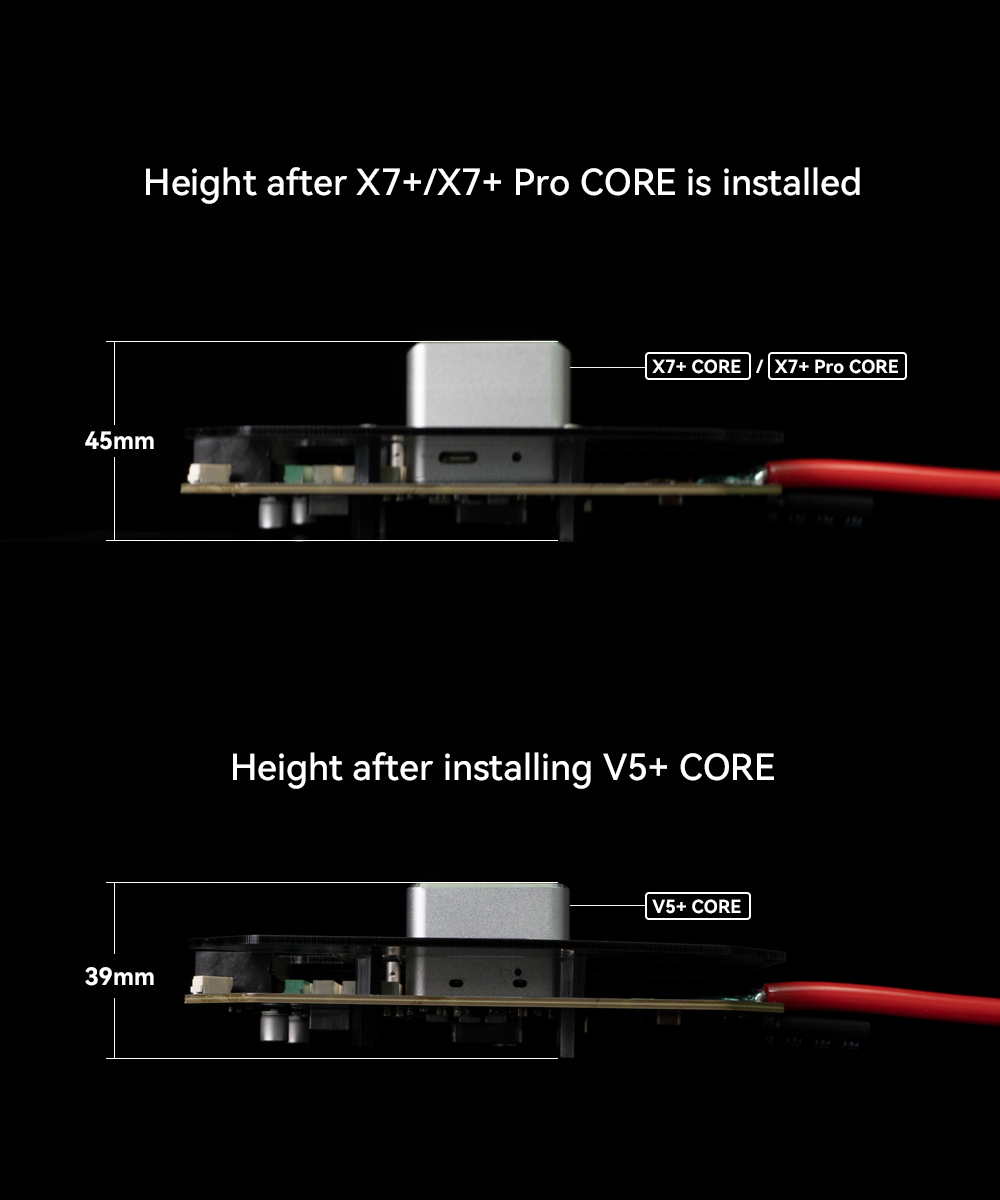

Size
12.8cm (length) * 10.0cm (width) *1.2cm (height)
Weight
200g (including cable)
Wire Length
30cm
