Specifications
Application :
UAV Drone Helicopter Airplane Vtol Multi-rotor Dro
Price :
$1,299.90 / set
Protocol :
DRONE CAN UAV CAN CUBE CAN
Recommended Ambienttemperature :
-30°C50°C
Place of Origin :
China, China
Max. Thrust/Arm :
75.8kg
Max. Voltage :
100V
Recommended Battery :
2024S LiPo
Material :
Aluminum, Carbon Fiber
private mold :
Yes
Control Method :
PWMCAN
Brand Name :
T-motor
compatible brand :
T-MOTOR
Rated Thrust :
3035kg
Tube size :
50 mm
MOQ :
1 set
Description
Product Features
Control MethodPWMCAN
MaterialAluminum Carbon Fiber
Max. Thrust/Arm75.8kg
place of originChina
Rated Thrust3035kg
Tube size50 mm
brand nameT-motor
Recommended Battery2024S LiPo
Max. Voltage100V
private moldYes
ProtocolDRONE CAN UAV CAN CUBE CAN
Recommended Ambienttemperature-30°C50°C
ApplicationUAV Drone Helicopter Airplane Vtol Multi-rotor Drone
IP GradeIPX6
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless DC Electric Motor for Big Drones Accessory
Product Description
Note:
We are the Official & Factory Supplier. OEM & ODM are workable.
Pls feel free to contact us for discount price or wholesales order.

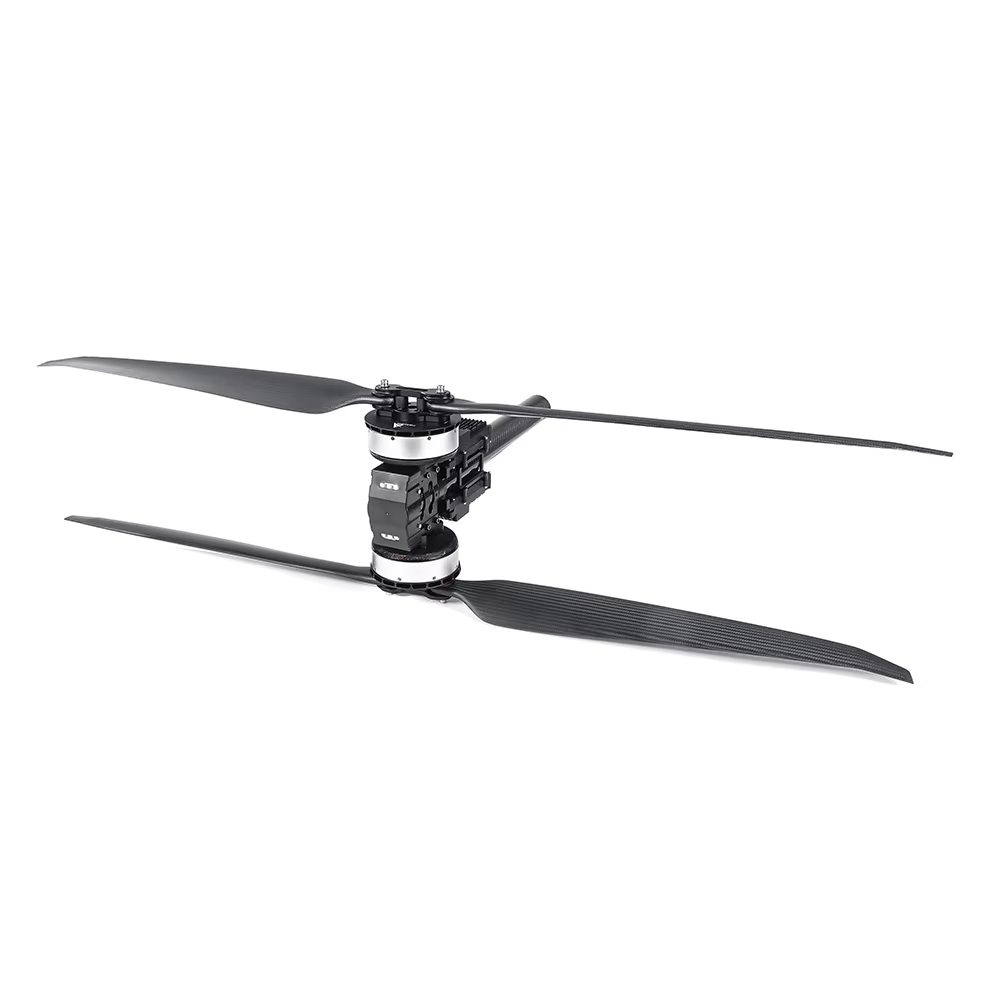

X-A12XL 24S for 100~120kg coaxial multirotor drones
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory

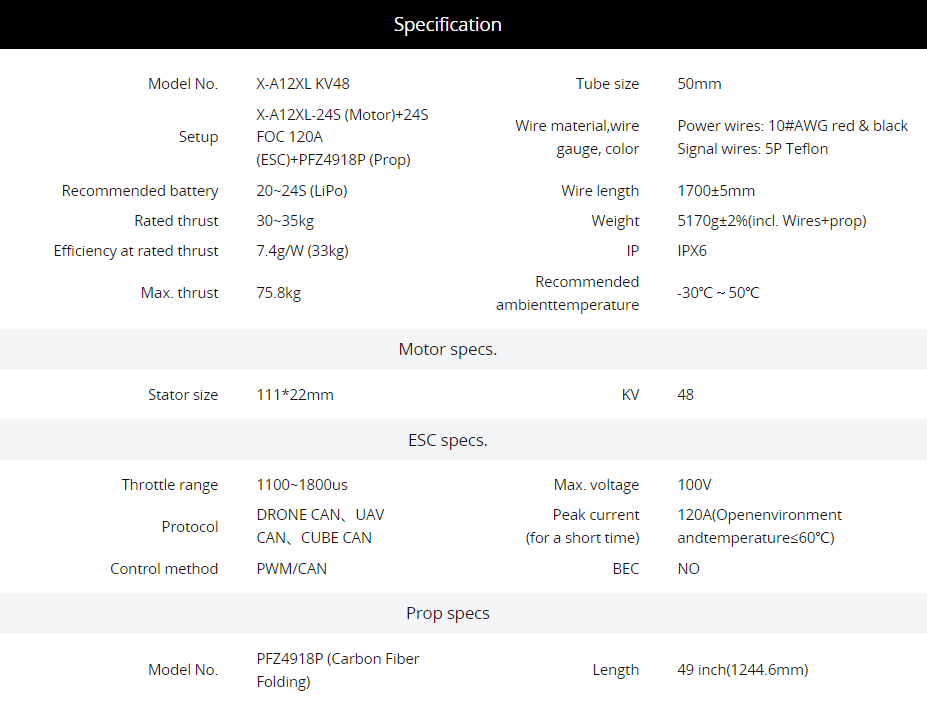

Recommended battery
20~24S (LiPo)
Rated thrust
30~35kg

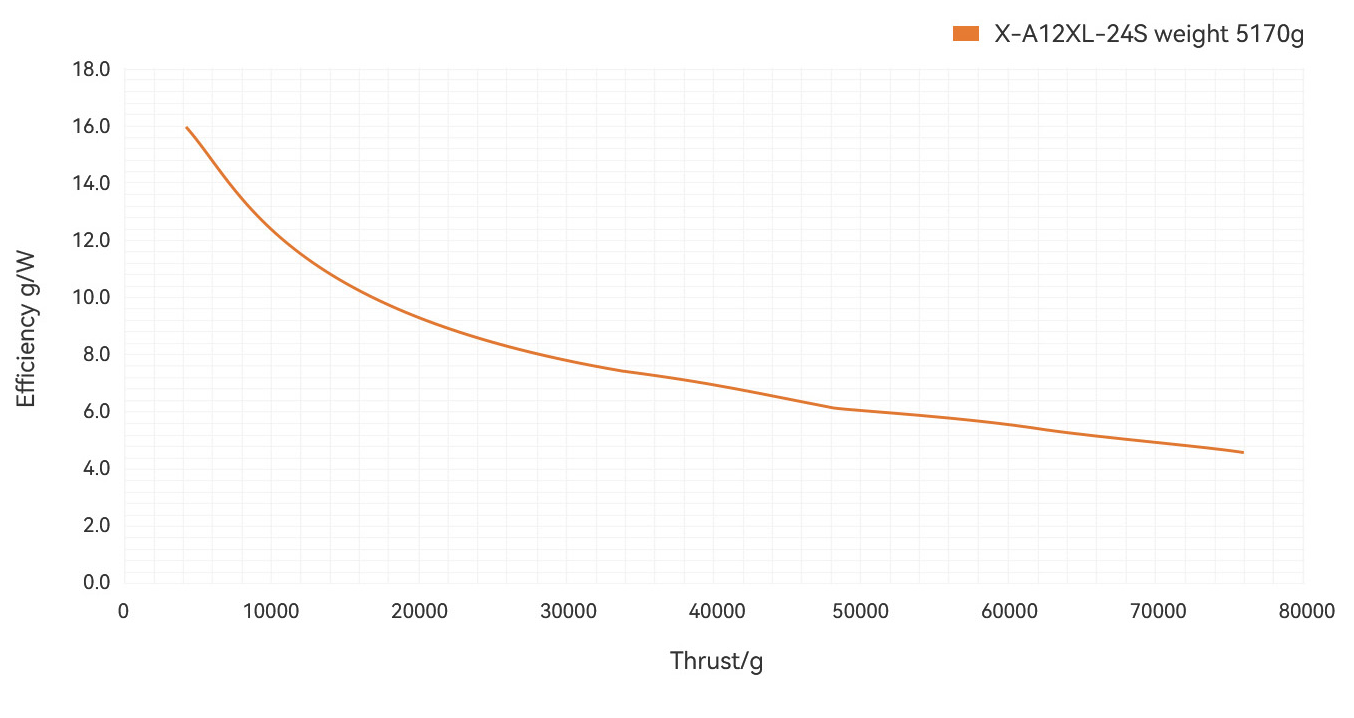

Efficiency at rated thrust
7.4g/W (33kg)
Max. thrust
75.8kg
Tube size
50mm
Weight
5170g (incl. Wires prop)
IP
IPX6
Throttle range
1100~1800us
Control method
PWM/CAN
Max. voltage
100V
Peak current
120A
BEC
NO

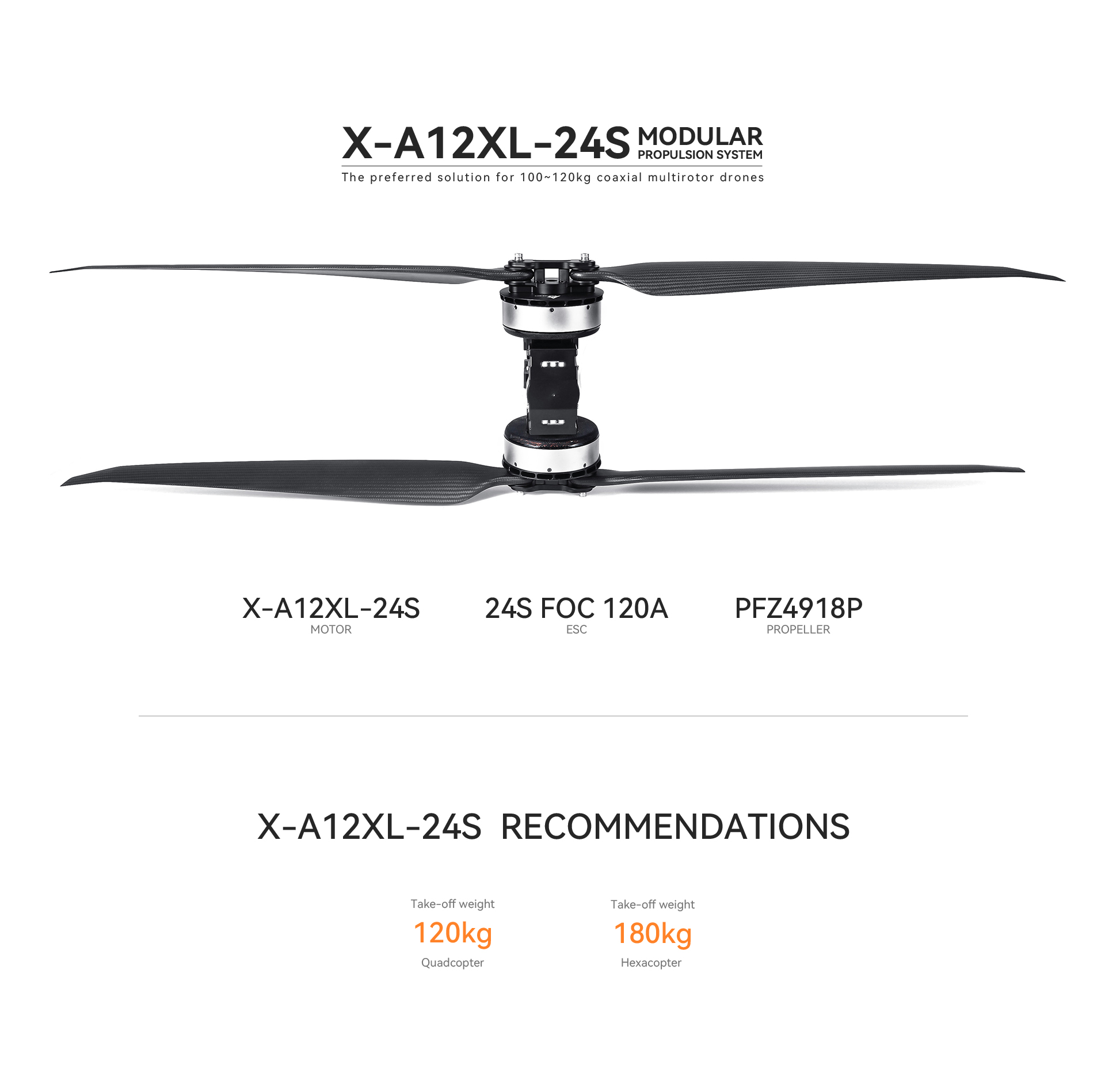

- Rated thrust/arm: 30~35kg
-Take-off weight: 120KG (Quadcopter)
-Take-off weight: 180kg (Hexacopter)
- Recommendation: 100~120kg coaxial multirotor drones
- System weight (incl. prop): 5170g
- Battery: 20~24S (LiPo)

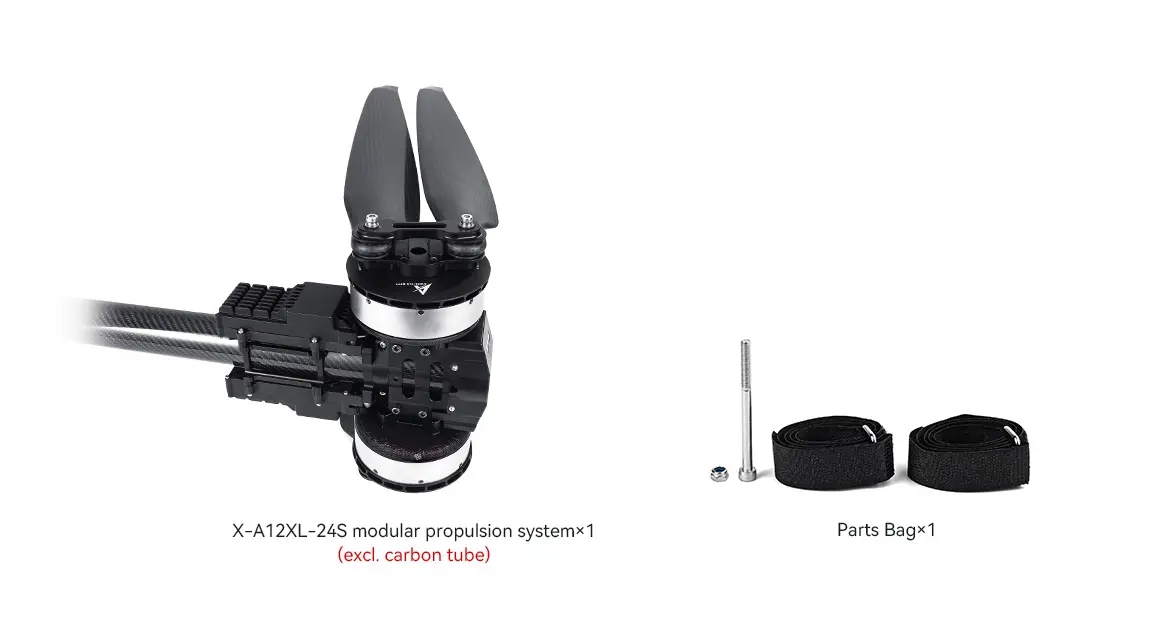

- Propulsion system: X-A12XL-24S Motor 24S FOC 120A ESC PFZ4918P Prop
- Tube size: 50mm
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
Company Profile


Our Factory

T-MOTOR, set up in 2004, a leading international trading company, specializing in designing and producing high-performance brushless motors, electronic speed controllers (ESCs), propellers, and integrated propulsion packages for multi-rotor, fixed-wing, and vertical take-off and landing (VTOL) drones, with over 20 Manufacturer Experience/ 300 Authorized Patents/1600 Employees/100% Full lnspection.


Exhibitions & Customers

"With an extensive exhibition portfolio across 50 international trade shows annually, we demonstrate unparalleled industry capabilities."
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
Manufacturing Technique


Production Line

T-MOTOR, As a globally recognized leader in UAV propulsion systems, integrating cutting-edge R&D, precision manufacturing, andagile distribution to deliver mission-critical power solutions for unmanned aerial vehicles. Our company have over 30 production line for uav drone motors, propeller, and ESC, over 1600 empolyees, guarantee the fastest delivery time and the highest product quality.


Automated Production Equipment

Our factory is equipped with cutting-edge manufacturing systems designed for precision, efficiency, and scalability. Automated Production Lines, IoT-Enabled Machinery, CNC Machining Centers, Smart Manufacturing Integration, Energy-Efficient Technologies, Modular Design Flexibility. Welcome to visit our factory anytime.


High-End Test Euipments

Advanced High-End Testing Equipment for Drone Component Production. Our cutting-edge testing systems redefine precision and reliability in drone accessory manufacturing. Engineered with industry-leading technologies, these high-performance solutions ensure rigorous quality validation for critical components, including propulsion systems, flight controllers, batteries, and sensors. Certified to AS9100D and ISO 17804 standards, our systems are the benchmark for aerospace-grade quality assurance. Trusted by Tier 1 OEMs, these solutions accelerate throughput while eliminating costly recalls. Elevate Your Production Line with Uncompromising Excellence.


Our Warehouse

"Never worry about supply - our expansive warehouse is always fully stocked"
* "50,000-square-foot warehouse with 98% inventory fulfillment rate"
* "Over 1 million SKUs stored in our state-of-the-art distribution center"
Certifications


Our Certificates

"Certified Excellence" - Proven by industry-leading credentials. "Globally Recognized Certifications" - Our adherence to strict standards is validated by [list key certificates], meeting global market requirements.
Package & Payment Terms
In general, we will ship by DHL/UPS express(3 to 7 working days). You can also contact us if you have your own forwarder.
T-MOTOR X-A12XL KV48 24S Lipo IPX6 High Power Brushless Motor for Big Drones Accessory
FAQ
Q: Are you factory supplier?
A: Yes, we are factory supplier with over 20 years experience, welcome to our factory anytime.

Q: What's the delivery time for my order?
A: In general, all our products are in stock, we will arrange shipment within 1 to 3 working days after payment by DHL or UPS Express(3 to 7 working days).

Q: What payment terms are available?
A: TT/Paypal/Credit Card

Q: What's your product warranty time?
A: One year free return if product problems.

Q:Do you accept custom service?
A: Yes, of course. Leave me message or contact me online if you have any requirements.
