Specifications
Material :
Plastic
Place of Origin :
China, Guangdong China
MOQ :
1 piece
Telemetry Power :
100mw
Type :
Radio Systems
RF connector :
IPEX-1 X 2
Use :
Vehicles & Remote Control Toys
Item :
XR4 Gemini Xrossband Dual-Band Receiver
RF chip :
LR1121 x 2
Brand Name :
RadioMaster
Price :
$17.68-28.46 / piece
Model Number :
RM-XR4-ELRS
Age Range :
14 Years & up
Webaite :
www.lxrcmodel.com
Gender :
Unisex
Antenna :
Dual-Band T Antenna x 2 (Included)
MCU :
ESP32D4
Description
Product Features
Place of Origin Guangdong, China
Age Range 14 Years & up
Use Vehicles & Remote Control Toys
Webaite www.lxrcmodel.com
Material Plastic
Gender Unisex
Model Number RM-XR4-ELRS
Brand Name RadioMaster
Item XR4 Gemini Xrossband Dual-Band Receiver
Type Radio Systems
RF connector IPEX-1 X 2
Telemetry Power 100mw
RF chip LR1121 x 2
MCU ESP32D4
Antenna Dual-Band T Antenna x 2 (Included)
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
Features

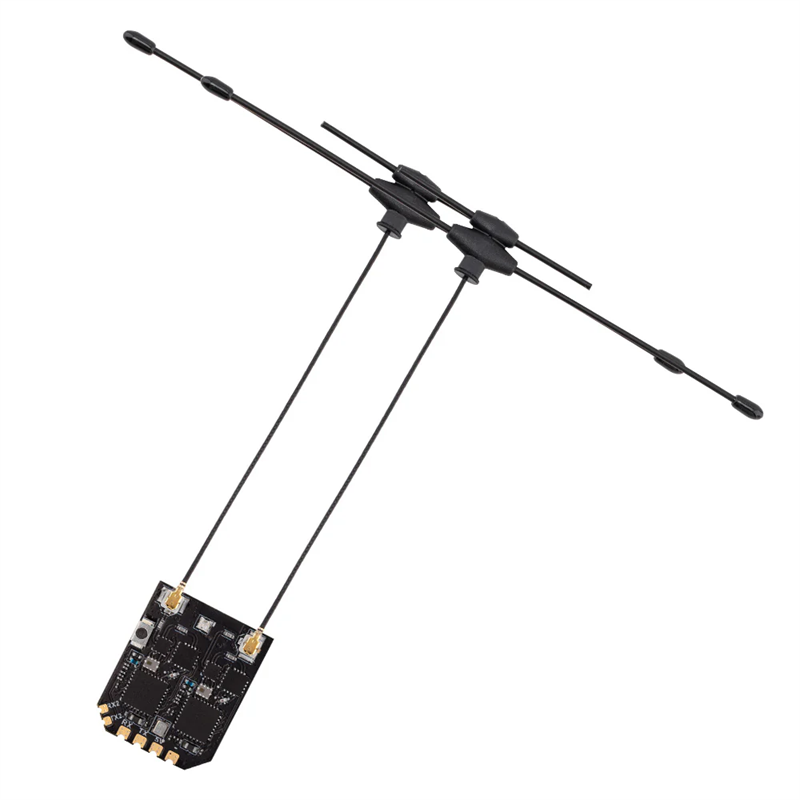

Introducing the XR4 XrossBand Receiver - The Pinnacle of compact Dual-Band Performance

The XR4 Receiver is a cutting-edge true diversity dual-band receiver featuring dual LR1121 RF transceivers, designed to leverage the advanced ExpressLRS Gemini Xrossband protocol (Gem-X). It seamlessly supports both the 2.4GHz and Sub-G 900MHz bands, and its dual T-type antennas provide superior reception sensitivity and connection stability for optimal performance.

Built with two independent RF circuits, the XR4 offers versatile operation modes, allowing you to switch between Gemini
single-frequency or Xrossband dual-band modes, and can be tailored to your specific needs. The integrated Wi-Fi module simplifies firmware updates and configuration via a user-friendly WebUI on your PC or mobile device.

With ultra-low latency and a high refresh rate, the XR4 excels in delivering a stable, rock-solid RF link, even in demanding
long-range or challenging environments. Its compact, lightweight design is perfect for drones, and fixed-wing models, offering reliable connectivity in critical situations where every signal matters. The XR4 ensures you maintain the most secure and robust RF link available, providing unbeatable reliability in the most demanding conditions
* True Diversity & Dual-Band

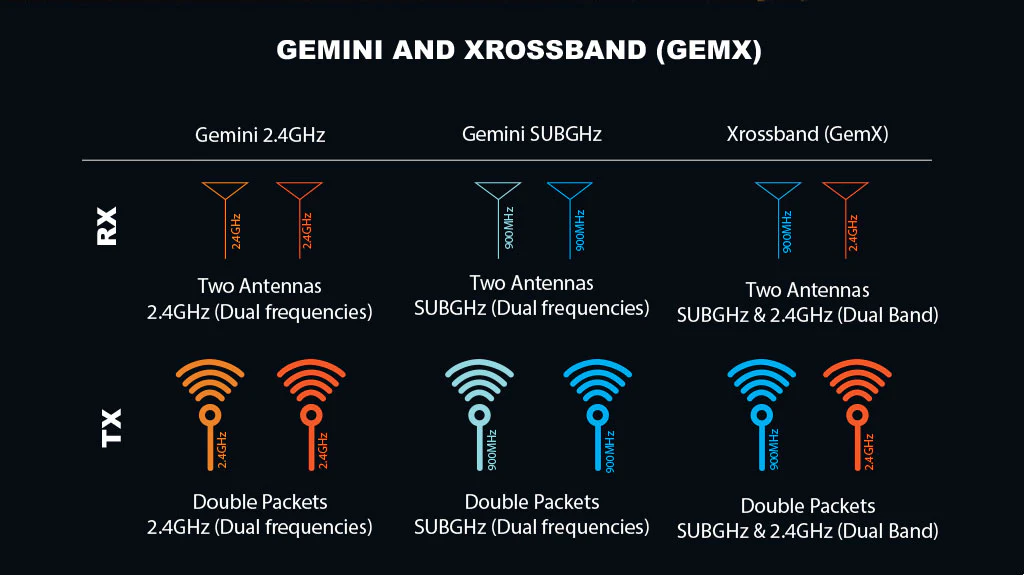

* Unmatched reliability with ExpressLRS Gemini Xrossband

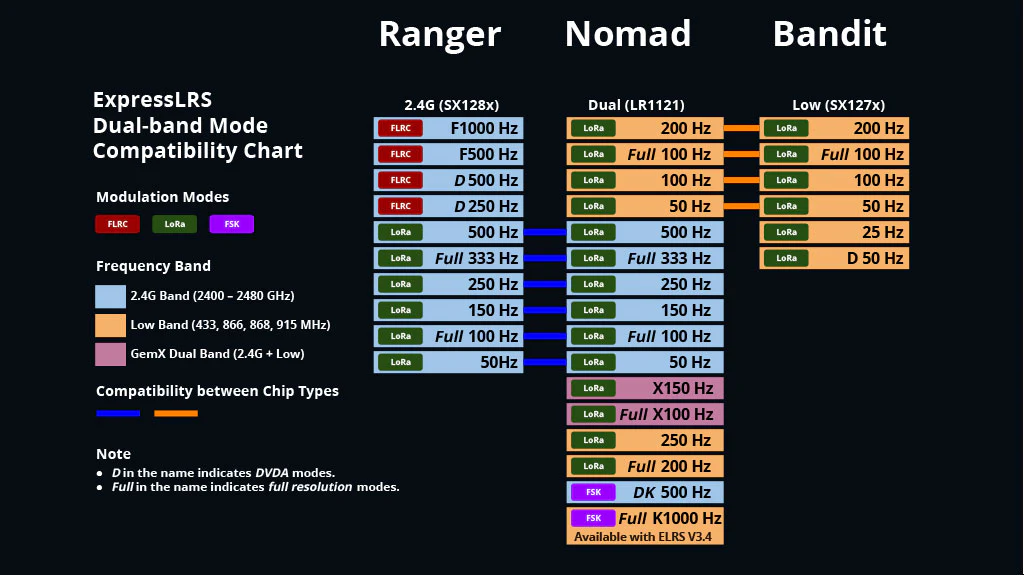

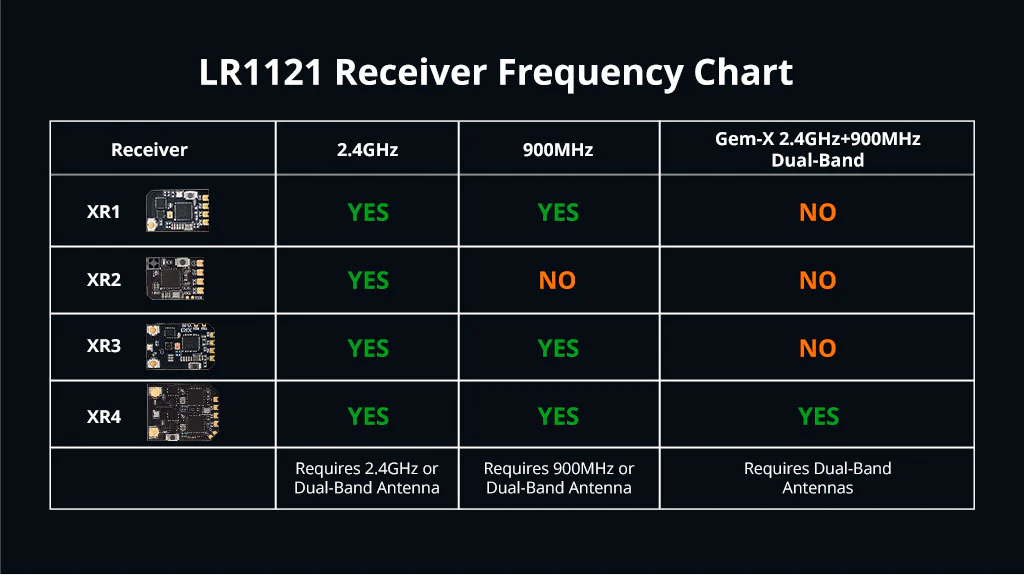

* Compatible with ExpressLRS 2.4GHz, Sub-G 900MHz, Gemini & Gemini Xrossband (Gem-X)
* ESP32D4 high-performance MCU
* Twin Semtech LR1121 Transceiver

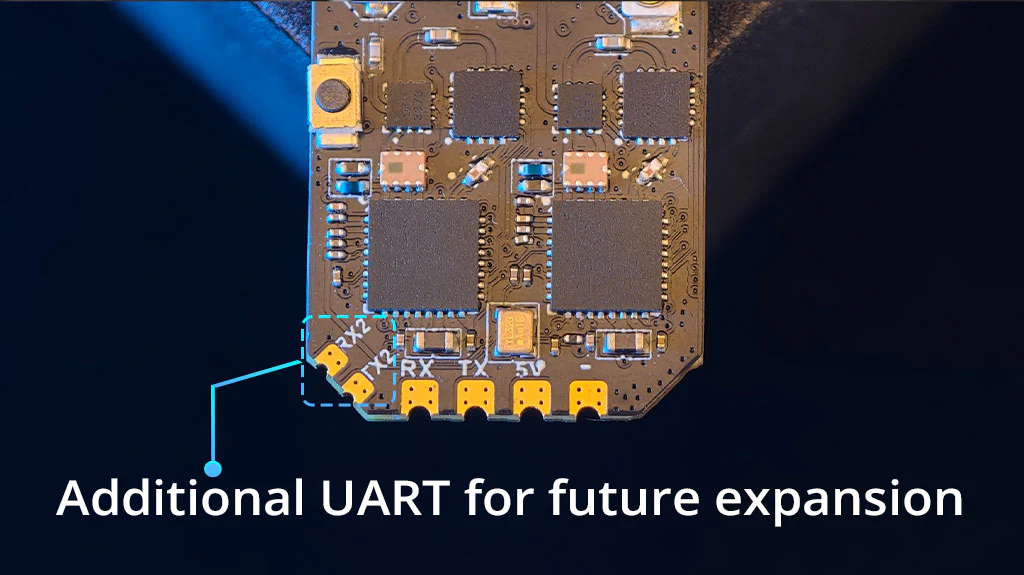

* Secondary UART port for advanced functionality
* Castled pads for easy soldering
Product Description
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver RadioMaster Plastic System
Specification
Item
XR4 Gemini Xrossband Dual - Band Receiver
MCU
ESP32D4
RF Chip
LR1121 x 2
RF connector
IPEX - 1 X 2
Antenna
Dual - Band T Antenna x 2 (Included)
Frequency Range
2.4GHz / Sub - G 900MHz
Telemetry Power
100mw
Maximum receive refresh rate
DK500Hz / K1000Hz
Minimum receiver refresh rate
50Hz
Working voltage
DC 4.5 - 8.4V

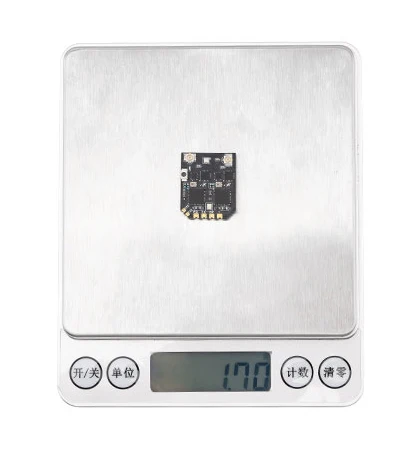

Weight
1.7g (without antenna)

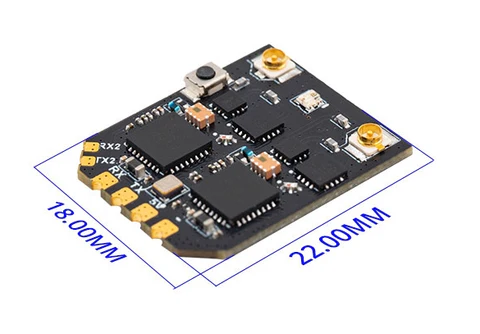

Dimension
22mm * 18mm * 4mm
Firmware Version
ExpressLRS v3.5.1 pre - installed
FW Target
RadioMaster XR4 2.4/900 Gemini RX
Bus interface 1
CRSF
Bus interface 2
UART

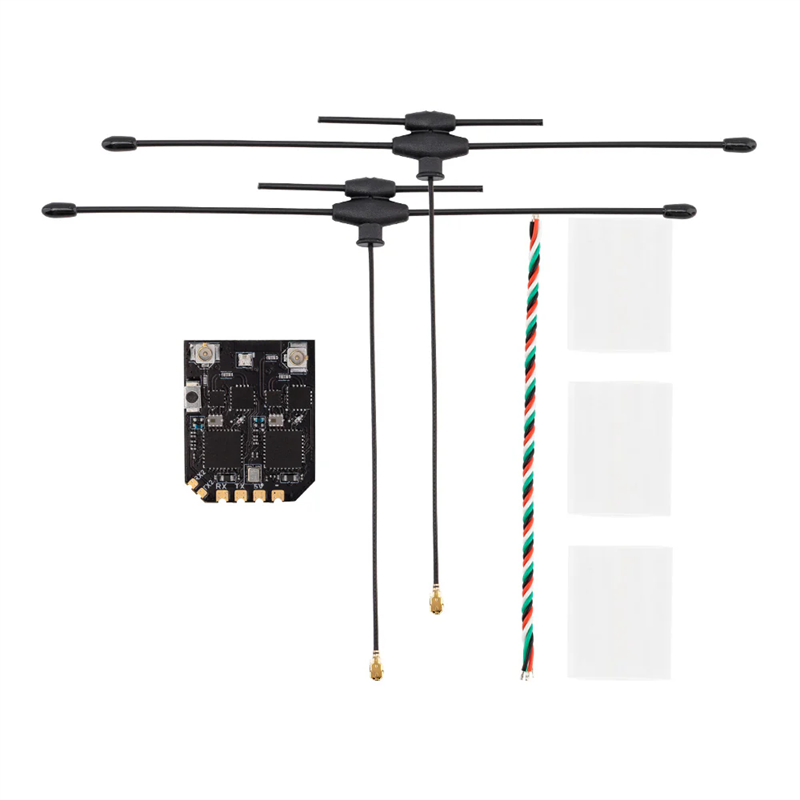

Packing & Delivery
1 * XR4 Gemini Xrossband Dual-Band Receiver
2 * Dual-Band T-Antenna
1 * CRSF Wire
3 * Heat-Shrinkable Tube
1 * Manual Card
