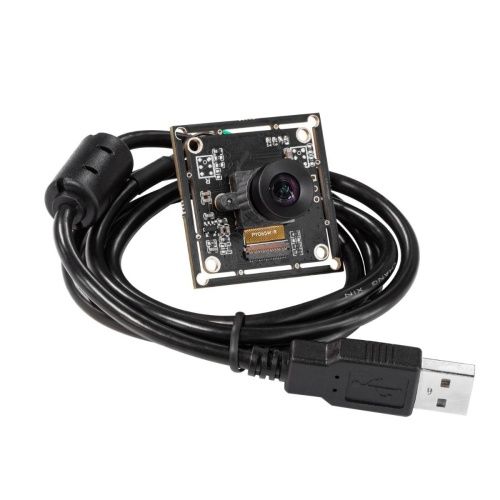

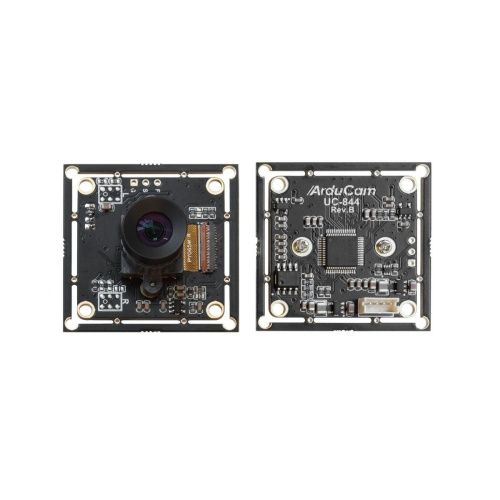

Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Arducam B0332 1MP OV9281 UVC Webcam Module 100fps Shutter USB Camera Board With Low Distortion M12 Lens
Specifications
Gender :
Unisex
Model Number :
Arducam-OV9281
Type :
RC Drone Spare Parts
Use :
Vehicles & Remote Control Toys
Place of Origin :
China, Guangdong China
Price :
$59.11-78.32 / piece
Age Range :
0 to 24 Months
Brand Name :
Feixiang
Material :
Metal, Plastic
MOQ :
10 pieces
Description
Product Features
Type RC Drone Spare Parts
Place of Origin Guangdong, China
Use Vehicles & Remote Control Toys
Material Metal, Plastic
Gender Unisex
Model Number Arducam-OV9281
Features
Based on 1MP monochrome (black&white) global shutter sensor OV9281, assembled with a 70°(H) low distortion M12 lens without IR
pass filter, sensitive to IR.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate
complete picture than the rolling shutter cameras. Reserved external trigger ports, and support trigger via external signal.
Resolution: 1MP 1280H x 800V;
Frame Rates: MJPG 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.

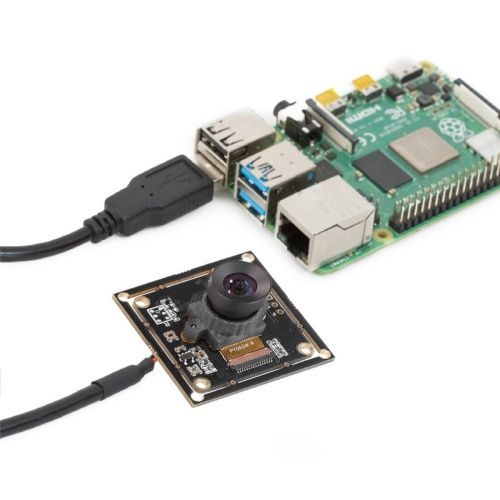

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable
without extra drivers to be installed.
Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any
application that needs gesture and eye tracking, iris and physiognomy recognition, and depth and motion detection.
Serial Number: Supports modifying the Serial Number.
Product Detail
Model:Arducam B0332
Camera
Sensor: 1/4 OV9281
Resolution: 1MP 1280 x 800
Data Format: MJPG/YUY2
Frame Rate: MJPG 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.
Lens
Field of View (FOV):70 degree (H)
Lens Mount: M12
IR Sensitivity: No IR-CUT filter, sensitive to IR
Focusing Range: 3.3ft (1M) to infinity
Functionality and Compatibility
Adjustable parameter: Contrast/ Saturation/ Exposure/ White Balance
System Compatibility: Windows, Linux, Mac, and OS with UVC driver
Power
Power Supply: USB powered 5V
Working Current: MAX 200mA
Physical
Operating Temp.: -4°F~158°F (-20°C~ 70°C).

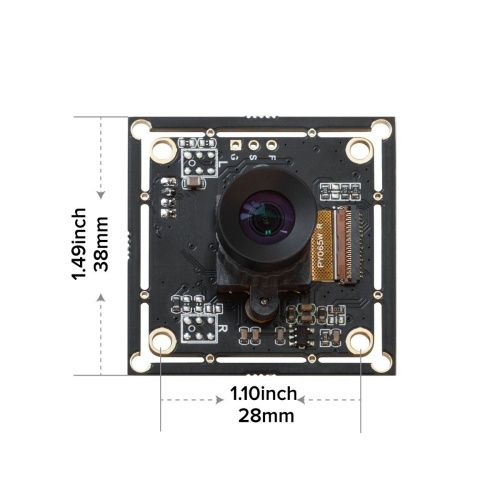

Dimension: 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm)
Cable Length: 3.3ft (1M)
Item Packing
Arducam B0332 Camera Board x1
