Specifications
compatible brand :
Others
Place of Origin :
China, Guangdong China
Material :
Plastic
Brand Name :
Holybro
MOQ :
1 piece
Price :
$96.80-192 / piece
private mold :
No
Description
Product Features
brand name Holybro
private mold No
Material Plastic
place of origin Guangdong, China
Holybro SiK Telemetry Radio 1W 915MHz 50 Kilometres Range Small Light Open-source Radio Platform for FPV Drone Accessories
Holybro SiK Telemetry Radio 1W 915MHz 50 Kilometres Range Small Light Open-Source Platform For FPV Drone Accessories
Holybro SiK Telemetry Radio 1W 915MHz 50 Kilometres Range Small Light Open-Source Platform For FPV Drone Accessories
SiK Telemetry Radio 100mW
SiK Telemetry Radio 500mW
SiK Telemetry Radio 1W
Max RF Power
20 dBm
27 dBm
30 dBm
Receive sensitivity
-121 dbm @2kbps RF Data Rate, -105 dbm @64kbps RF Data Rate
Line-of-sight range
300~500m (2dBi Antenna)
~ 1km (2dBi Antenna)
~ 50km (5dBi Antenna)
Antenna Gain
2dBi
5dBi
RF Data Rates
2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps
Serial Interface Data Rate
1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps
Frequency Band
902MHz - 928MHz or 414MHz - 460MHz
Interference Immunity
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Address Options
Network ID: 0 -255
Channels
Up to 50 Frequency Hopping Channels
Supported Network Topologies
Point-to-point
Configuration Method
MissionPlanner or AT Commands
Data Framing
Standard or MAVLink protocol framing
Error correction
Corrects up to 25% of bit errors with open-source SIK firmware
Serial Data Connector & Interface
6-pin JST-GH connector, 3.3V-TTL
USB
Micro-USB
Type-C
SMA Connector
RP-SMA female
Power Connector
NA
XT30
Operating Temperature
40~85°C
Dimension
28 x 53 x 10.7mm (without antenna)
66.5 x 32 x 16.5mm (without antenna)
Weight
23.5g w/ antenna
67g w/ antenna
Input Voltage (DC)
5V
7~28V
* 2-way full-duplex communication through adaptive TDM UART interface
* Transparent serial link
* MAVLink protocol framing
* Built in FT230X/FT231 USB to BASIC UART conversion IC

Electrical Data
 * Supply voltage: 7~28V DC via XT30
* Transmit current: 12V/400mA at 30 dBm
* Receive current: 12V/30mA
* Serial interface: 3.3 V UART


Overview

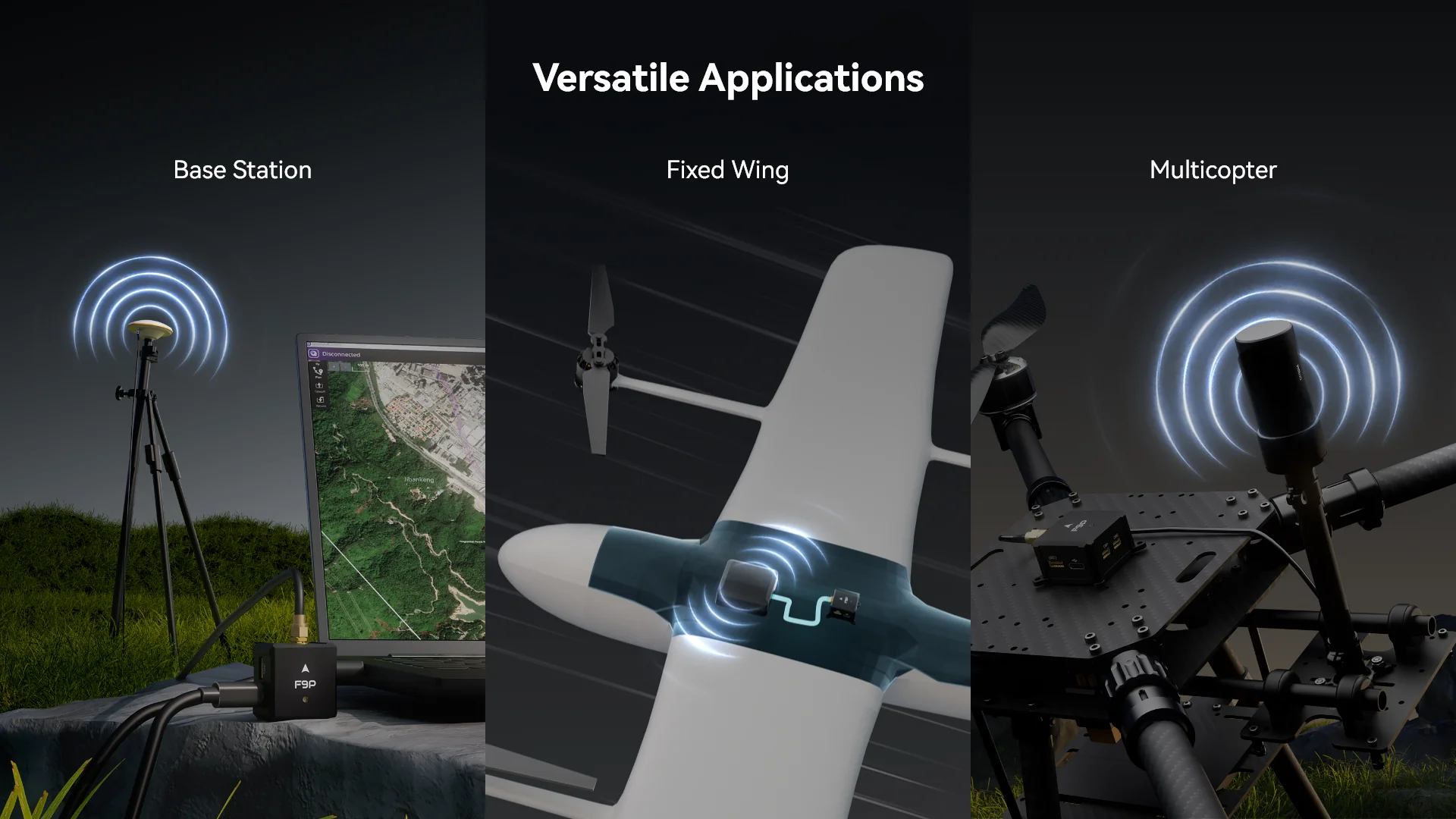

 This Holybro SiK 1W Telemetry Radio is a small, light, and inexpensive open-source radio platform with a maximum 50 kilometres range (outdoors, line-of-sight range).
This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your Autopilot and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4 Autopilot.

The radios are available in 915 MHz or 433 MHz versions. Please purchase the model that is appropriate for your country/region.


Features
* Open-source SIK firmware
* Plug-n-play for Pixhawk Standard Flight Controllers
* 1W maximum RF output
* The Easiest way to connect your Autopilot and Ground Station
* Interchangeable air and ground radio
* 6-position JST-GH connector
