Specifications
Max star :
Single : 28 + RTK:50 +
Place of Origin :
China, GuangdongChina
Processor :
STM32F4
Channels :
1408 channels
Brand Name :
CUAV
private mold :
Yes
Data refresh rate :
5Hz (default); Max 20Hz
MOQ :
2 pieces
GNSS :
BDS/GPS/GLONASS/Galileo/QZSS
Positioning speed :
Cold start 30s/auxiliary start 5s
Price :
$215-269 / piece
Weight :
40g
Sensor :
Compass - RM3100 Grro/ACC - ICM42688
Material :
Metal
Data format :
RTCM3.X
compatible brand :
CUAV
Description
Product Features
Data formatRTCM3.X
ProcessorSTM32F4
GNSSBDS/GPS/GLONASS/Galileo/QZSS
Positioning speedCold start 30s/auxiliary start 5s
MaterialMetal
place of originGuangdong,China
Channels1408 channels
Weight40g
brand nameCUAV
private moldYes
Max starSingle : 28 + RTK:50 +
Data refresh rate5Hz (default); Max 20Hz
SensorCompass - RM3100 Grro/ACC - ICM42688
Estimate yaw accuracy0.2 degrees/1m (distance between antenna 1 and antenna 2)
CUAV C-RTK 2HP GNSS RTK Receiver and Antenna Professional Survey Drone RTK System for Precision Mapping Applications
Product Description
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
C-RTK 2HP RTK Module Feature:

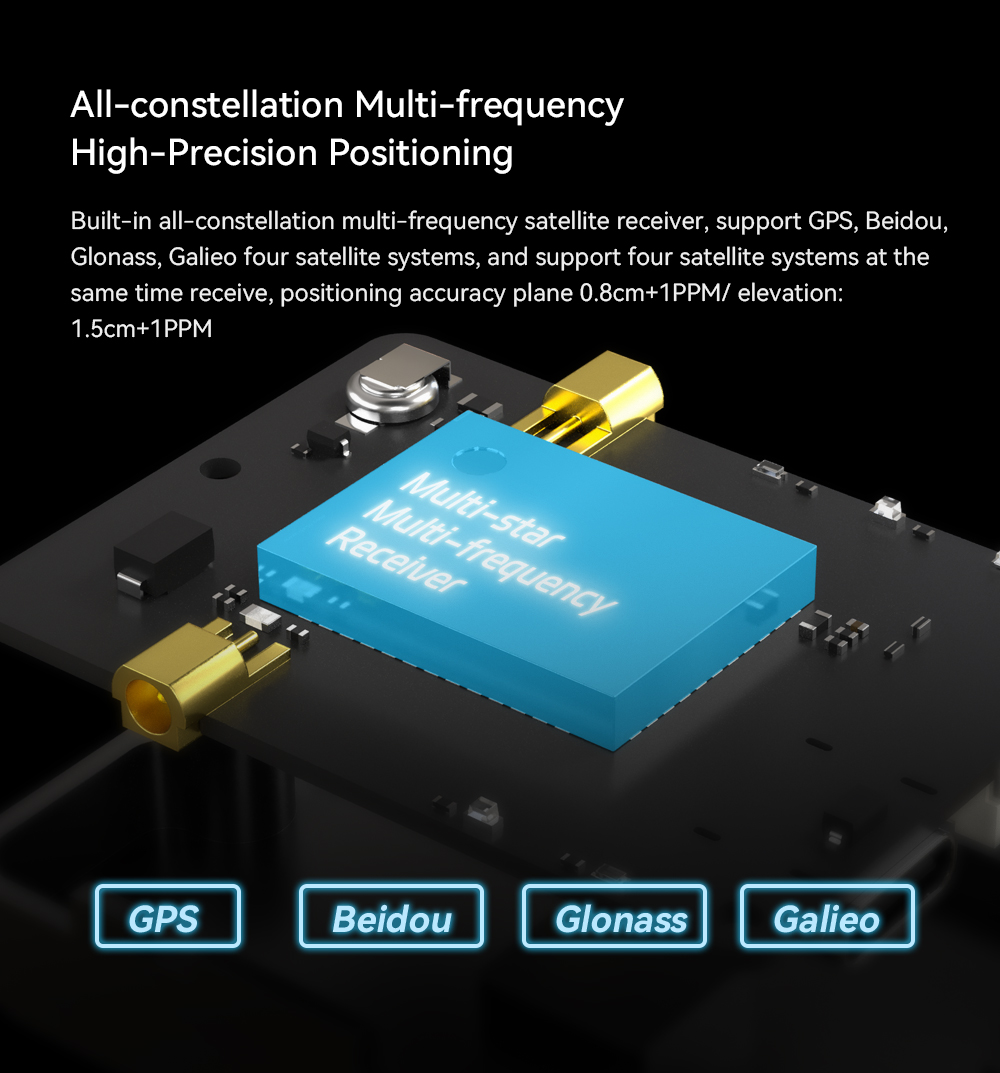

1-- All-satellite multi-frequency receiver
2-- Centimeter-level positioning

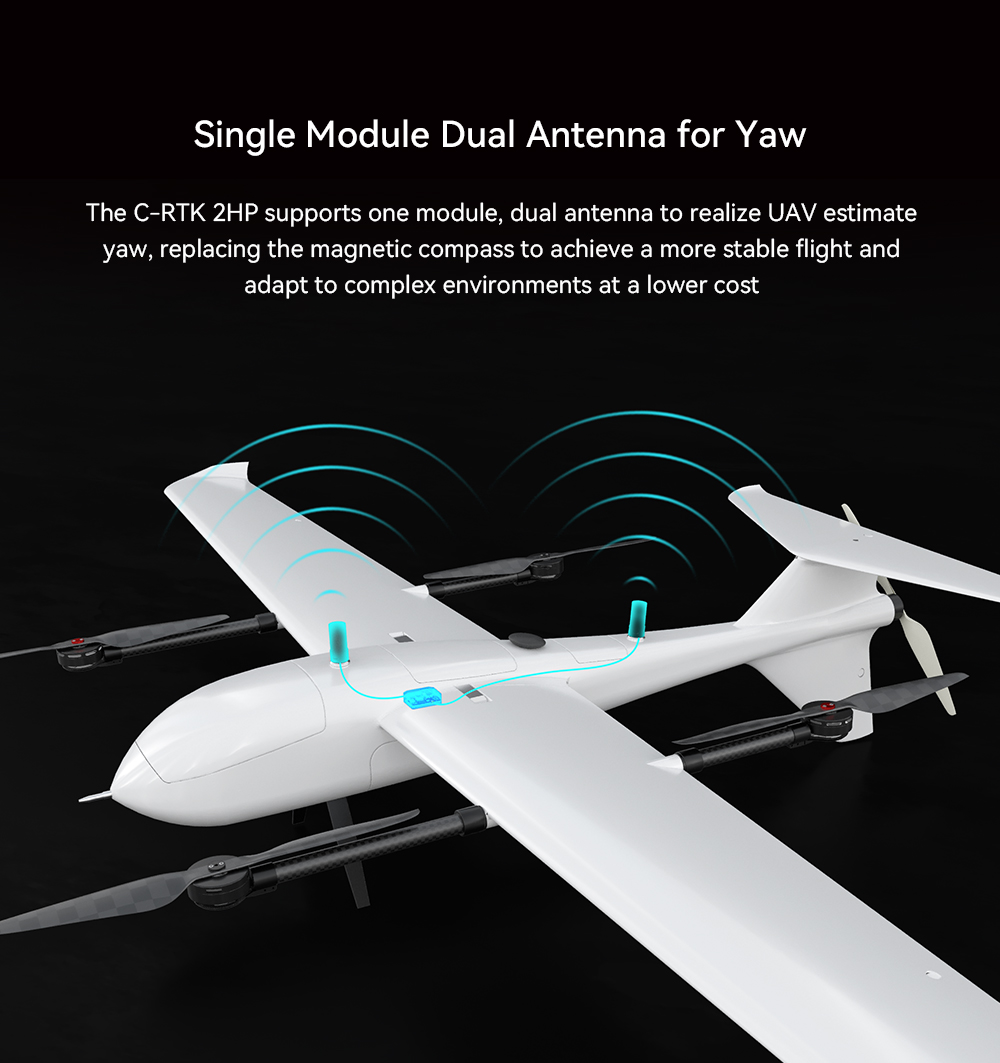

3-- Dual antenna direction-finding

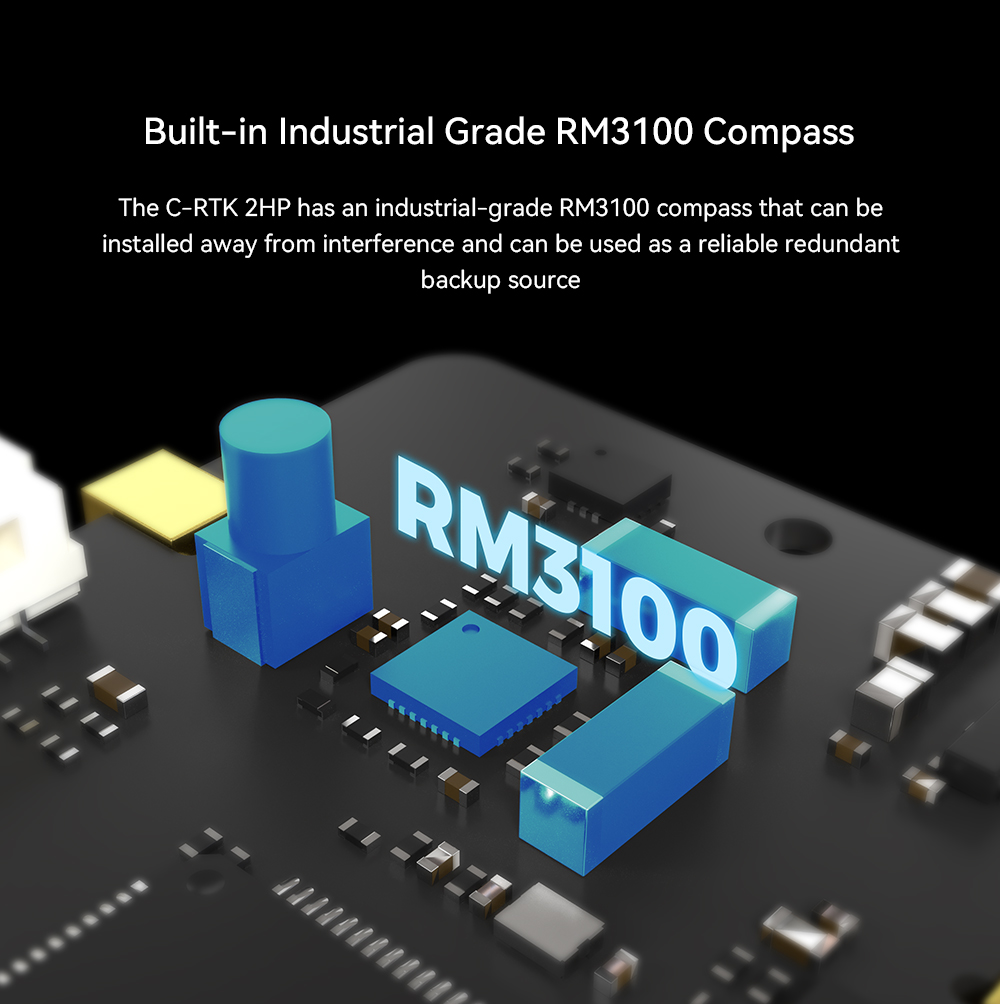

4-- RM3100 industrial-grade compass

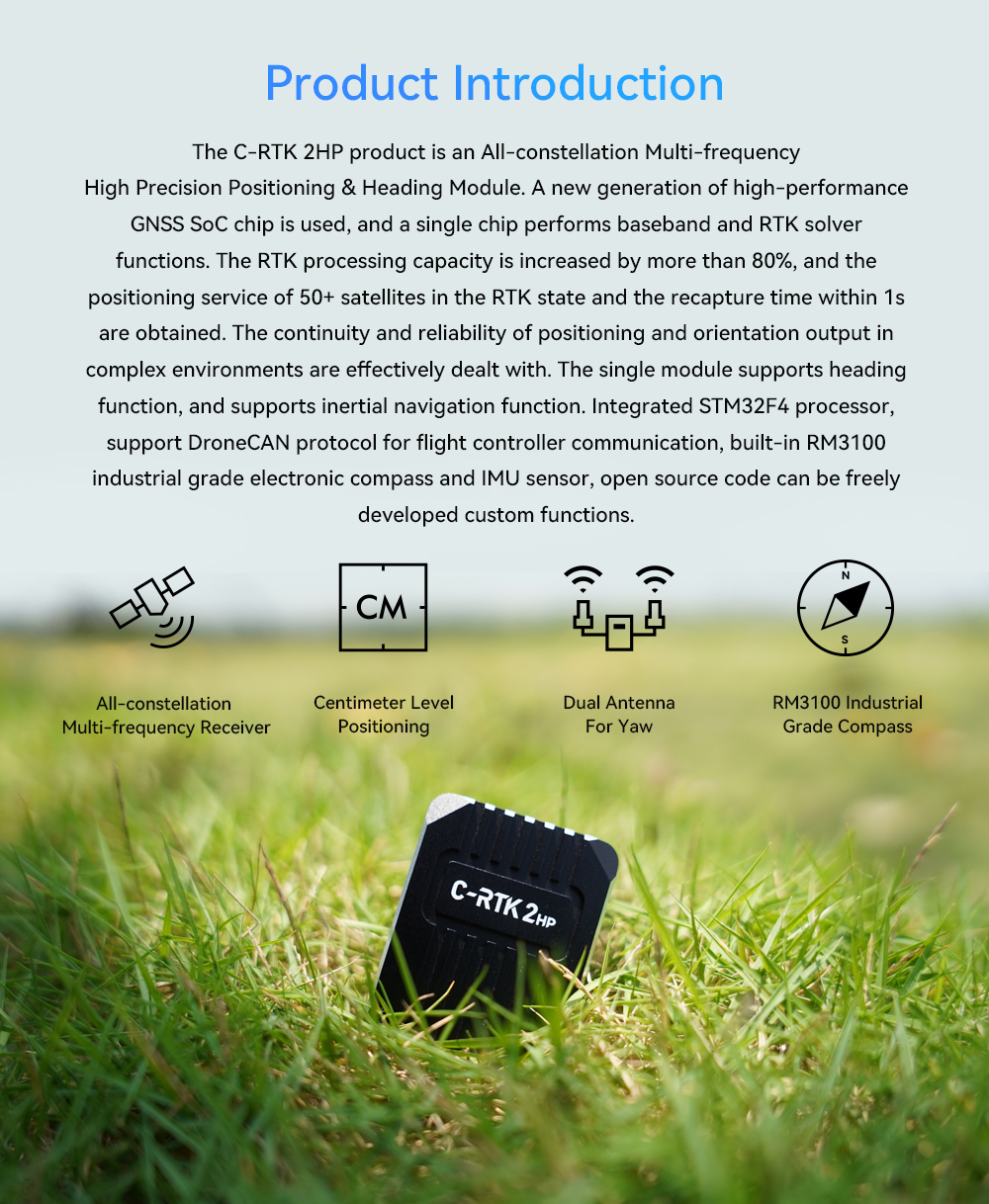

Introduction:

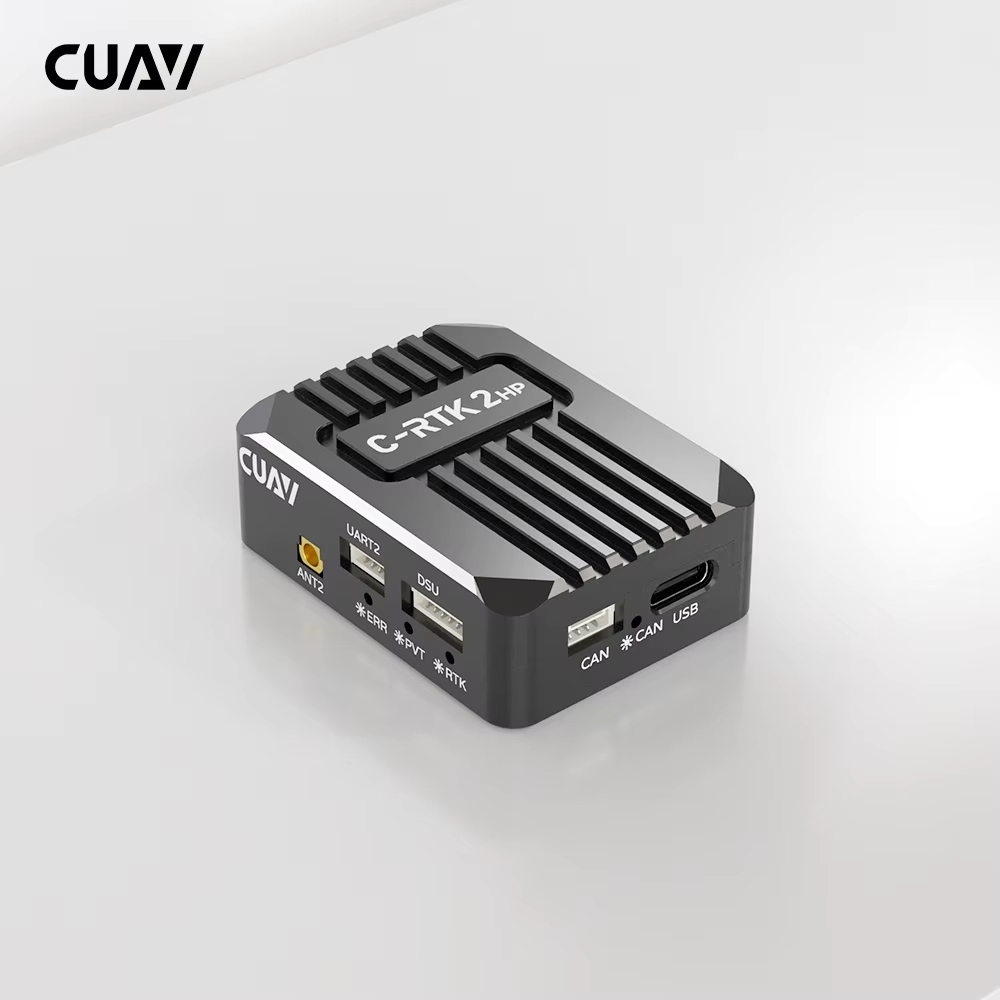

The C-RTK 2HP product is an all-satellite & multi-frequency high precision positioning & heading module. A new generation
of high-performance GNSS SoC chip is used, and a single chip performs baseband and RTK solution calculation functions.
The RTK processing capacity is increased by more than 80%, and the positioning service of 50 satellites in the RTK state
and the recapture time within 1s are obtained. The continuity and reliability of positioning and orientation output in complex environments are effectively dealt with. The single module supports heading function, and supports inertial navigation function. Integrated STM32F4 processor, support DroneCAN protocol for controller communication, built-in RM3100 industrial grade electronic compass and IMU sensor, open-source code allows developers to freely develop custom functions.

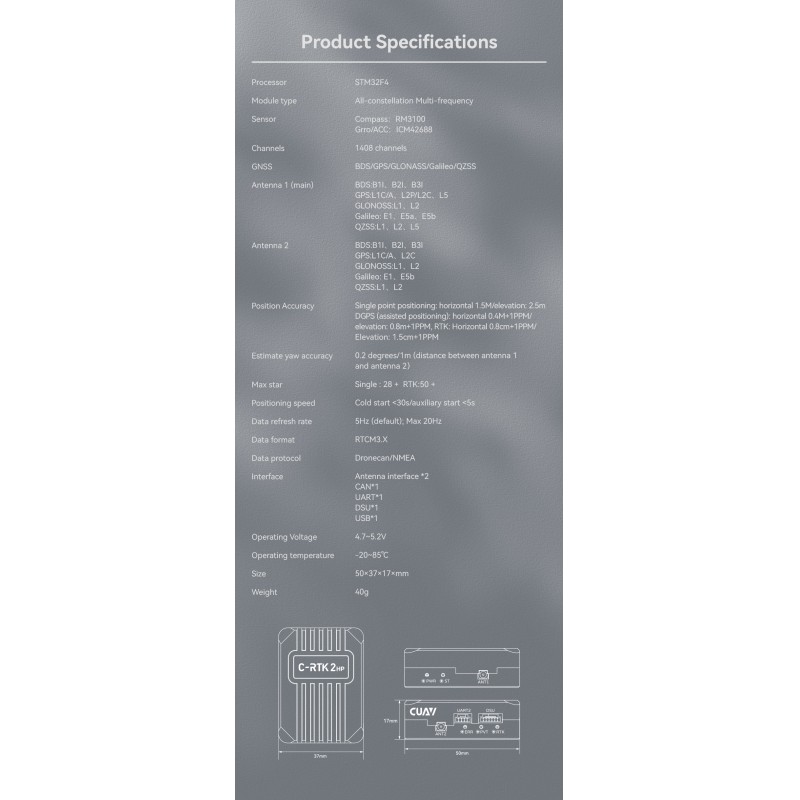

Product Parameters
MCU
STM32F412(32Bit ArmCortex -M4, 100MHz,512KBFLASH,256KB RAM)
Compass
RM3100
Receiver
High precision GNSSSoC
GNSS
BDS/GPS/GLONASS/GALILEO/QzSS
Antenna 1(Master)
BDS:B11,B2I,B3I
GPS:L1C/A,L2P/L2C,L5
GLONASS:L1,L2
GALILEO:E1,E5a,E5b
QzSS:L1,L2,L5
Antenna 2
BDS:B11,B2I,B3I
BDS:B11,B2I,B3I
GPS:L1C/A,L2C
GLONASS:L1,L2
Geo:E1,E5b
QzSS:L1,L2GPS:L1C/A,L2C
GLONASS:L1,L2
GALILEO:E1,E5b
QzSS:L1,L2
Position Accuracy(RMS)
Single Point 1.5m(Horizontal)/2.5m(Vertical)
DGPS:0.4m 1PPM(Horizontal/0.8m 1PPM(Vertical)
RTK:0.8cm 1PPM(Horizontal)/1.5cm 1PPM(Vertical)
Acquisition
Cold start<30s
Initialization time<5s
Data Update Rate
UP to 20Hz(default:5Hz)
Differential Data
RTCM3.X
Data Protocol
DroneCAN/NMEA
Sport

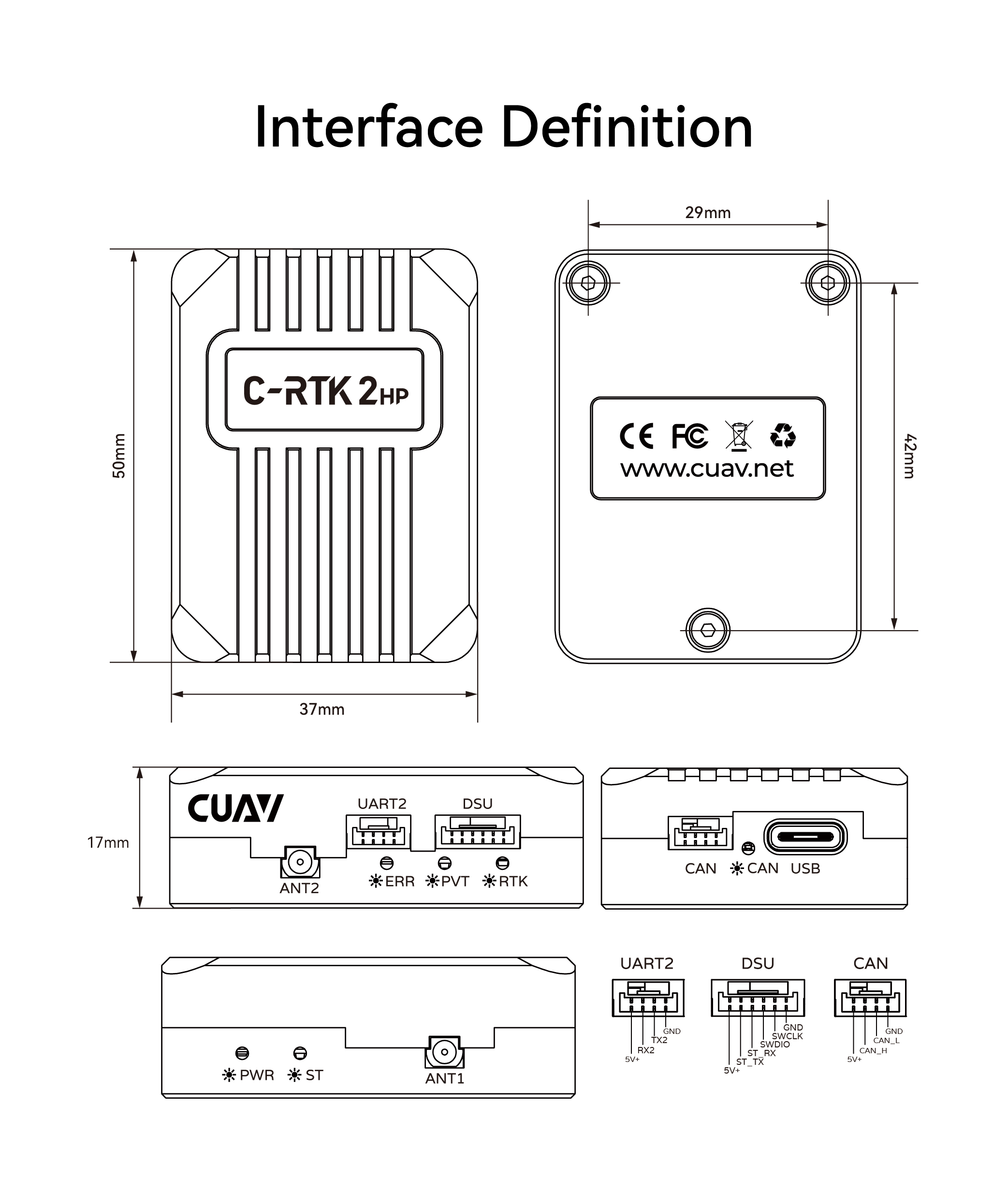

Antenna*2,CAN*1,UART*1,DSU*1,USB*1
Operatng Voltage
4.7~5.2V
Operating Temperature
-20~85°C
Size
50x37x17mm
Weight
40g
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
Cuav C-Rtk 2hp Gnss Receiver and Antenna Professional Survey Drone System for Mapping Applications
About us

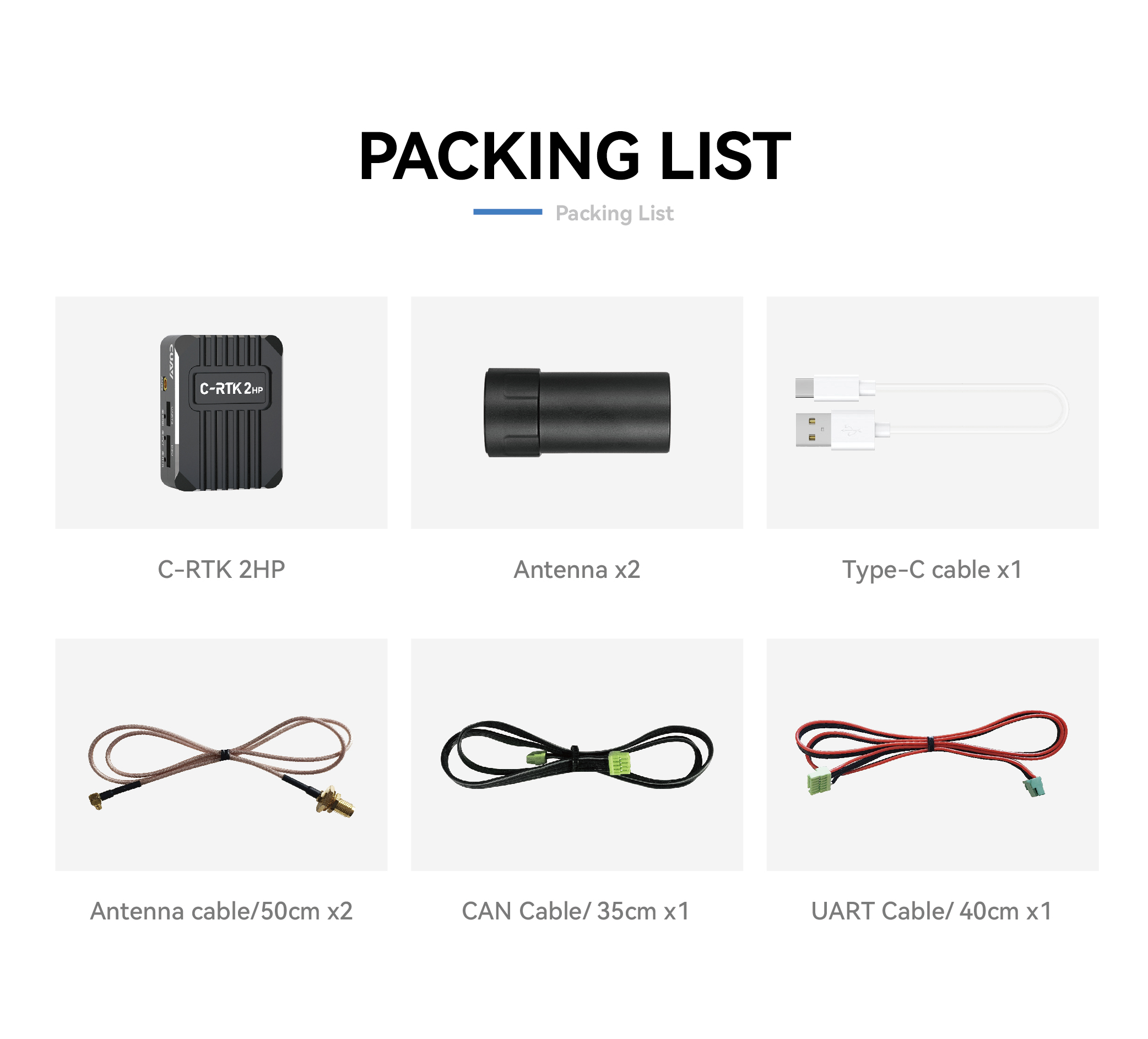

Packing & Delivery
