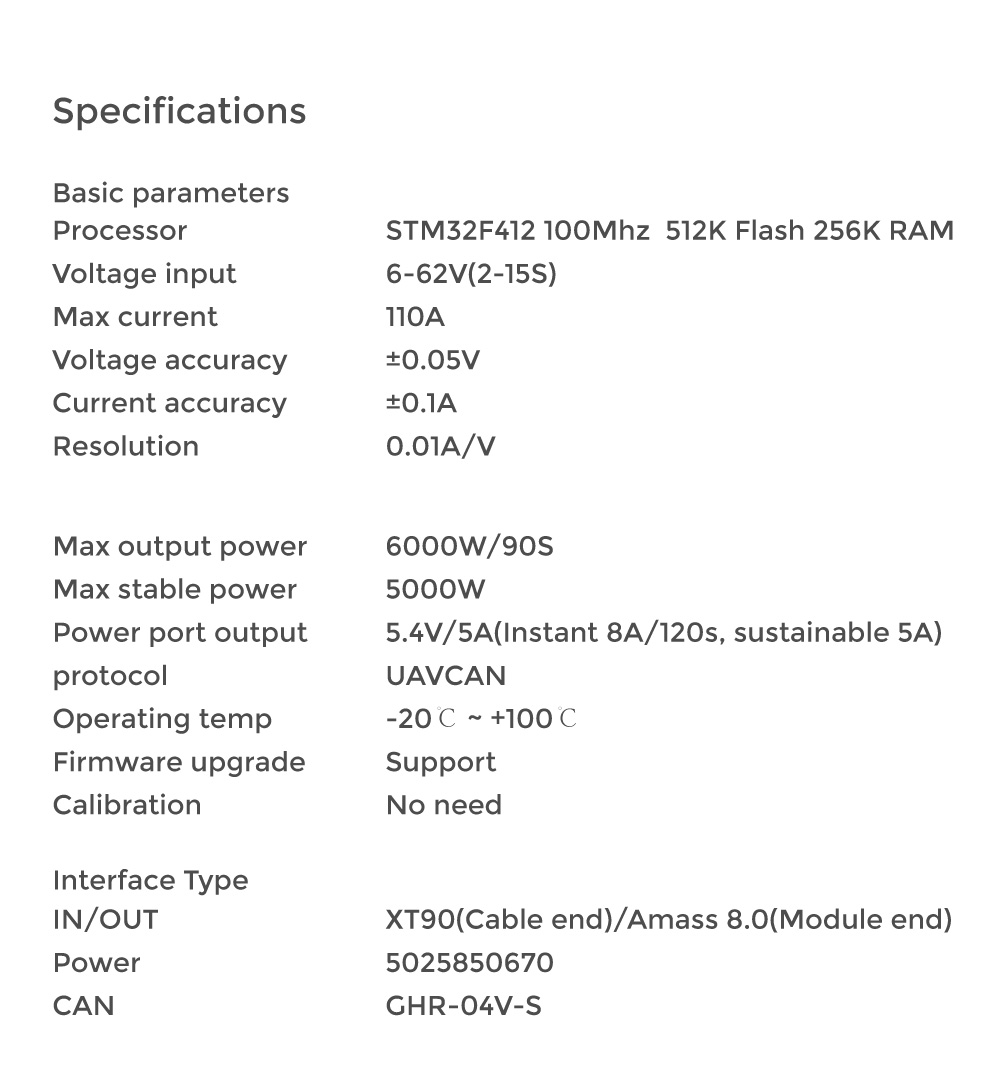

Specifications
Brand Name :
CUAV
Material :
Metal
Resolution :
0.01A/V
Voltage accuracy :
0.05V
Operating temp :
-20c~100c
Place of Origin :
China, GuangdongChina
Voltage input :
6-62V(2-15S)
Max current :
110A
MOQ :
2 pieces
Price :
$108-140 / piece
private mold :
Yes
Current accuracy :
0.1A
Protocol :
UAVCAN
compatible brand :
CUAV
Processor :
STM32F412 100Mhz 512K flash 256K RAM
Max output power :
6000W/90S
Description
Product Features
compatible brandOthers, CUAV
ProcessorSTM32F412 100Mhz 512K flash 256K RAM
Voltage accuracy0.05V
Voltage input6-62V(2-15S)
MaterialMetal
place of originGuangdong,China
Current accuracy0.1A
brand nameCUAV
Max output power6000W/90S
private moldYes
ProtocolUAVCAN
Max current110A
Operating temp-20c~100c
Resolution0.01A/V
CUAV CAN PMU Module Power Support 0.05V 0.1A Output 5V/5A UAV High Precision Power Management Unit FPV Drone
Product Description
CAN PMU Power Module Feature:
-- 0.05V 0.1A accuracy

-- 5V/5A regulated output

-- Maximum support 62V voltage input, 110A current

-- measurement

-- Self-developed ITT algorithm

Introduction:
CAN PMU is a drone power management module with built-in STM32F4 processor; running CUAV ITT compensation

algorithm, can accurately measure the voltage and current of the drone; support 6~62V voltage input, and the POWER port

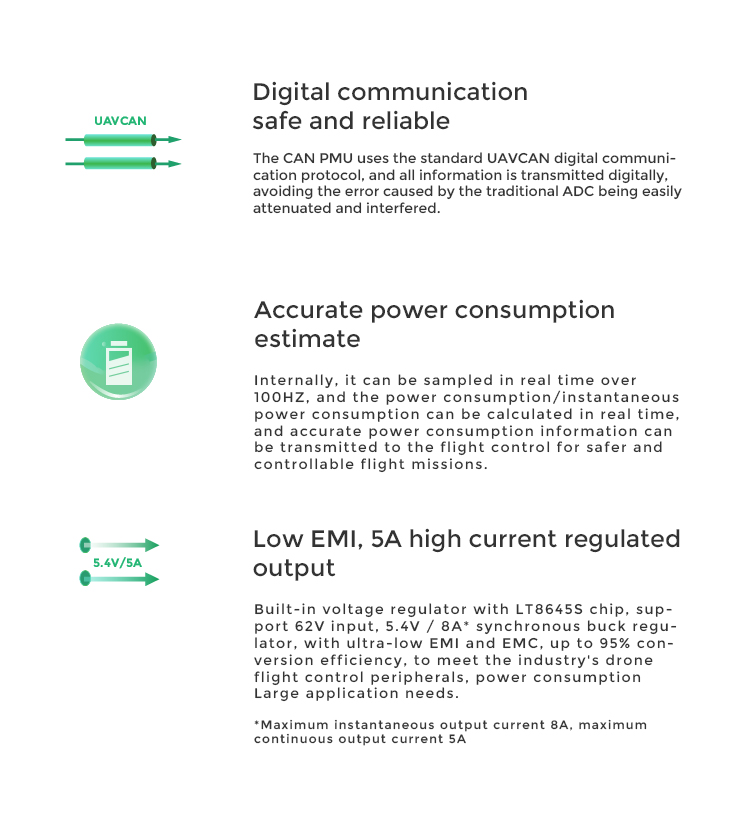

can output 5V/ 8A. It uses advanced CAN bus communication and supports the standard DroneCAN protocol; each PMU uses factory-level calibration to ensure good consistency and high accuracy
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Cuav Can Pmu Module Power Supply 0.05v 0.1a Output 5v/5a Uav High Management Unit Fpv Drone
Specification
item
value
Type
Helicopter
Power
Battery
Place of Origin
China
Guangdong
Brand Name
CUAV
Model Number
CAN PMU power module
Tool Supplies
Assembled class
Upgrade Parts/Accessories
Hydraulic Transmission Box
RC Parts & Accs
Flight Controllers
Use
Vehicles & Remote Control Toys
For Vehicle Type
Helicopters
Remote Control Peripherals/Devices
Remote Controller
