Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Specifications
Place of Origin :
China, GuangdongChina
Material :
Metal
Radio Control Style :
RC Model
RC Parts Accs :
Transmitters
Technical parameters :
KV1100
For Vehicle Type :
Airplanes
MOQ :
1 piece
Power :
Battery
compatible brand :
CUAV
Price :
$310-450 / piece
Brand Name :
CUAV
private mold :
Yes
Tool Supplies :
Tools
Size :
68*44*17mm
Four-wheel Drive Attributes :
Axle Bearing
Type :
Airplane
Description
Product Features
RC Parts & AccsTransmitters
Size68*44*17mm
MaterialMetal
place of originGuangdong,China
Radio Control StyleRC Model
TypeAirplane
brand nameCUAV
For Vehicle TypeAirplanes
Technical parametersKV1100
private moldYes
Tool SuppliesTools
PowerBattery
Four-wheel Drive AttributesAxle Bearing
Wholesale Price CUAV 915mhz P9 Radio Telemetry Radio Module for PX4 PIXHAWK Drone
Product Description
P9 Module Telemetry: -- 902-928MHz communication band -- 276kbps transmission rate -- 40km range -- Support 3S ~ 12S battery input -- Dual-end switchover design
Introduction:

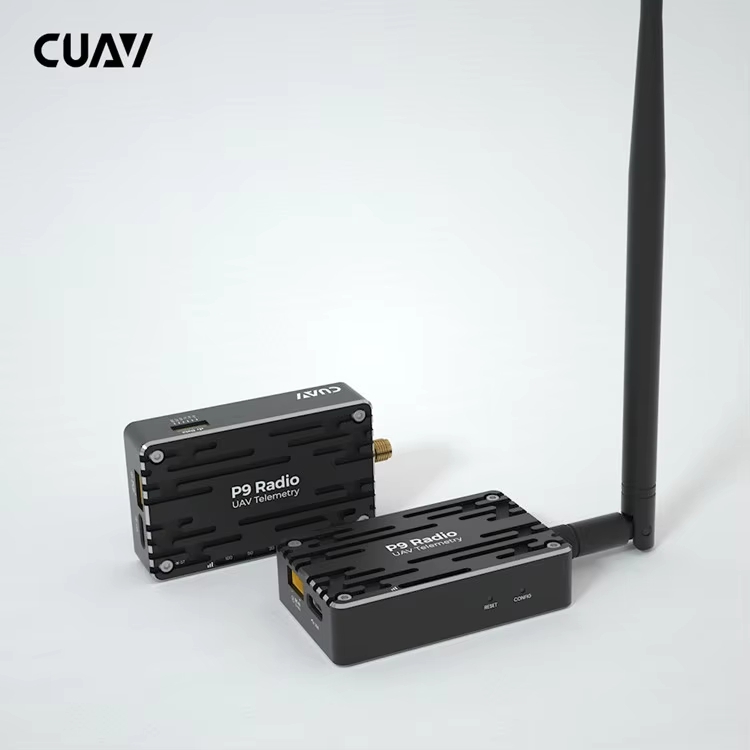

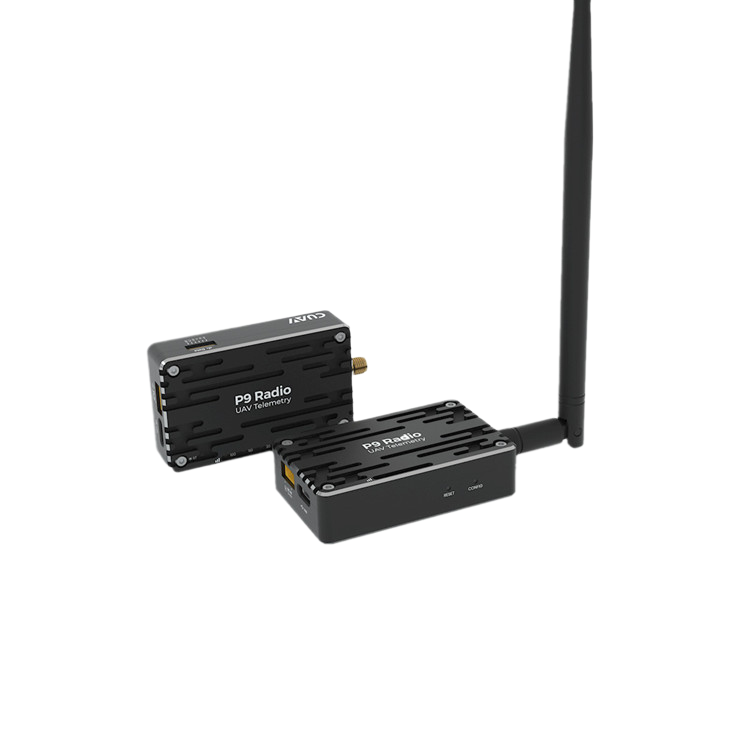

P9 Module is an ultra-long data telemetry module of Unmanned Systems. It adopts the communication frequency band of 902 ~ 928MHz. It has a transmission distance of 40km and a link rate of 276kbps. P9 Module supports 3 ~ 12S wide voltageinput. lt supports relay communication, meeting communication requirements in multiple application scenarios.
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Wholesale Price Cuav 915mhz P9 Radio Telemetry Module for Px4 Pixhawk Drone
Main Parameter
Working Frequency
902 ~ 928 MHz
Transmission Technology
Frequency Hopping
Transfer Protocol
Transparent Transmission
Forwarding Error Detection
Hamming /BCH/Golay/Reed-Solomo
Error Detecting
Error Detection 32 bits of CRC, ARQ
Encrypt
Optional (see -AES option)
Range
Reference distance: 40km(The transmission distance is different under different environments/ configurations, please refer to
actual use)
Sensitivity
-110 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps
Output Power
100mW ~ 1W (20 ~ 30dBm)(Default:1W)
Antenna Gain
5dBi
Serial Interface
3.3V CMOS TTL
Baud Rate
Up to 230.4kbps;57600(Default)
Link Rate
115 ~ 276 kbps
Operating Modes
Auto Routing, Store and Forward,Self Healing, Packet Routing Modes
Operating Voltage
12 ~ 60V
Power Consumption
Sleep < 1mA
Idle < 3.5mA
RX:35mA ~ 80mA
TX:800mA ~ 1200mA
Interface
Serial:GHR-06V-S
Antenna:SMA inner needle
USB:Type-C
Power:TX30PW-M
Operating Temperature
-40 ~ 85°C
Humidity
5% ~ 95%(Non-condensing)
Size
65.0 x 40.0 x 16.5 mm
Weight
55g(Module);Antenna:31g
