Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Specifications
Material :
Metal
RPM Range :
1600-8000rpm
MOQ :
1 piece
Type :
Motor Components
Spark plug type :
CM6
Brand Name :
NGH
Use :
Vehicles & Remote Control Toys
Place of Origin :
China, Guangdong China
Model Number :
NG-GTT70
Carburetor :
Walbro WT978
Price :
$369.88-399.31 / piece
Size :
Stroke:32mm
Gender :
Unisex
Age Range :
14 Years & up
Volume :
69.9cc ( 2x34.95cc )
Description
Product Features
Place of Origin Guangdong, China
Age Range 14 Years & up
Use Vehicles & Remote Control Toys
Size Stroke:32mm
Gender Unisex
Model Number NG-GTT70
Brand Name NGH
Carburetor Walbro WT978
Type Motor Components
Volume 69.9cc ( 2x34.95cc )
RPM Range 1600-8000rpm
Spark plug type CM6
NGH GTT70 Horizontally-opposed Twin-Cylinder 2- Stroke RC Gasoline Engine
Product Description
Product descriptionNGH have been known for producing high-quality gasoline engines.GTT70 is a professional-grade two-stroke gasoline engine built by NGH engineers for RC enthusiasts, compact structure, beautiful appearance, stable performance and plenty of power! GTT70 engine is a horizontally opposed twin-cylinder engine derived from GT35 engine. It is equipped with a radial mount, and there is the automatic timing angle capacitor discharge Double-cylinder synchronous ignition system customized for NGH by Rcxel. It has precision forged connecting rod with needle roller bearings, three high-quality deep groove ball bearings are assembled on the crankshaft.The cylinder liner is made of wear-resistant nodular cast iron, the tolerance of the bore in the cylinder is within 0.01mm, and the precision is much higher than the roundness tolerance of the inner hole of the aluminum alloy chrome-plated cylinder liner 0.03mm, aluminum alloy plating chromium cylinder liner in principle does not meet the Eu environmental regulations. The engine intake system adopts the crankshaft intake mode, which is more accurate than the reed valve intake mode in opening and closing time. Because the spring delay of the reed itself is different from the negative pressure of the crankcase, the intake time is not accurate. Optional surround exhaust pipe can effectively improve and reduce noise, and it is deeply high praised by European and American RC enthusiasts. GTT70 is suitable for RC aircraft with takeoff weights of 10-15kg and the fixed-wing UAV with the same take-off weight. Equipped with NGH electric starter, it is suitable for take-off weight of 10-15kg vertical UAV.GTT70 features * Integrated welded single exit exhaust muffler, effectively improve and reduce noise * Front Walbro carburetor, reliable operation and simple debugging * CNC carved radial engine mount, more stable installation and less vibration * Precision forged connecting rod with needle bearing * Double nut locking output shaft * RCEXL automatic timing synchronization ignition system, specially made for NGH * RCEXL spark plug CM6 * High-quality bearings
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Ngh Gtt70 Horizontally-Opposed Twin-Cylinder 2- Stroke Rc Gasoline Engine
Specification
Bore:
37.3mm
Stroke:
32mm
Volume:
69.9cc ( 2x34.95cc )
Carburetor:
Walbro WT978
Max Output:
7.9 HP/8300rpm
RPM Range:
1600-8000rpm
Ignition:
NGH Automatic advancing angle ignition (RoHS and CE Certified;Rcexl Manufactured)
Ignition Power:
DC 4.8V - 8.4V 1000mAH
Spark plug type:
CM6
Fuel:
90# Unleaded gasoline Fully synthetic lubricants (Non-4-stroke lubricants)
Break-in fuel ratio:
oil :Lubrication = 35:1
Recommended propeller:
23x8-10, 24x8-10 (Two blades)
Weight:
engine 2070g, ignition 180g
Packing & Delivery

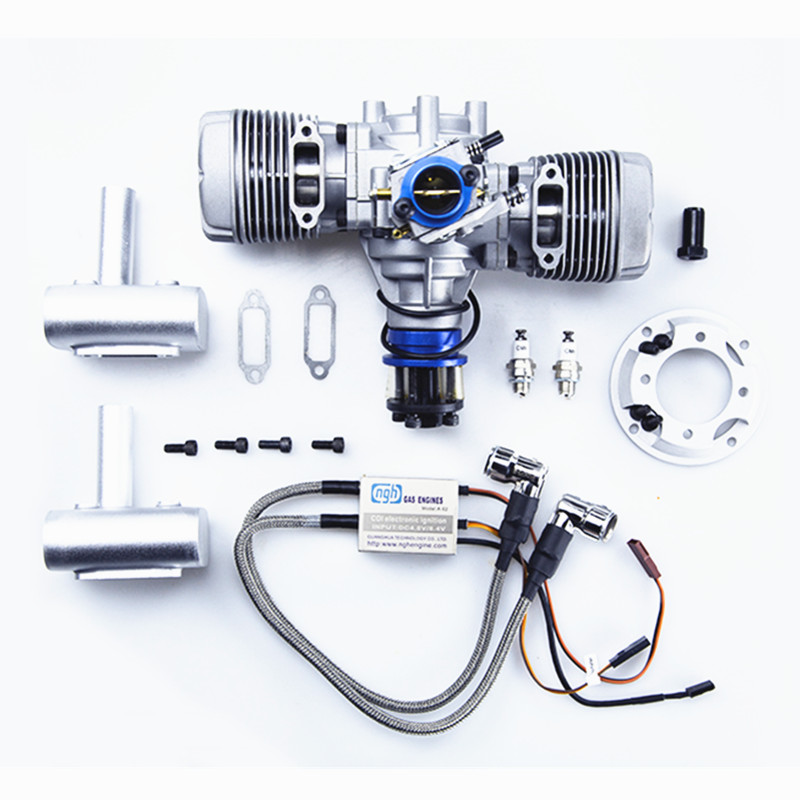

GTT70 Gasoline Engine x 1set
