Dle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation
Dle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation
Dle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation
Dle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation
Dle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation
Dle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation
Specifications
Brand Name :
DLE
Displacement :
61cm3
Performance :
7HP/8500rpm
Type :
NGK CM6
Lubrication Ratio :
30:1
Website :
www.lxrcmodel.com
Idle Speed :
1400 rmp/min
Place of Origin :
China, Guangdong China
Age Range :
0 to 24 Months
MOQ :
1 piece
Price :
$545-600 / piece
Material :
Metal
Model Number :
DLE60-180W
Gender :
Boys
Use :
Vehicles & Remote Control Toys
Description
Product Features
Place of Origin Guangdong, China
Spark Plug Type NGK CM6
Lubrication Ratio 30:1
Use Vehicles & Remote Control Toys
Idle Speed 1400 rmp/min
Website www.lxrcmodel.com
Model Number DLE60-180W
Performance 7HP/8500rpm
Displacement 61cm3
DLE60 60CC Engine UAV Power System (180W) UAV Twin Cylinder Power Generation System

DLE60 60CC engine UAV power system (180W) UAV twin cylinder power generation system

What is the Details of our Product?

Features
This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE refuses any liability;Before each operation, check the engine mount ,propeller and airframe carefully to ensure all engine screws and nuts is tight . Loctite(242,243) is strongly recommended during the installation.
CAUTION : During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock absorber. Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.

Product Details
Performance :7HP/8500rpm
Idle Speed :1400 rmp/min
Static Thrust :15.2kg/100 meters Altitude
Static Thrust :13.5kg/1800 meters Altitude
Recommended Propeller :22x10 ; 23x8 ; 23x10 ; 24x8 ;
Spark Plug Type:NGK CM6
Displacement :61cm3
Diameter x Stroke :36mmx30mm
Compression Ratio :7.6:1
Lubrication Ratio :30:1
Weight of Main Engine :1560g
Weight of Exhaust:200g
Weight of Ignition:190g
Ignition voltage :4.8V-8.4V
13.5kg/1800 meters Altitude
Recommended Propeller :22x10 ; 23x8 ; 23x10 ; 24x8 ;
Spark Plug Type:NGK CM6

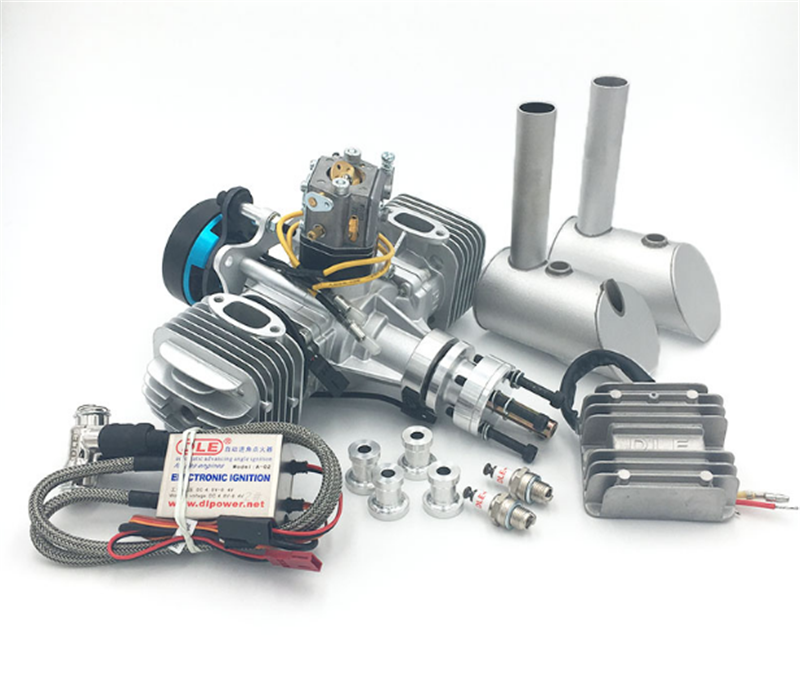

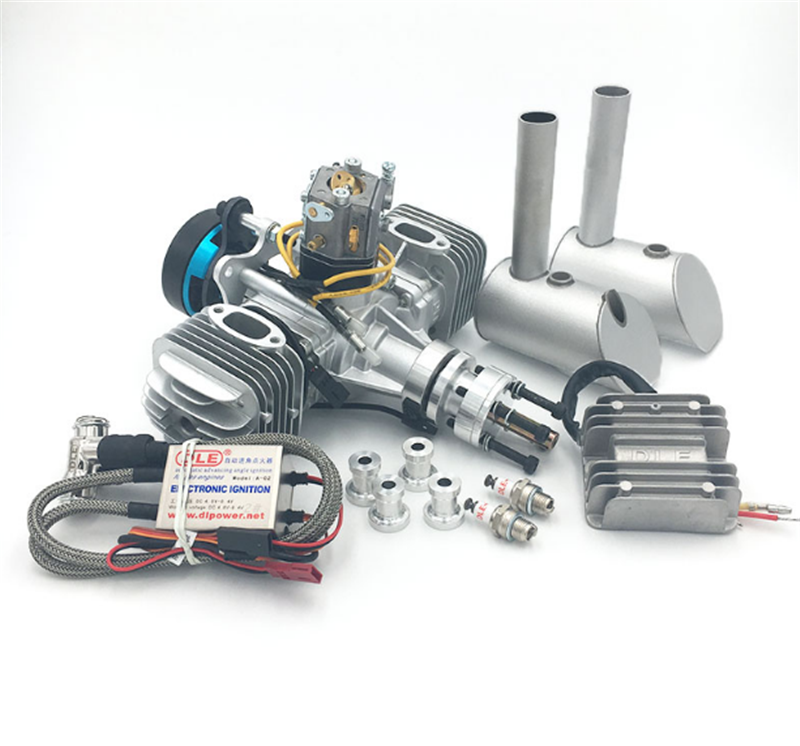

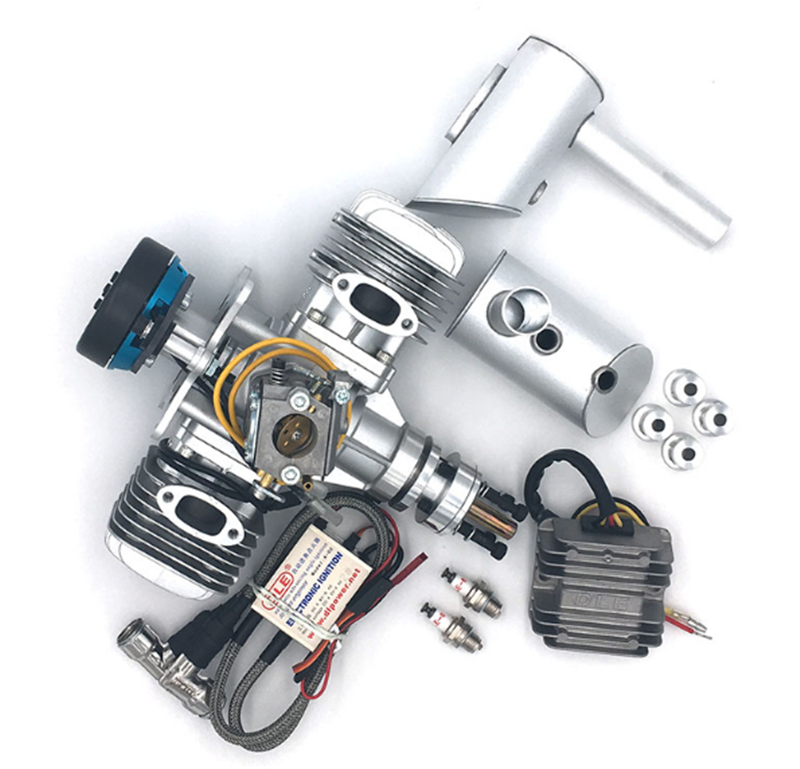

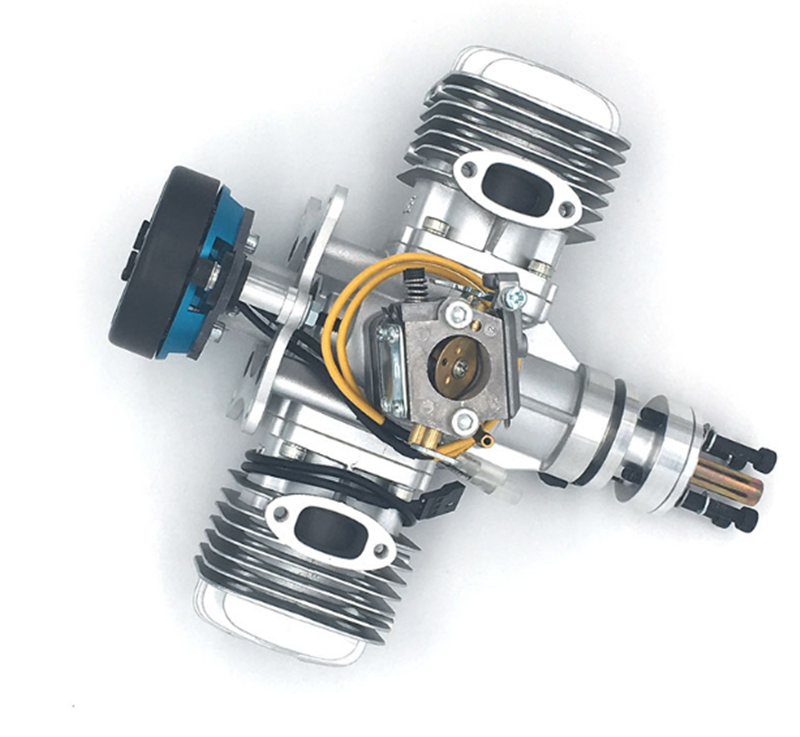

Detailed Images

Dle60 Cc Engine Uav Power System (180w) Twin Cylinder GenerationDle60 Cc Engine Uav Power System (180w) Twin Cylinder GenerationDle60 Cc Engine Uav Power System (180w) Twin Cylinder GenerationDle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation

Product Picture

Item Packing

DLE60-180W engine x 1set

Dle60 Cc Engine Uav Power System (180w) Twin Cylinder GenerationDle60 Cc Engine Uav Power System (180w) Twin Cylinder Generation

Regarding to the shipment, We can ship by EMS, Fedex, DHL, UPS, Air Mail, Sea.

Regarding to the payment, We can accept pay by Paypal, Western Union, Bank Transfer

We have not any MOQ for our customers

If there is any problem, you can tell me that I would be happy to answer it for you.
