Specifications
production capacity :
other
Peak Payload Per Arm :
6kg
Arm Reach :
633mm
application :
welding robot collaborative robot industrial robot
CAN-FD Control :
1KHZ
core components :
PLC Engine Bearing Gearbox Motor Pressure Vessel
Brand Name :
Foxtechrobot
Warranty :
3year
Price :
$6,469-6,500 / piece
weight (kg) :
2.6
MOQ :
1 piece
machinery test report :
Provided
Place of Origin :
China
voltage :
24V-48V
Description
Product Features
CAN-FD Control1KHZ
production capacityother
weight (kg)2.6
core componentsPLC Engine Bearing Gearbox Motor Pressure Vessel
place of originTianjin China
Peak Payload Per Arm6kg
voltage24V-48V
machinery test reportProvided
applicationwelding robot collaborative robot industrial robot
Arm Reach633mm
brand nameFoxtechrobot
Bimanual Arms7 DOF
video outgoing-inspectionProvided
SDKSupported
power(w)200W or 500W

Industrial Agility A1 7 DOF Collaborative Robotic Arm for Precision Tasks Like Assembly and Testing

Details Images
Agility A1 Robotic Arm
Fully Open-Source Human-Level Dexterity Contact-Rich Ready

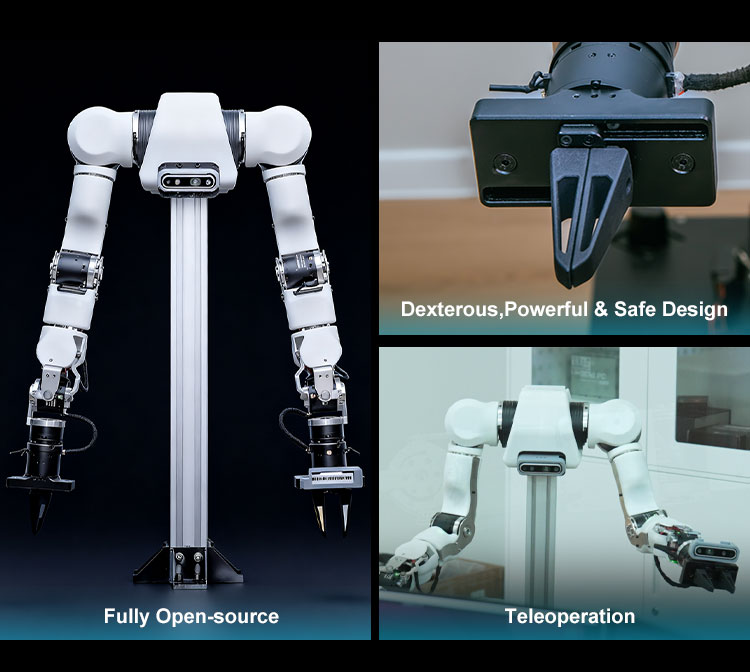

Agility A1 is a fully open-source humanoid robot arm designed for advanced physical-AI research and real-world deployment. Each arm offers 7 degrees of freedom, 633 mm reach, 5.5 kg weight, and up to 6 kg peak payload, with high-speed 1 kHz CAN-FD control for precise, responsive motion.

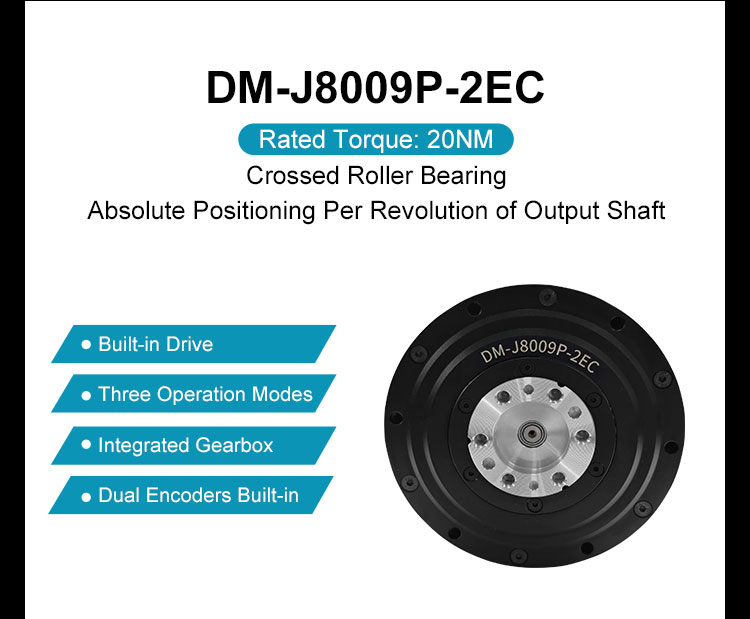

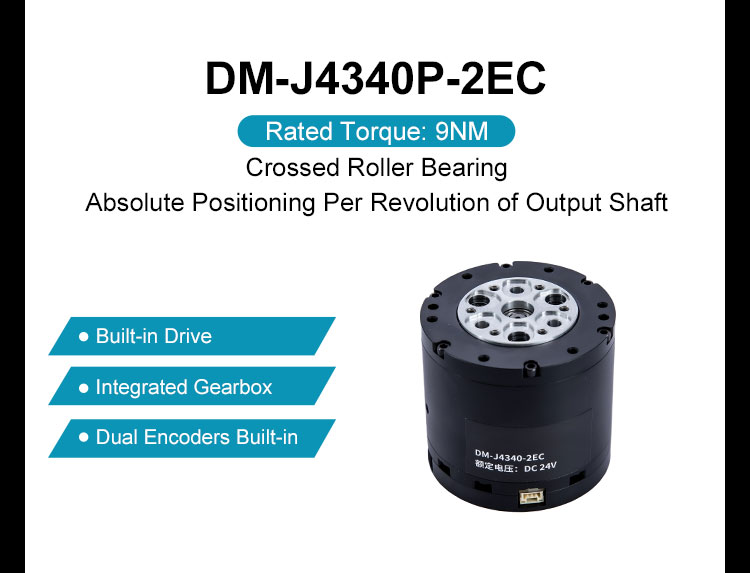

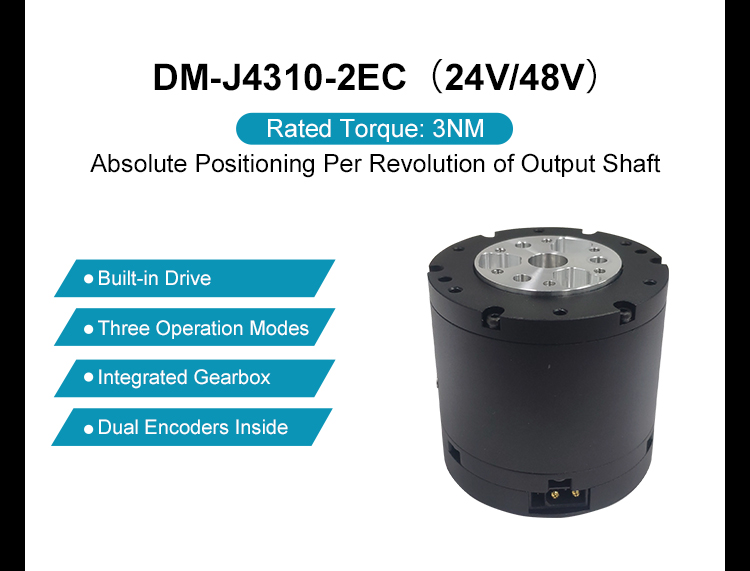

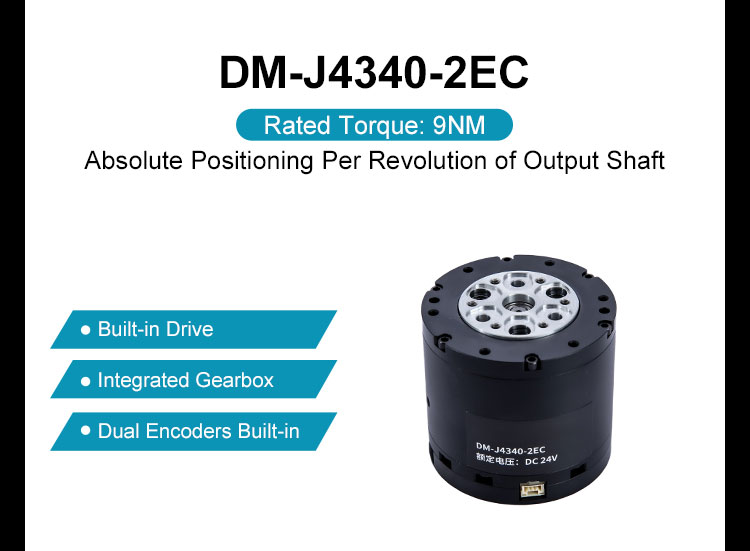

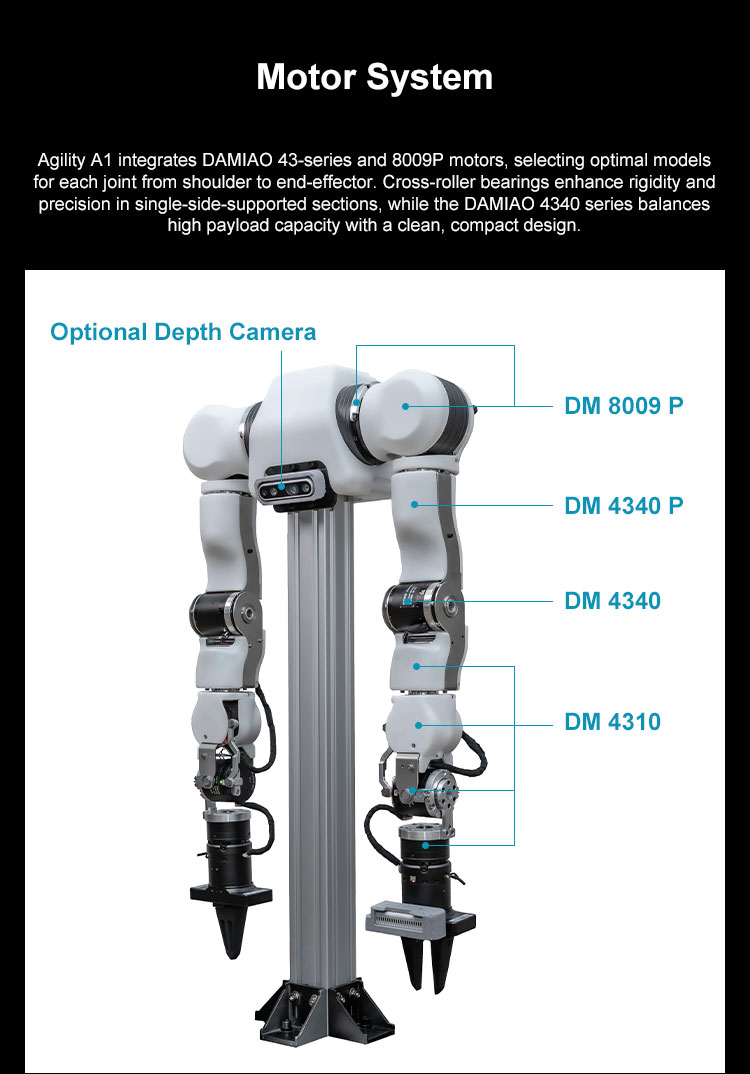

The motor system combines DAMIAO 43-series and 8009P motors, with cross-roller bearings for rigidity and precision, while the DAMIAO 4340 series delivers high payload capacity in a clean, compact form.

Complete CAD models, firmware, control code, and simulation tools are openly available, enabling rapid customization and
development. With smooth teleoperation, real-time gravity compensation, and compliant, backdrivable joints, Agility A1 provides dexterous, powerful, and safe interaction for contact-intensive environments.
(Note: Designed Based on the OpenArm Open-Source Platform)

Your Purchase Includes:
1x Agility A1 Robotic Arm (Dual Robotic arms with grippers, aluminum profile)
(Depth camera is optional)

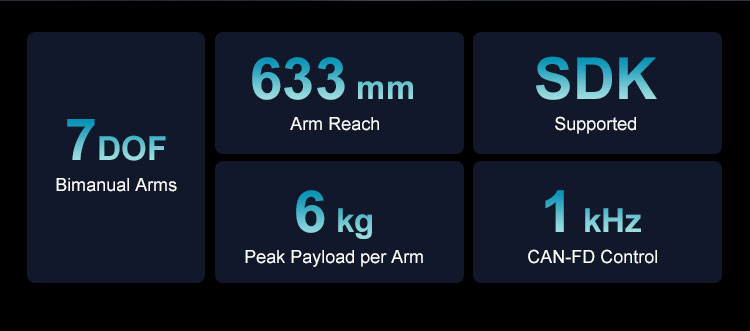

Bimanual Arms
7DOF
Arm Reach
633 mm
Peak Payload per Arm
6 kg
SDK
Supported
CAN-FD Control
1 kHz
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
Company Profile
Industrial Agile 7 DOF Collaborative Robotic Arm for Tasks Like Assembly and Testing
FAQ
1. who are we?
We are based in Tianjin, China, start from 2014,sell to North America(40.00%),Domestic Market(13.00%),Western Europe(12.00%),Eastern Asia(12.00%),Northern Europe(6.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(1.00%),Mid East(1.00%),Southern Europe(1.00%),Eastern Europe(1.00%),Central America(1.00%),Africa(1.00%),South America(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LiDAR Sensor,Survey Equipment,Robot,UGV,AGV

4. why should you buy from us not from other suppliers?
Support ODM/OEM service to better satisfy the customers' demands 24 hours online customer service and on-time delivery
