RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
Specifications
Built-in Flash Size :
4GB
MOQ :
1 unit
Material :
Metal
Model :
TX15 Max Radio Controller
Use :
Vehicles & Remote Control Toys
Transmitter Module :
Built-in ELRS
Color :
Red/ Black/ Gold
Price :
$150-159 / unit
Gender :
Unisex
Cooling Fan :
Yes
Supported Protocols :
Express-LRS
Age Range :
14 Years & up
Brand Name :
RadioMaster
Size :
178*168*81mm
Type :
Radio Systems
Model Number :
TX15-MAX
Internal RF :
ELRS 2.4GHz / Sub-G 900MHz
Weight :
672g (without battery)
Place of Origin :
China
Frequency :
2.400GHz OR Sub-G 900MHz
Description
Product Features
Age Range 14 Years & up
Use Vehicles & Remote Control Toys
Size 178*168*81mm
Transmitter Module Built-in ELRS
Color Red/ Black/ Gold
Built-in Flash Size 4GB
Material Metal
Gender Unisex
Model Number TX15-MAX
Supported Protocols Express-LRS
Weight 672g (without battery)
Brand Name RadioMaster
Cooling Fan Yes
Type Radio Systems
Internal RF ELRS 2.4GHz / Sub-G 900MHz
Model TX15 Max Radio Controller
Frequency 2.400GHz OR Sub-G 900MHz
Features

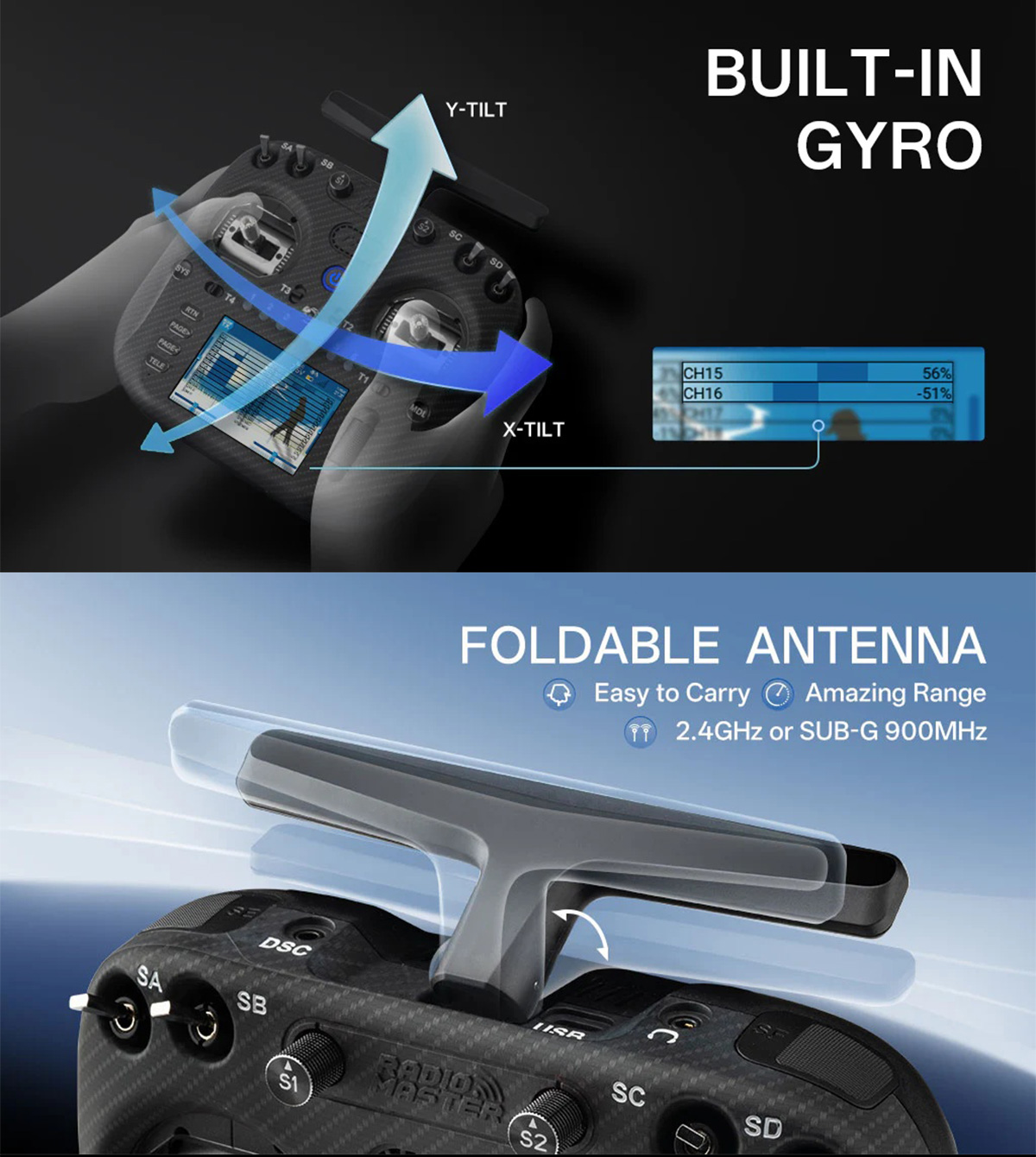

RadioMaster TX15 MAX: The Ultimate Open-Source Radio Controller The RadioMaster TX15 MAX is a high-performance radio controller designed for serious FPV and RC enthusiasts. Powered by a blazing-fast STM32 H7 processor, it ensures ultra-smooth operation with EdgeTX, instant model switching, and quick script execution. Its key feature is the integrated 2.4GHz/900MHz ExpressLRS (ELRS) module, powered by a Semtech LR1121 chip, providing long-range, low-latency control. The built-in gyro enables advanced tilt functions for switch and camera control.

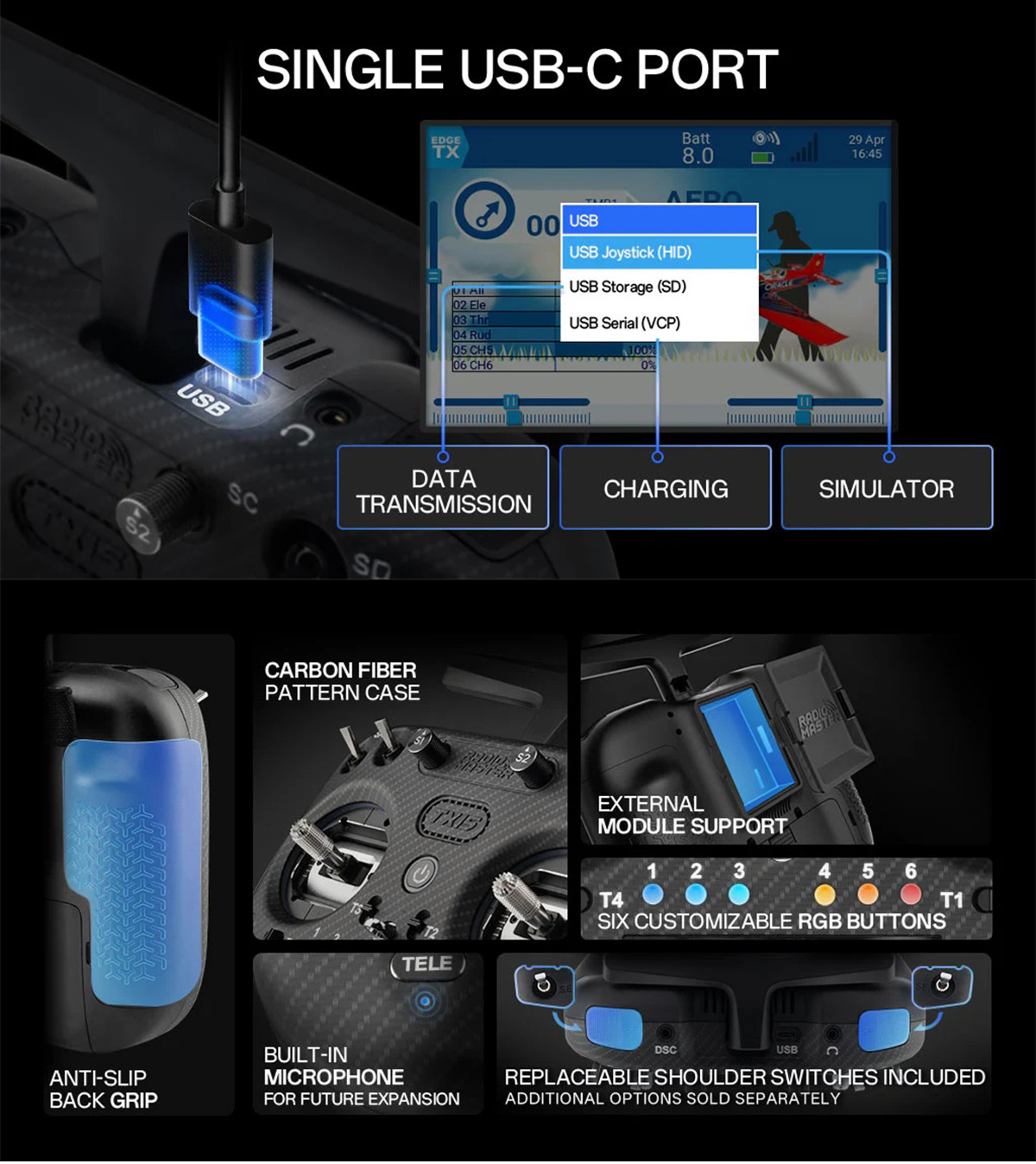

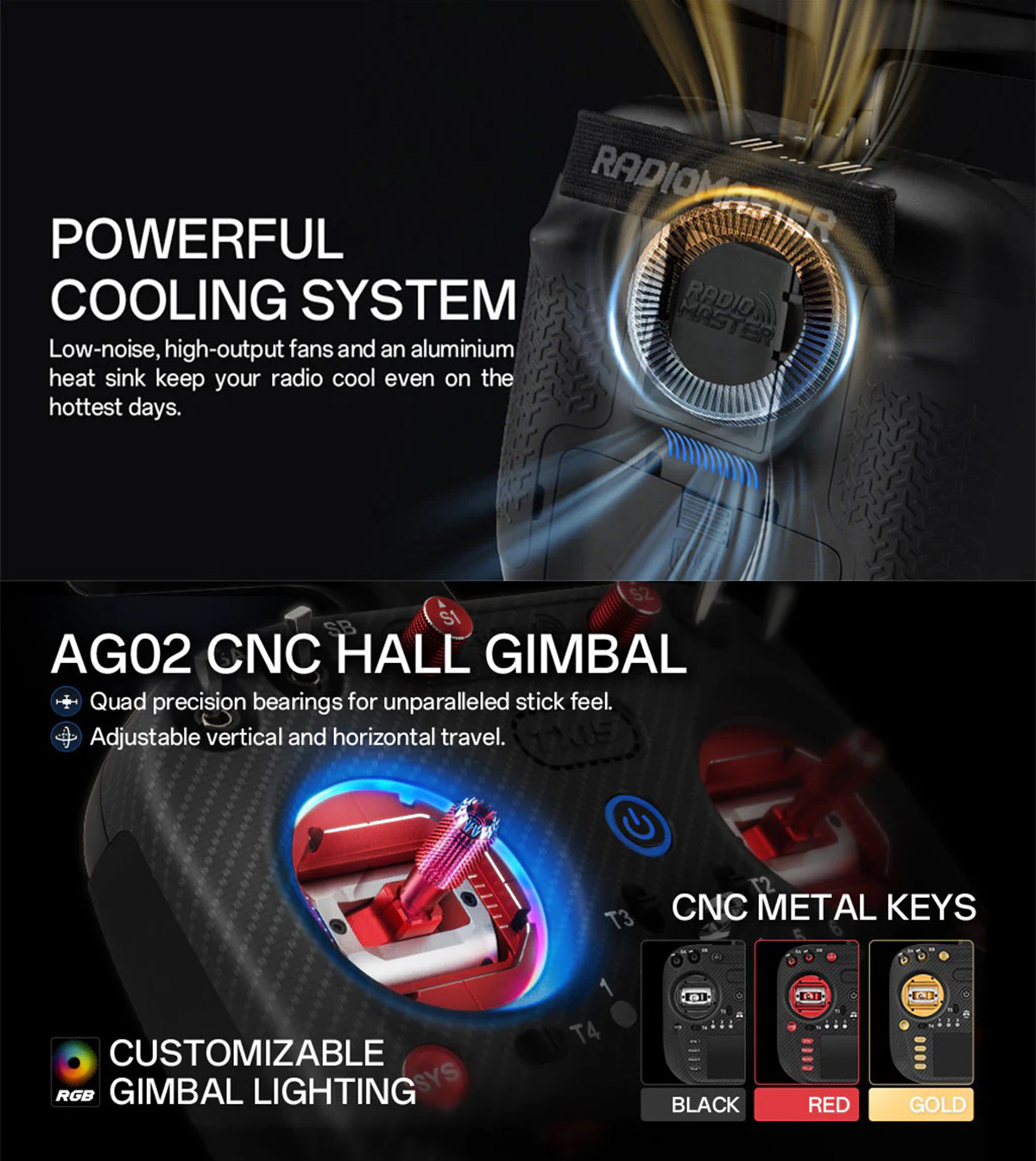

You get a brilliant 3.5-inch IPS touchscreen and premium AG02 CNC aluminum Hall gimbals for precision. It includes 4GB of internal storage, a smart battery circuit, an efficient cooling system, and customizable RGB gimbal lights. The design is completed with a foldable antenna and interchangeable shoulder switches. In short, the TX15 MAX combines top-tier performance, extensive features, and premium build quality into a single, future-proof radio.
Product Detail

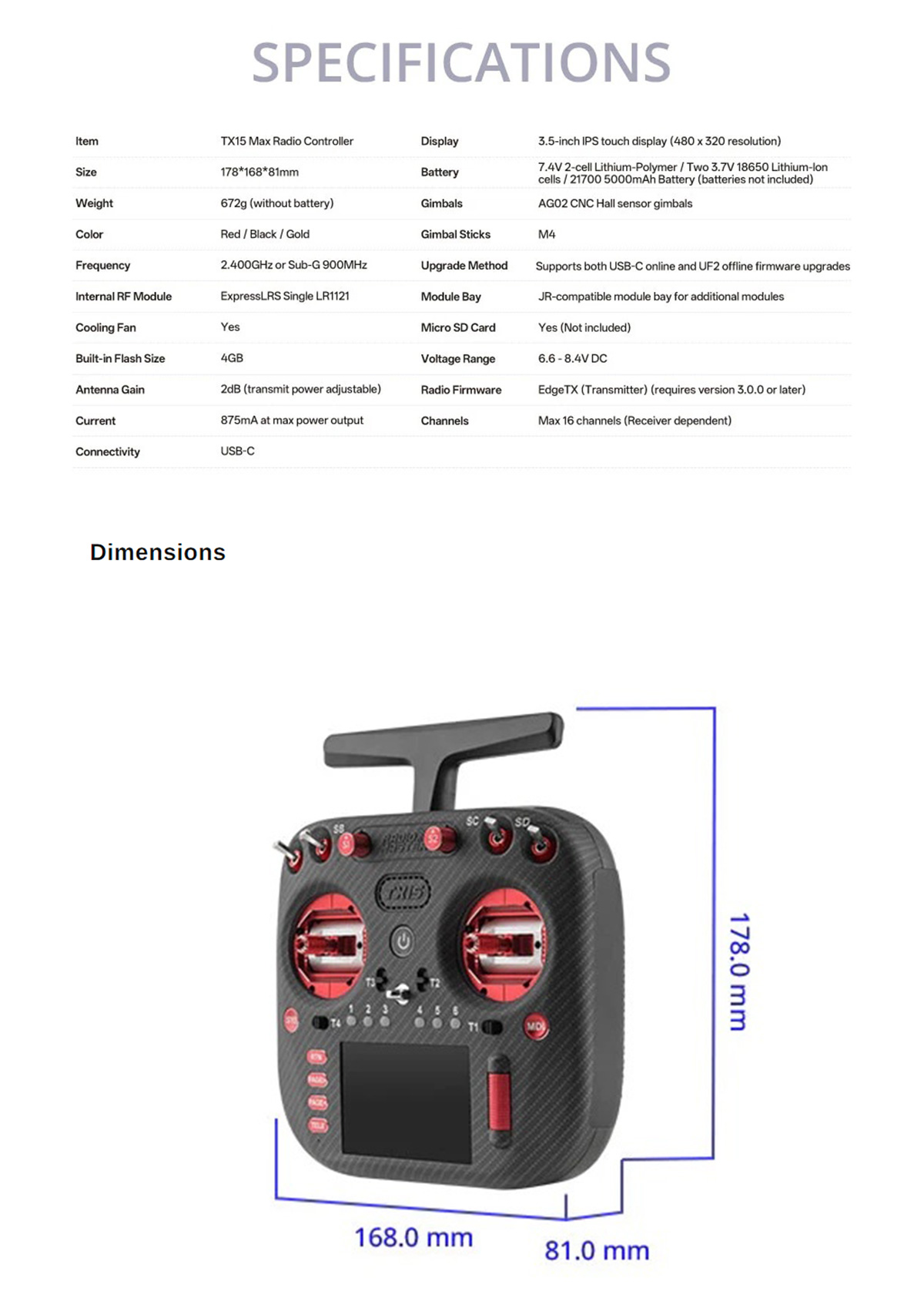

Model:TX15 Max Radio Controller Size: 178*168*81mm Weight: 672g (without battery) Color: Red/ Black/ Gold Frequency: 2.400GHz OR Sub-G 900MHz Internal RF: ELRS 2.4GHz / Sub-G 900MHz Supported Protocols: Express-LRS Cooling Fan: Yes Transmitter Module: Built-in ELRS Built-in Flash Size: 4GB Built-in Microphone: Yes (Future expansion) Built-in Gyro: Yes (ICM-42607-C) MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash) Antenna Gain: 2dB (transmit power adjustable) Current: 875mA at max power output Voltage Range: 6.6 - 8.4V DC Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later) Module Firmware: ExpressLRS Channels: Max 16 channels (Receiver dependent) Display: 3.5-inch IPS touchscreen (480 x 320 resolution) Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included) Connectivity: USB-C Gimbals: AG02 CNC Hall sensor gimbals Gimbal Sticks: M4 Upgrade Method: USB-C (UF2) Module Bay: JR-compatible module bay for additional modules

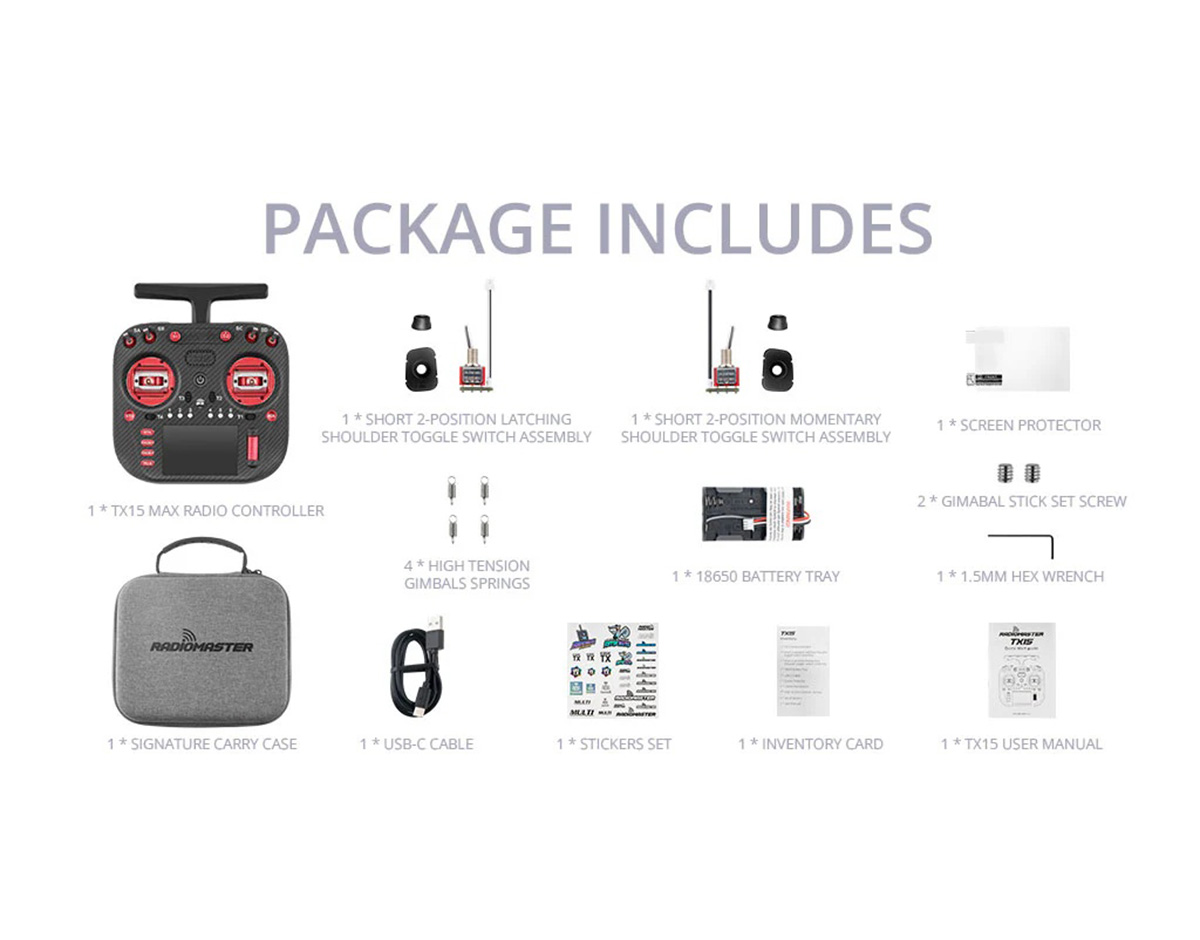

Item Packing
TX15 Max Radio Controller x1
18650 Battery Tray x1
High Tension Gimbals Springs x4
Inventory Card x1
Signature Carry Case x1
USB-C Cable x1
Gimbal Stick Set Screw x2
Short 2-position Latching Shoulder Toggle Switch Assembly x1
Screen Protector x1
Stickers Set x1
Short 2-position Momentary Shoulder Toggle Switch Assembly x1
1.5mm Hex Wrench x1
User Manual x1
Detailed Images
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
RadioMaster TX15 Radio Controller 3.5inch ExpressLRS Module AG02 Hall Gimbal Built-in Gyroscope
