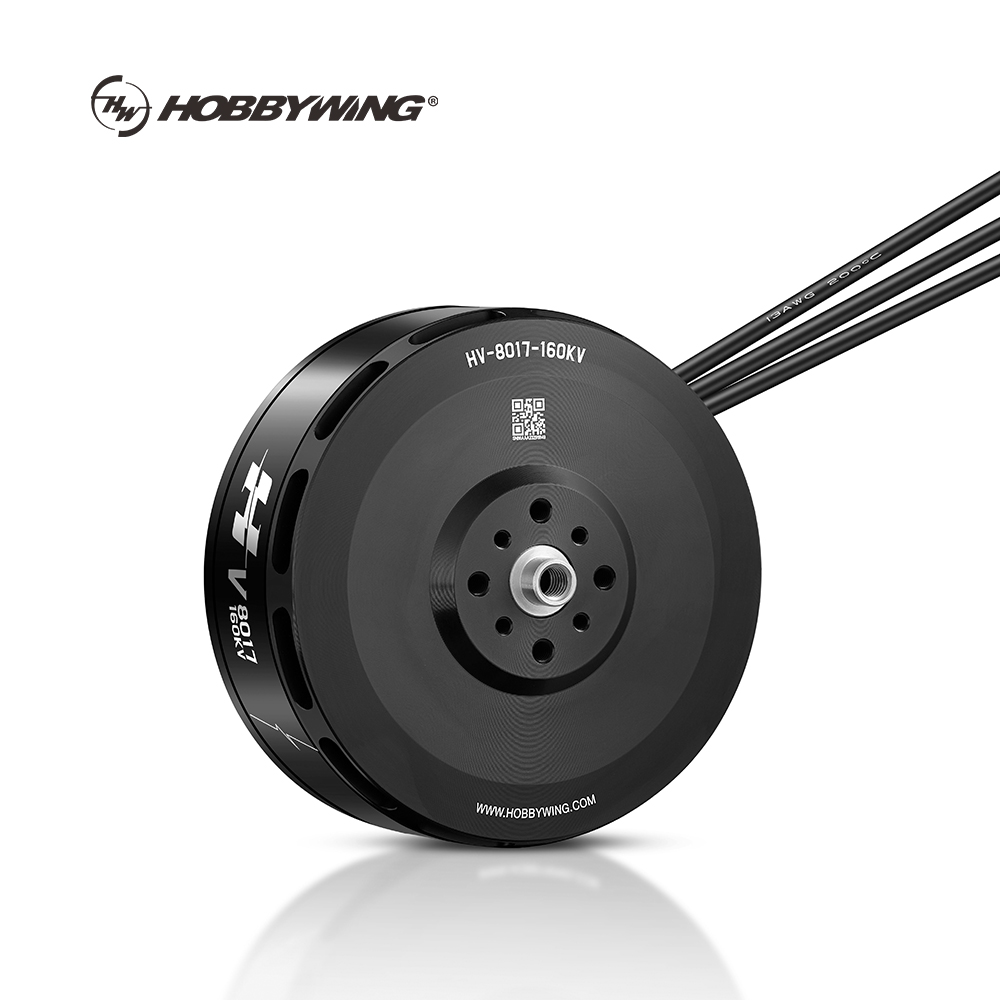

For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
Specifications
Maximum propeller pull :
22.5kg
ESC :
XRotor Pro-H100A-14SXRotor Pro-H130A-14S
Model Number :
HV-8017
compatible brand :
DJI
Place of Origin :
China, Guangdong China
Protection :
IPX5
MOQ :
1 set
Material :
PVC
private mold :
Yes
KV :
160KV
IPC(Intelligent Propeller Control) :
Optional
Price :
$162-169 / set
Maximum Current :
130A
Brand Name :
Hobbywing
Type :
Vertical Motor
Takeoff Weight /Rotor :
7kg~10kg
Description
Product Features
Takeoff Weight /Rotor 7kg~10kg
place of origin Guangdong, China
KV 160KV
Maximum propeller pull 22.5kg
Type Vertical Motor
IPC(Intelligent Propeller Control) Optional
ESC XRotor Pro-H100A-14S,XRotor Pro-H130A-14S
brand name Hobbywing
Maximum Current 130A
private mold Yes
model number HV-8017
Protection IPX5
Rated Voltage(LiPo) 12S

Shenzhen Hobbywing Technology Co., Ltd.

Why Choose US?
Leading Drone Brushless Thrust System Manufacturer in China

- With professional technical team support
- 100% product quality protection
- 100% on-time shipment protection
- 100% payment protection by Alibaba
- Skilled workers and strict quality inspection

>>> We're Hobbywing Official Store.
The first company in China to engage in the R&D of brushless power systems for drones and RC model products. With about 20 years experience in this field.

>>> Looking for distributors and welcome to contact us for specific solutions
Please send an inquiry to get the product catalog or datasheet.

For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
For Hobbywing V8017 12S 130a 22.5kg V-Motor 10 Motor VTOL Drone Accessories Imported High-Precision Bearings Supports 4
Specification
Brand Name
Hobbywing
Model Number
HV-8017
Type
Brushless Motor
Usage
Vertical Drone
KV
160KV
Rated Voltage(LiPo)
Lipo-12S
Max propeller pull
22.5kg
No-Load Current
3.47A
Max Current
130A
Max Power
4300W
Motor Weight(with Wire)
746.5g
Motor Lead Length
1000mm
Motor Size
89.1 *50.45mm
Stator Size
80mm
Protection Level
IPX5
Dynamic Balance
≤10mg
Number of slot poles
24N28P
Magnet
150°C
Enamelled Wire
200°C
IPC(Intelligent Propeller Control)
Optional
