Specifications
private mold :
No
MOQ :
2 pieces
Brand Name :
CUAV
Place of Origin :
China, GuangdongChina
compatible brand :
Others
Use :
Vehicles Remote Control Toys
For Vehicle Type :
Airplanes
Size :
68*44*17mm
Power :
Battery
Price :
$367-459 / piece
Material :
Metal
Remote Control Peripherals/Devices :
Receivers
Technical parameters :
KV1100
Tool Supplies :
Tools
Four-wheel Drive Attributes :
Axle Bearing
RC Parts Accs :
Transmitters
Description
Product Features
RC Parts & AccsTransmitters
Size68*44*17mm
UseVehicles & Remote Control Toys
MaterialMetal
place of originGuangdong,China
Remote Control Peripherals/DevicesReceivers
brand nameCUAV
For Vehicle TypeAirplanes
Technical parametersKV1100
private moldYes
Tool SuppliesTools
PowerBattery
Four-wheel Drive AttributesAxle Bearing
CUAV P9 Radio Diy Drone Frame Set Fpv Tracker Module Gps arduino Controller Radio Telemetry Transmit Transmitters Receivers
Product Description
P9 Module Telemetry Feature:
-- 902-928MHz communication band
-- 276kbps transmission rate
-- 40km range
-- Support 3S ~ 12S battery input
-- Dual-end switchover design
Introduction:

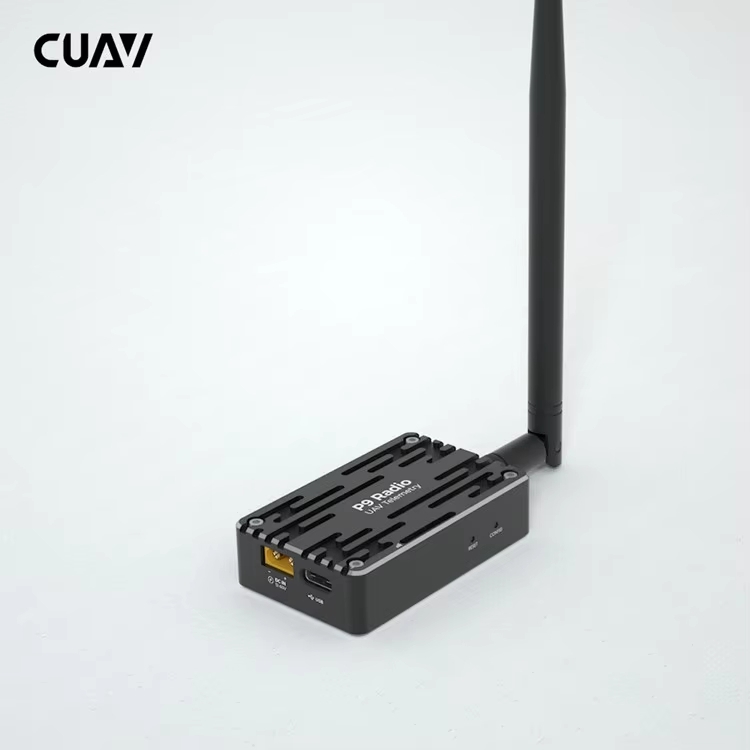

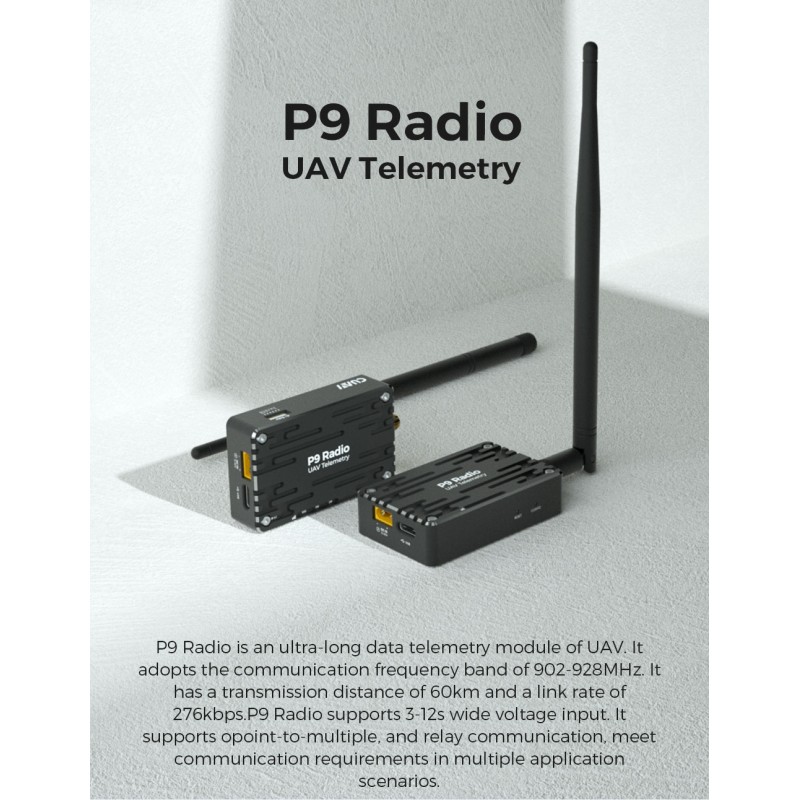

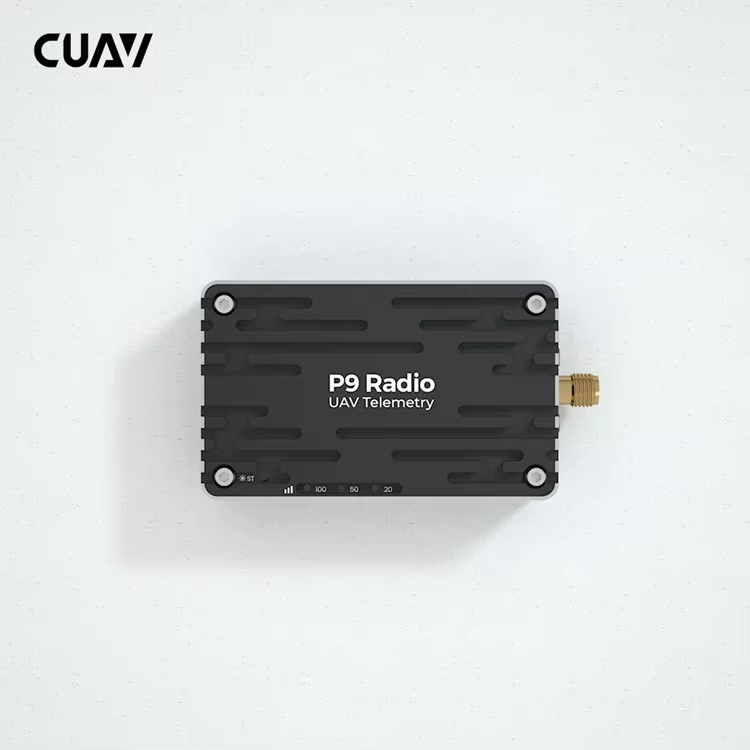

P9 Module is an ultra-long data telemetry module of Unmanned Systems. It adopts the communication frequency band of

902 ~ 928MHz. It has a transmission distance of 40km and a link rate of 276kbps. P9 Module supports 3 ~ 12S wide voltage input. It supports relay communication, meeting communication requirements in multiple application scenarios.
Main Parameter
Working Frequency
902 ~ 928 MHz
Transmission Technology
Frequency Hopping
Transfer Protocol
Transparent Transmission
Forwarding Error Detection
Hamming /BCH/Golay/Reed-Solomo
Error Detecting
Error Detection 32 bits of CRC, ARQ
Encrypt
Optional (see -AES option)
Range
Reference distance: 40km(The transmission distance is different under different environments/ configurations, please refer to

actual use)
-Sensitivity
-110 dBm @ 115.2 kbps

-108 dBm @ 172.8 kbps

-107 dBm @ 230.4 kbps
Output Power
100mW ~ 1W (20 ~ 30dBm)Default1W)
Antenna Gain
5dBi
Serial Interface
3.3V CMOS TTL
Baud Rate
Up to 230.4kbps;57600Default
Link Rate
115 ~ 276 kbps
Operating Modes
Auto Routing, Store and Forward,Self Healing, Packet Routing Modes
Operating Voltage
12 ~ 60V
Power Consumption
Sleep < 1mA

Idle < 3.5mA

RX35mA ~ 80mA

TX800mA ~ 1200mA
Interface
SerialGHR-06V-S

AntennaSMA inner needle

USBType-C

PowerTX30PW-M
Operating Temperature
-40 ~ 85°C
Humidity
5% ~ 95%(Non-condensing)
Size
65.0 x 40.0 x 16.5 mm
Weight
55g(Module);Antenna31g
