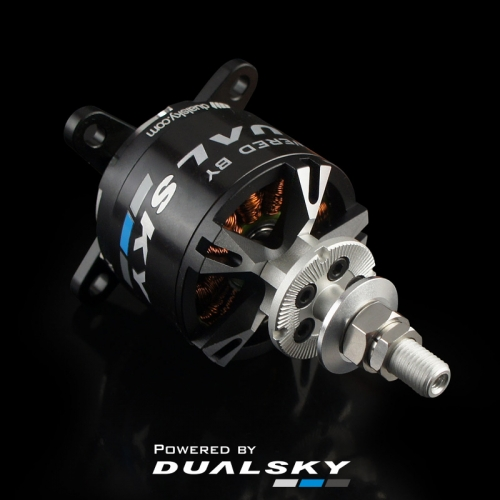

DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
Specifications
Model Number :
XM5050EA
MOQ :
1 piece
Brand Name :
DUALSKY
Type :
MOTORS
Place of Origin :
China
Gender :
Unisex
Dimensions (D x L) [mm] :
49.5x48.2
Price :
$52.64-87.43 / piece
Spec. of Mounting Holes :
4 - M4 30/30
Input Connectors :
DB4
Diameter of Shaft (mm) :
6
Material :
Metal
Age Range :
14 Years & up
Use :
Vehicles & Remote Control Toys
Website :
www.lxrcmodel.com
Description
Product Features
Age Range 14 Years & up
Use Vehicles & Remote Control Toys
Input Connectors DB4
Website www.lxrcmodel.com
Material Metal
Gender Unisex
Model Number XM5050EA
Brand Name DUALSKY
Type MOTORS
Spec. of Mounting Holes 4 - M4, 30/30
Dimensions (D x L) [mm] 49.5x48.2
Diameter of Shaft (mm) 6.0
Product Description

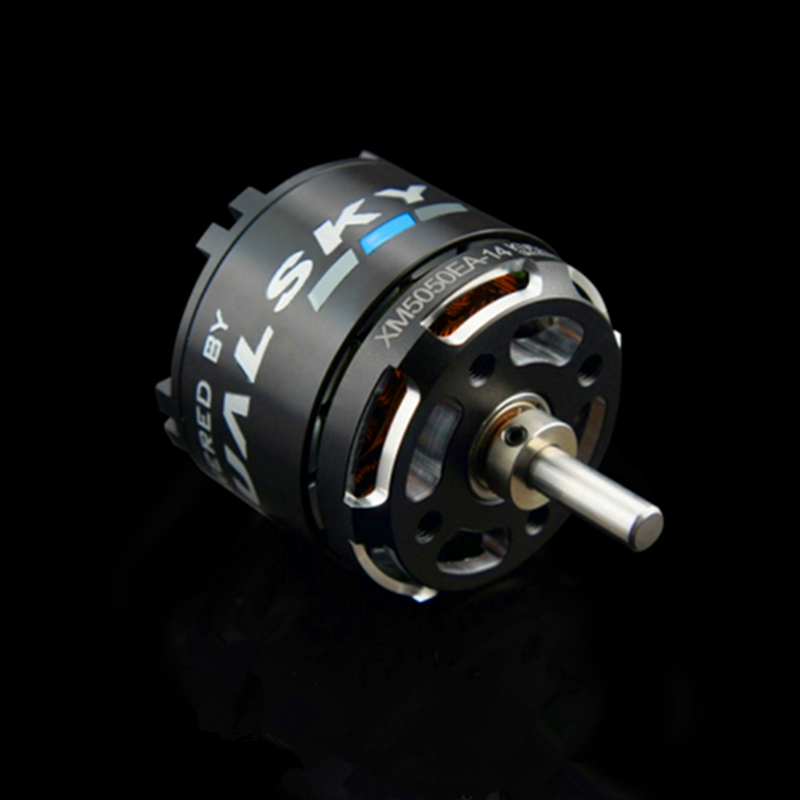

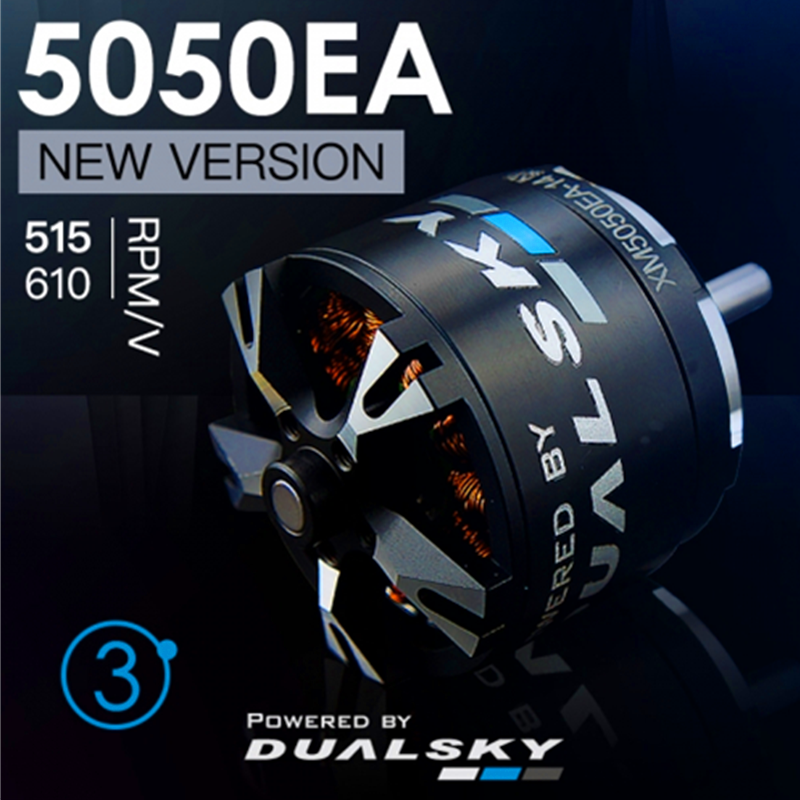

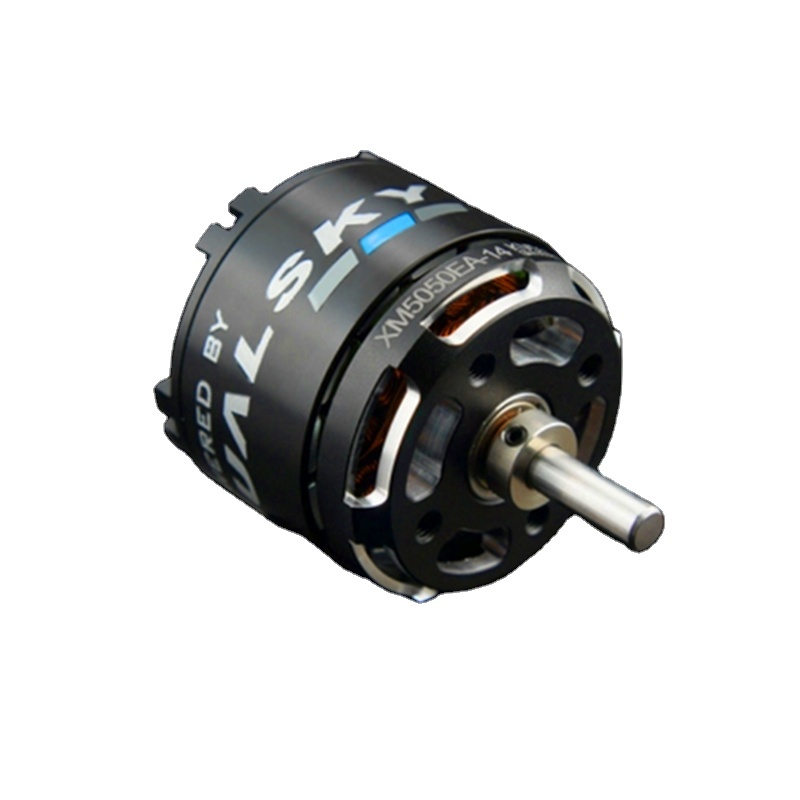

DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing
DUALSKY XM5050EA 515KV 610 18.5V/22.2V Voltage 3-generation Brushless Motor For 70E Fixed-wing

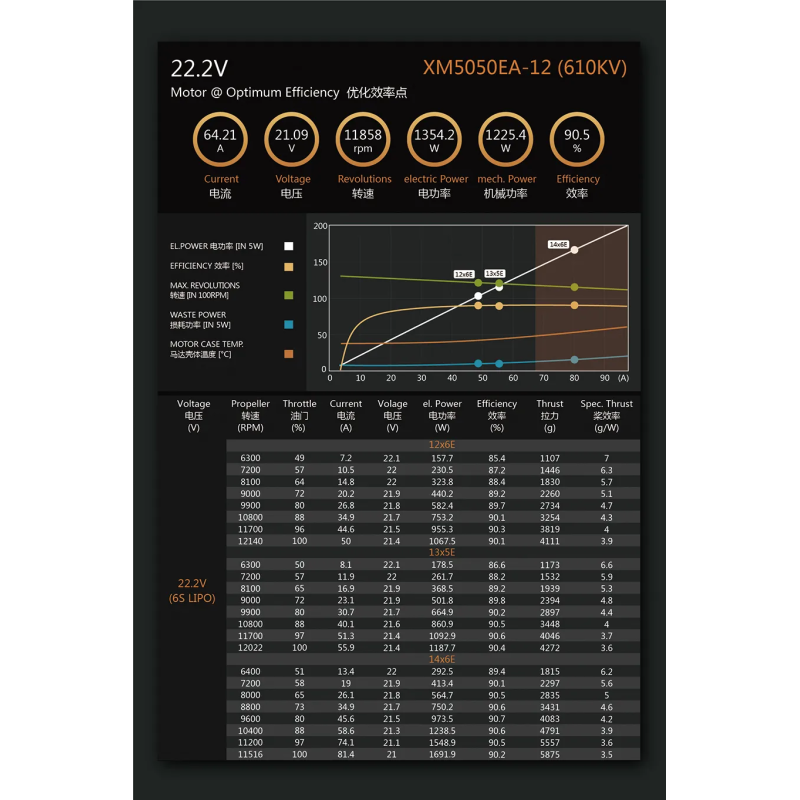

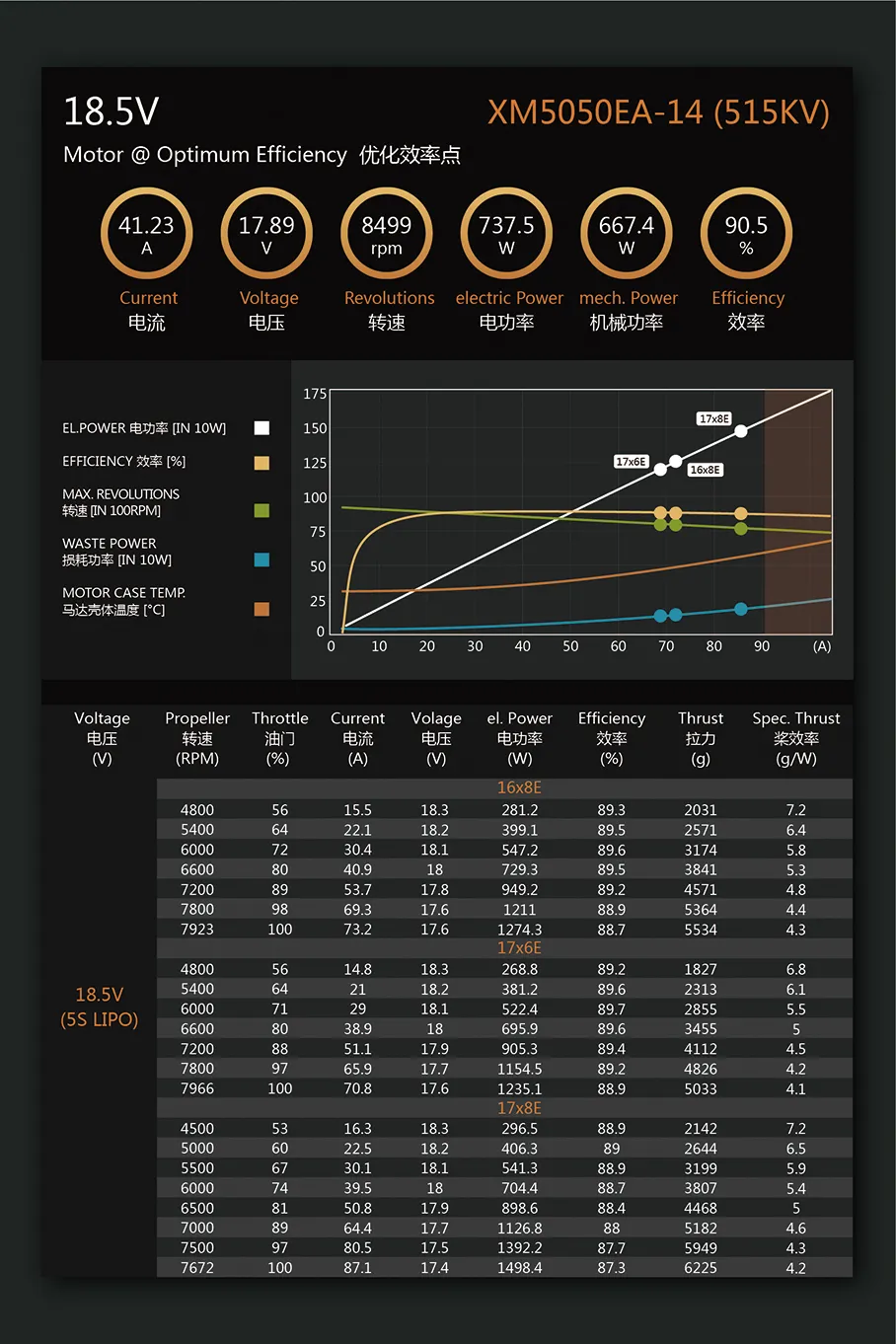

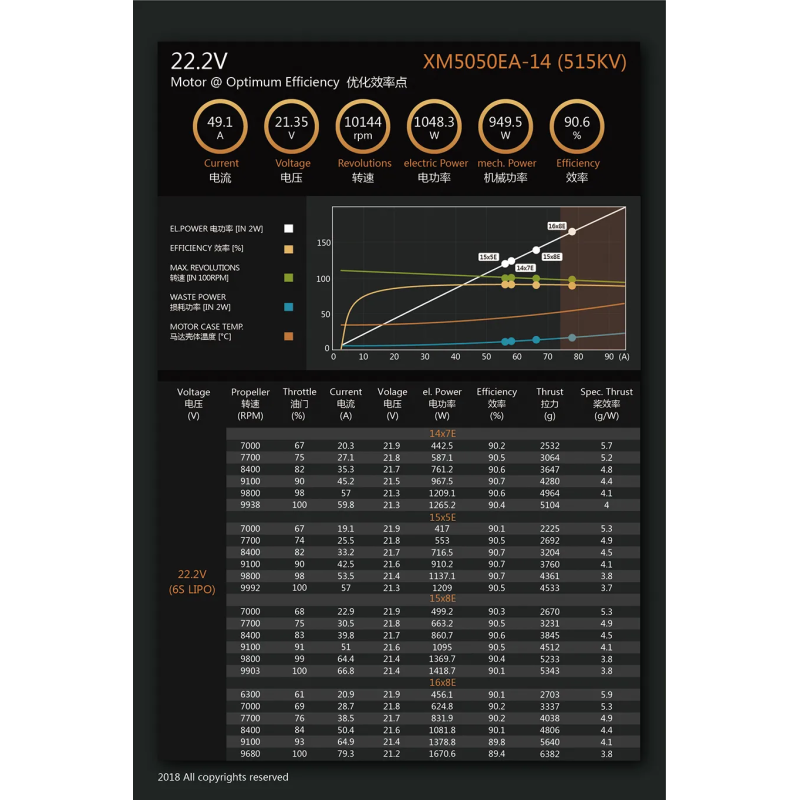

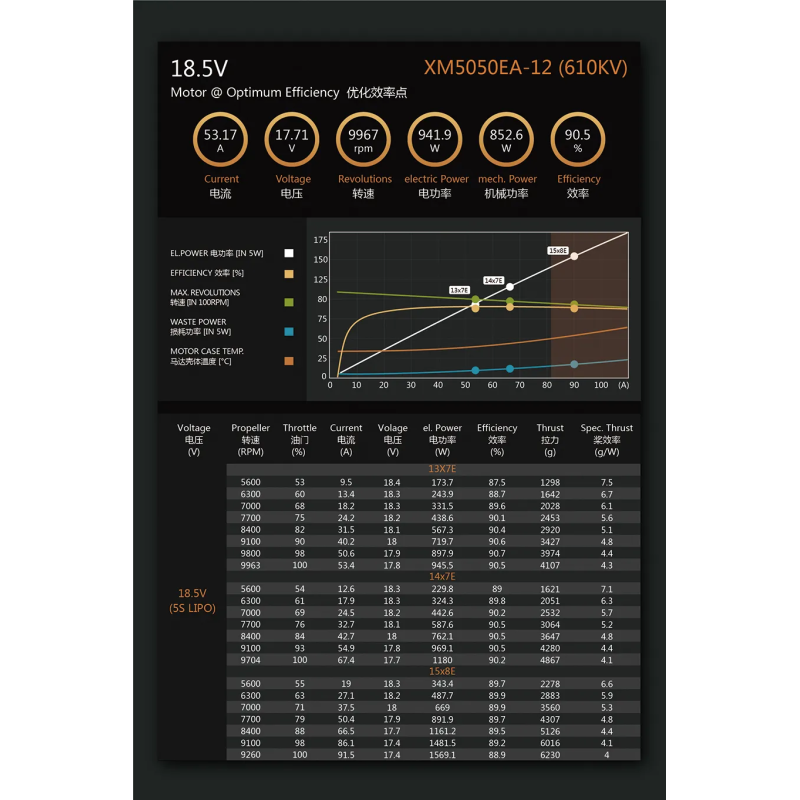

Specification
EA V3 SERIES
XM5050EA - 12
XM5050EA - 14
SKU
51863
51864
KV
610
515
Weight (g)
290
292

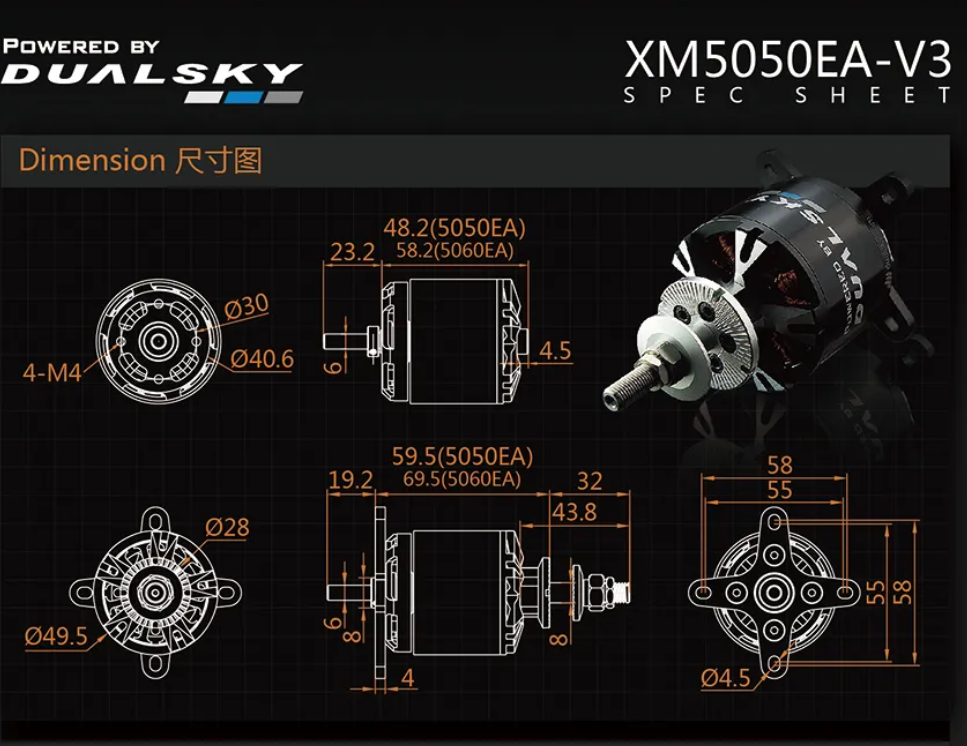

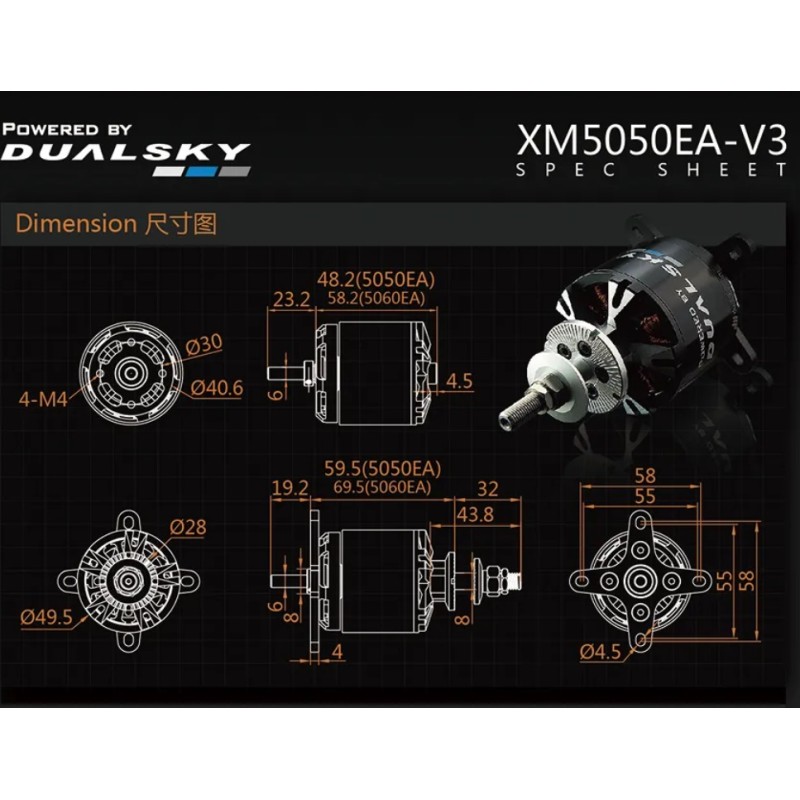

Dimensions (D x L) [mm]
49.5x48.2
Diameter of Shaft (mm)
6.0
Spec. of Mounting Holes
4 - M4, 30/30
Input Connectors
DB4
Dimensions of Stator(mm)
4120
Slots & Poles
12N14P
Ri(mOhm)
14.2
18.5
Io@10V (A)
1.8
1.5
No. of Cells (LiPo)
5 ¹ - 6
5.6 ¹
Efficiency Current[A]
35.0
32.5
Burst Current(15S)[A]
70
65
Peak Power(15S)[W]
1400
1560
Peak Torque [N.M]
1.37
1.51
Recommended ESC
SUMMIT 100
SUMMIT 100
Recommended Propeller
5S ¹: 15x8
6S: 12x10E, 14x6E
5S: 16x8E, 17x8E
6S ù: 15x8E, 16x8E ²
Application
70E, 50 - 60 2 - stroke. Up to.82 4st
Packing & Delivery
DUALSKY XM5050EA V3 Brushless Motor x 1
