Specifications
private mold :
Yes
Channels :
16 channels of S.BUS 5 channels of PWM
Place of Origin :
China, GuangdongChina
Price :
$485.80-599.80 / piece
Radio Control Style :
Remote Controller
Model :
MK32
Power :
Battery
Plastic Type :
ABS
Brand Name :
SIYI
compatible brand :
DJI
Battery Life :
10Hours
MOQ :
2 pieces
Material :
Plastic
Max Transmission Range :
15 kilometers (unobstructed free of interference)
Monitor :
7-Inch High Definition and High Brightness LCD Tou
Description
Product Features
Material Plastic
place of origin Guangdong,China
Radio Control Style Remote Controller
Max Transmission Range 15 kilometers (unobstructed, free of interference)
Channels 16 channels of S.BUS, 5 channels of PWM
Battery Life 10Hours
Monitor 7-Inch High Definition and High Brightness LCD Touchscreen
brand name SIYI
Model MK32
Plastic Type ABS
private mold Yes
Power Battery
Technical

Overall
Model: MK32

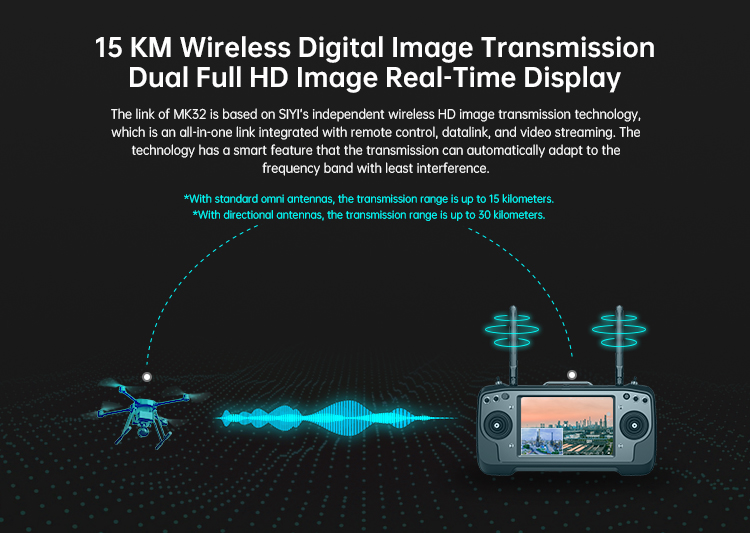

Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl

Ground Station

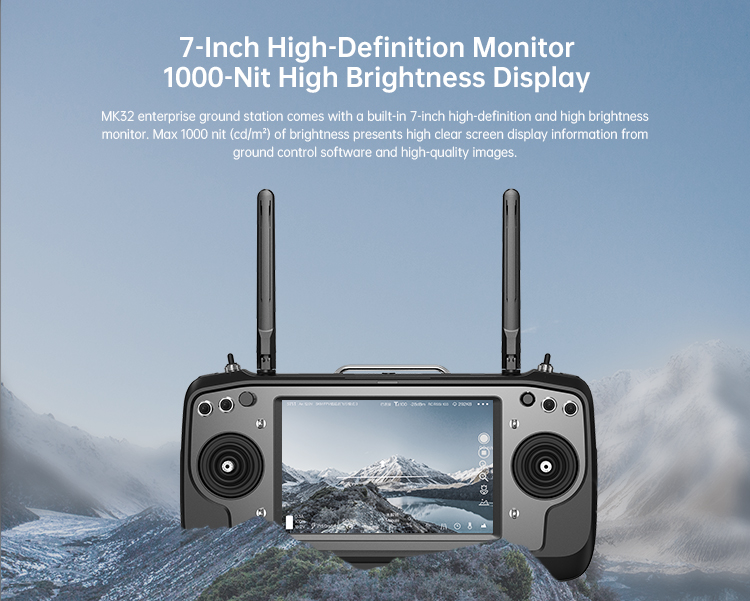

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours

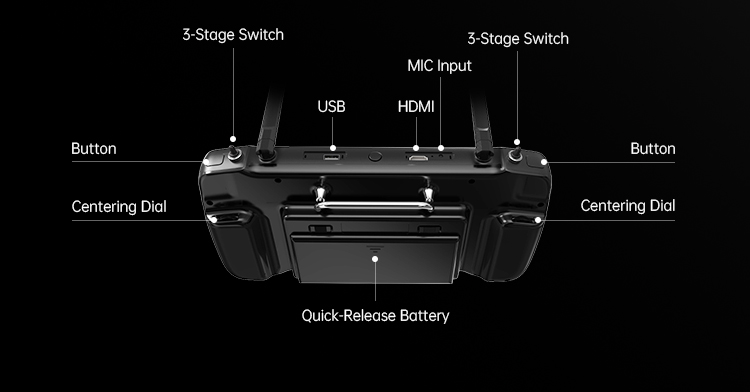

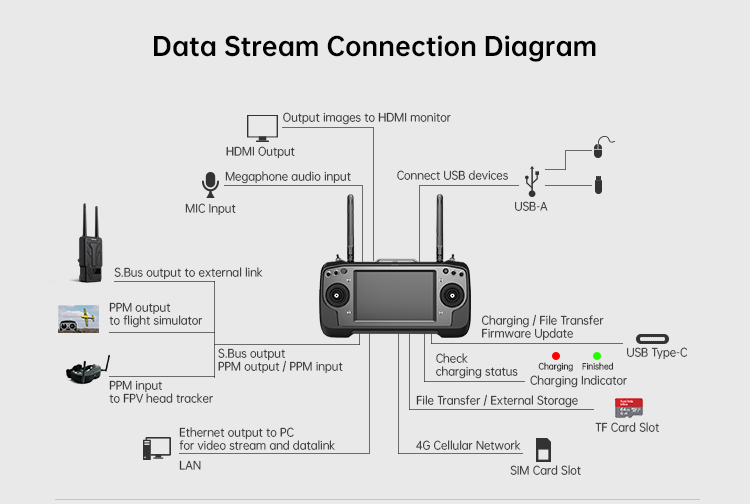

Interface & Ports:
- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- 4G Cellular Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50°C

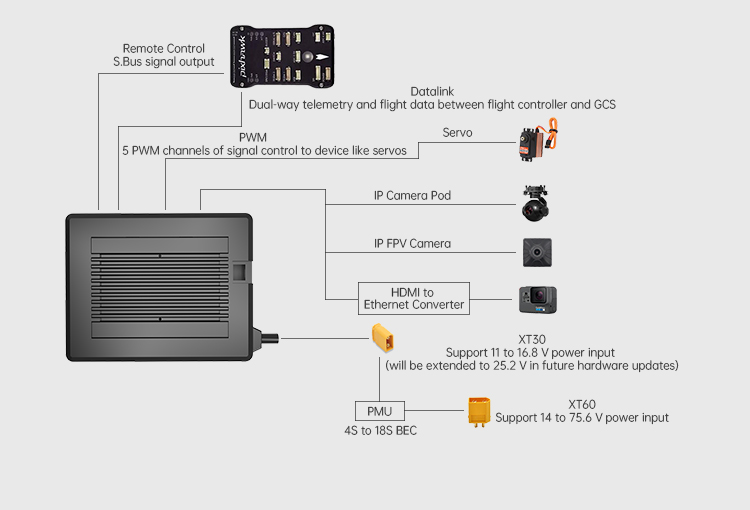

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50°C

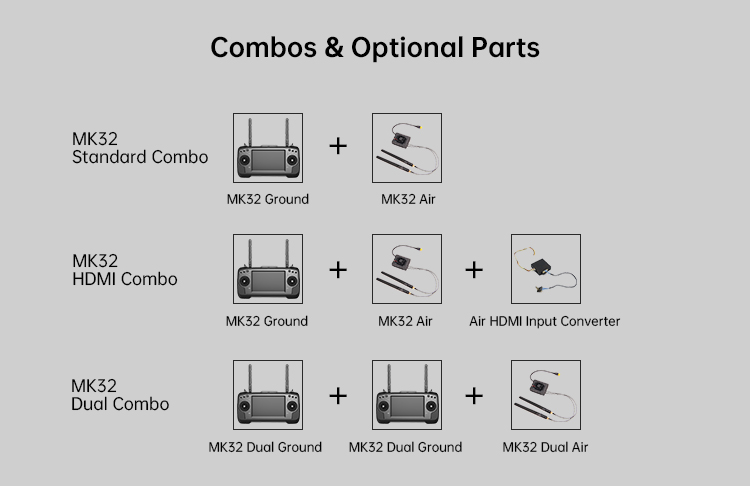

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)
Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50°C
Dimensions: 42 x 41 x 11 mm
Weight: 26 g
