Specifications
Brand Name :
other
Price :
$3.66 / piece
Model :
ACM0302
private mold :
No
Material :
Metal, Plastic
Place of Origin :
China, GuangdongChina
compatible brand :
other
MOQ :
1 piece
Description
Product Features
ModelACM0302
MaterialPlastic, Metal
place of originGuangdong,China

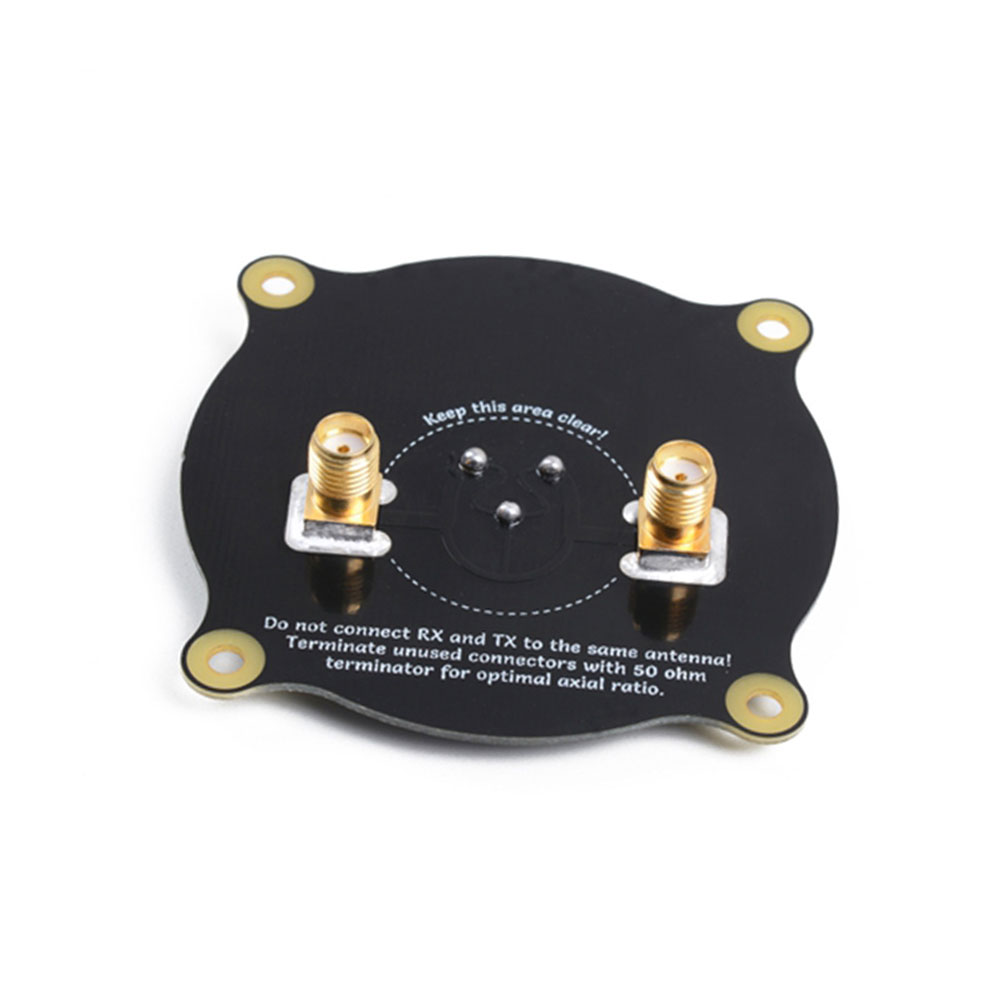

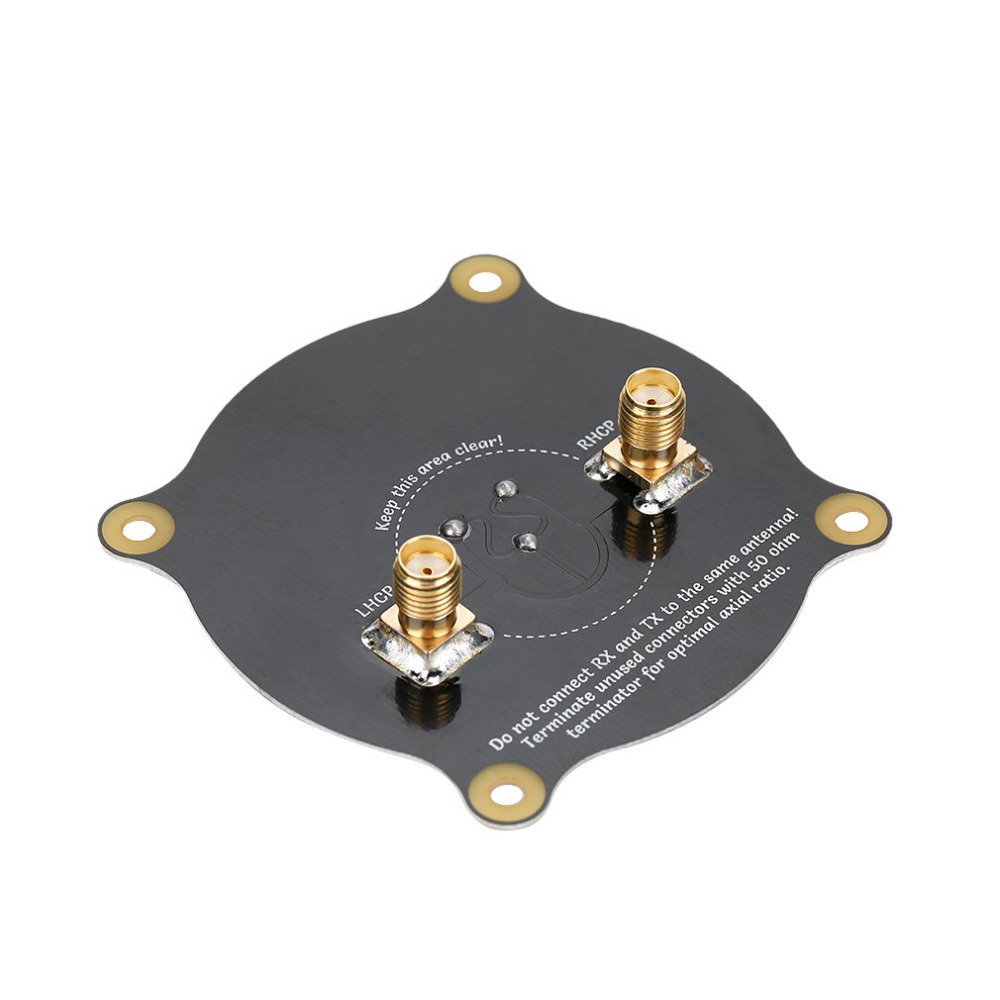

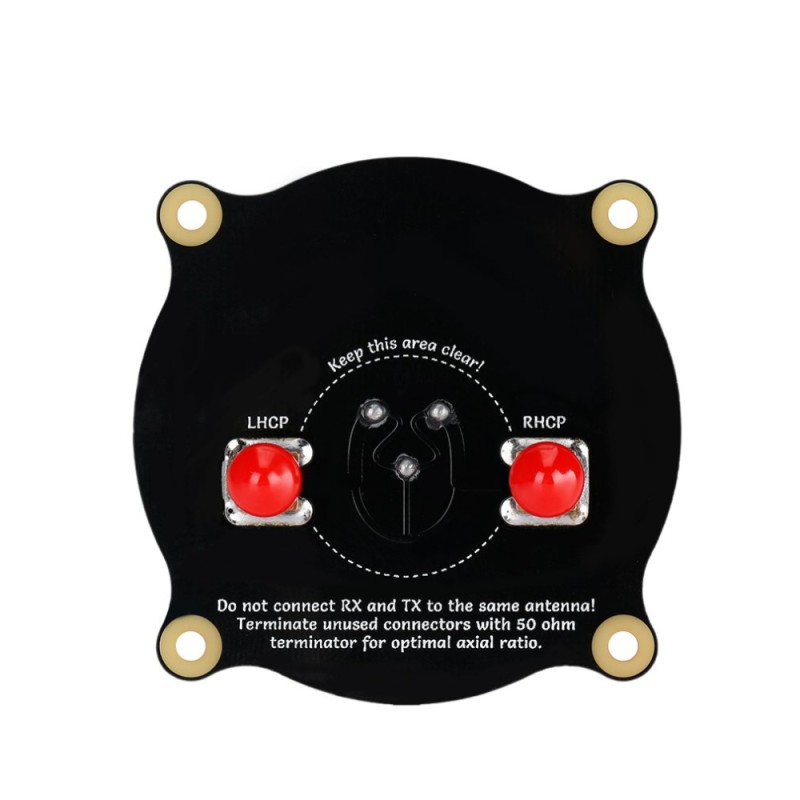

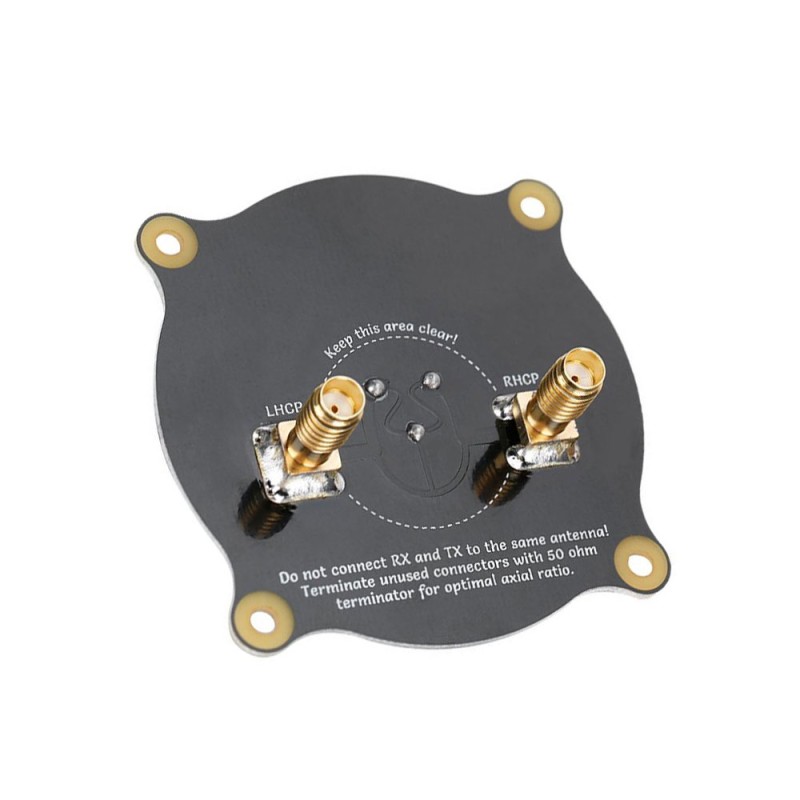

5.8GHz Triple Feed Patch Antenna SMA / RP SMA Directional Circularly Polarized Antenna
Product Description
5.8GHz Triple Feed Patch Antenna SMA Directional Circular Polarized Antenna for FPV Racing Drone

Features:
The Triple Feed Patch antenna is a directional circularly polarized antenna.
Good radiation efficiency.
Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz.
Good axial ratio, not just directly perpendicular to the patch but also off-center.
Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Description:
Cheap and easy to manufacture with high accuracy, even for a hobbyist.
Specifications:
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 - 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 9.4 dBi
Half power beam width: 55° (horizontal and vertical)
Radiation efficiency: 83.5%
Weight:20.7g
Color: black

Package include:

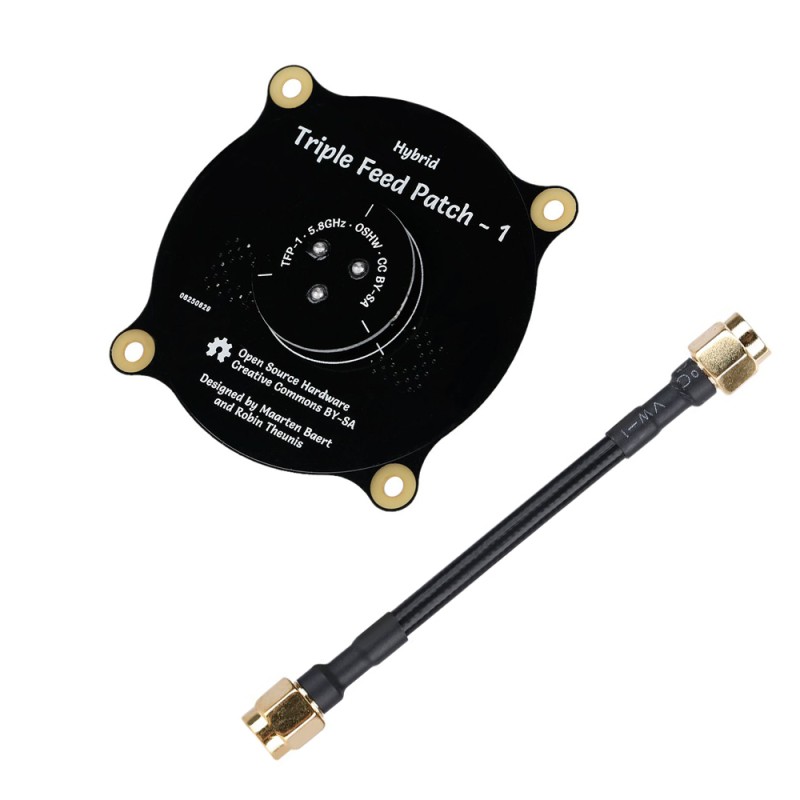

1 x Black Triple Feed Patch Antenna

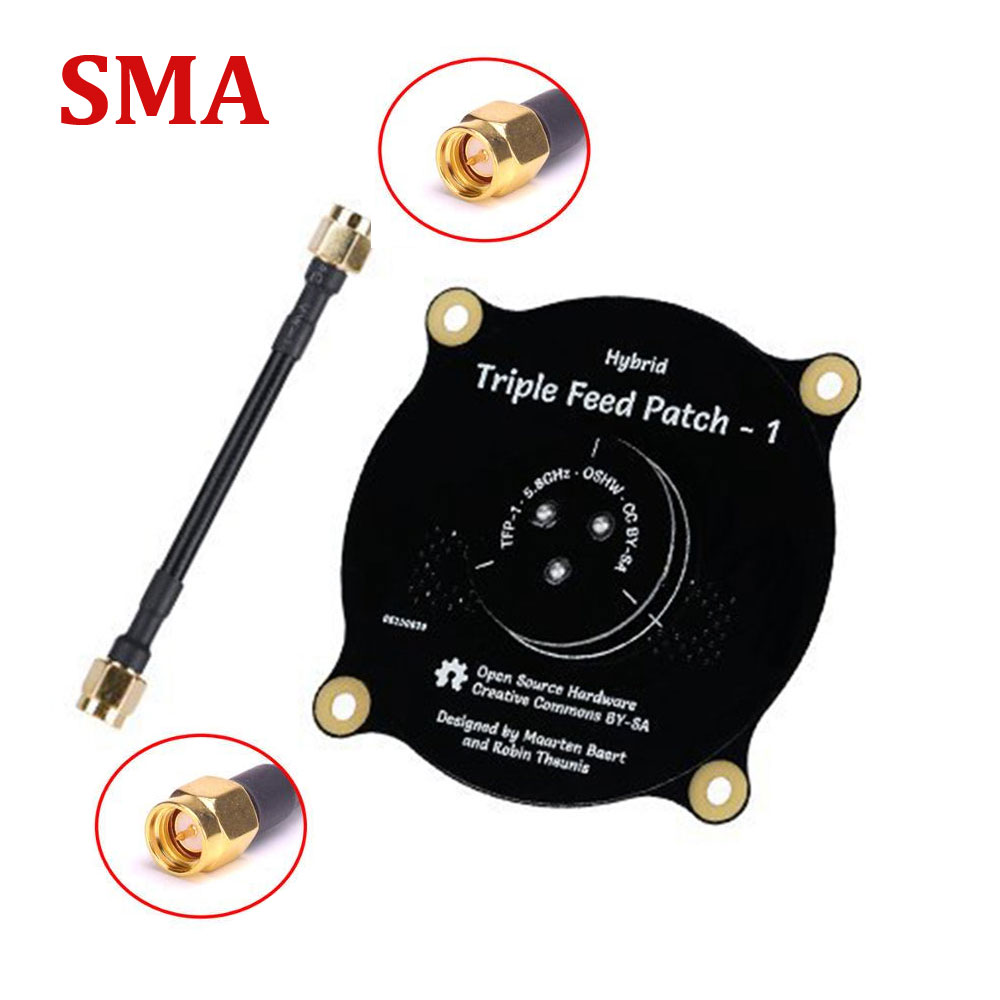

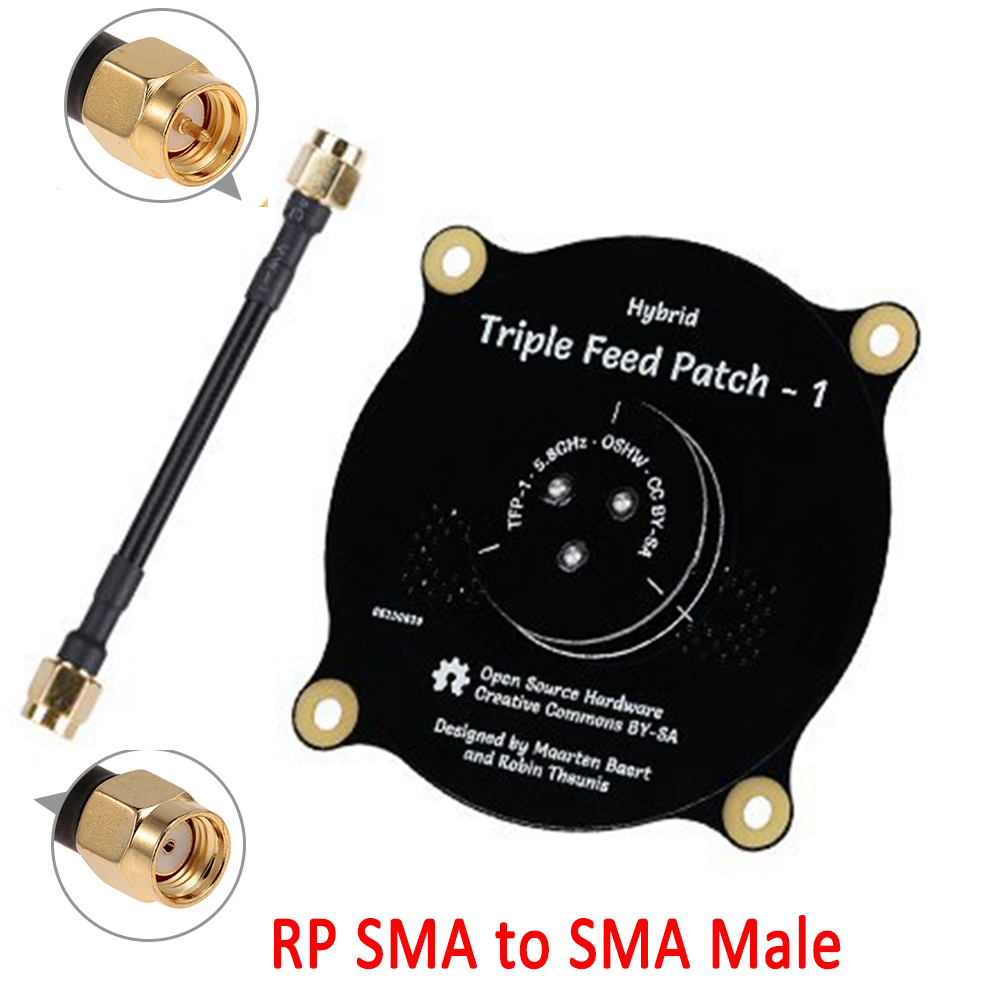

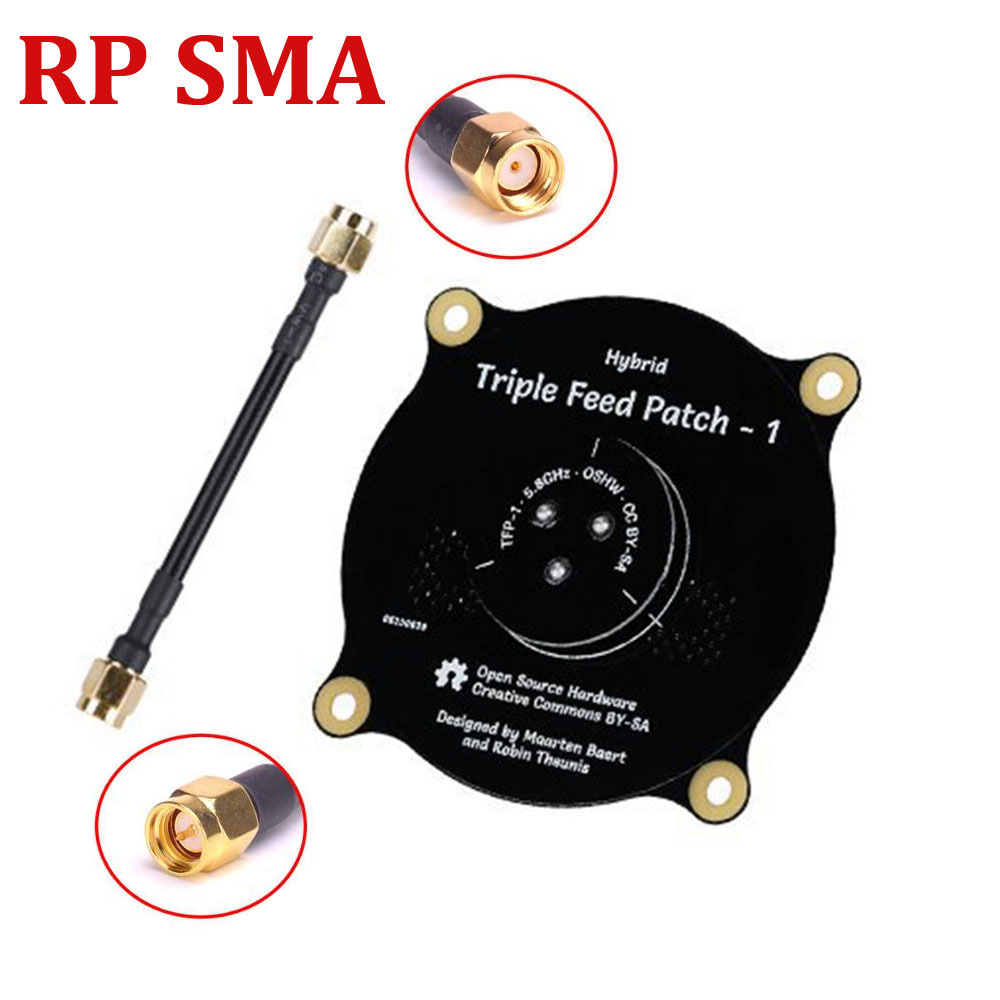

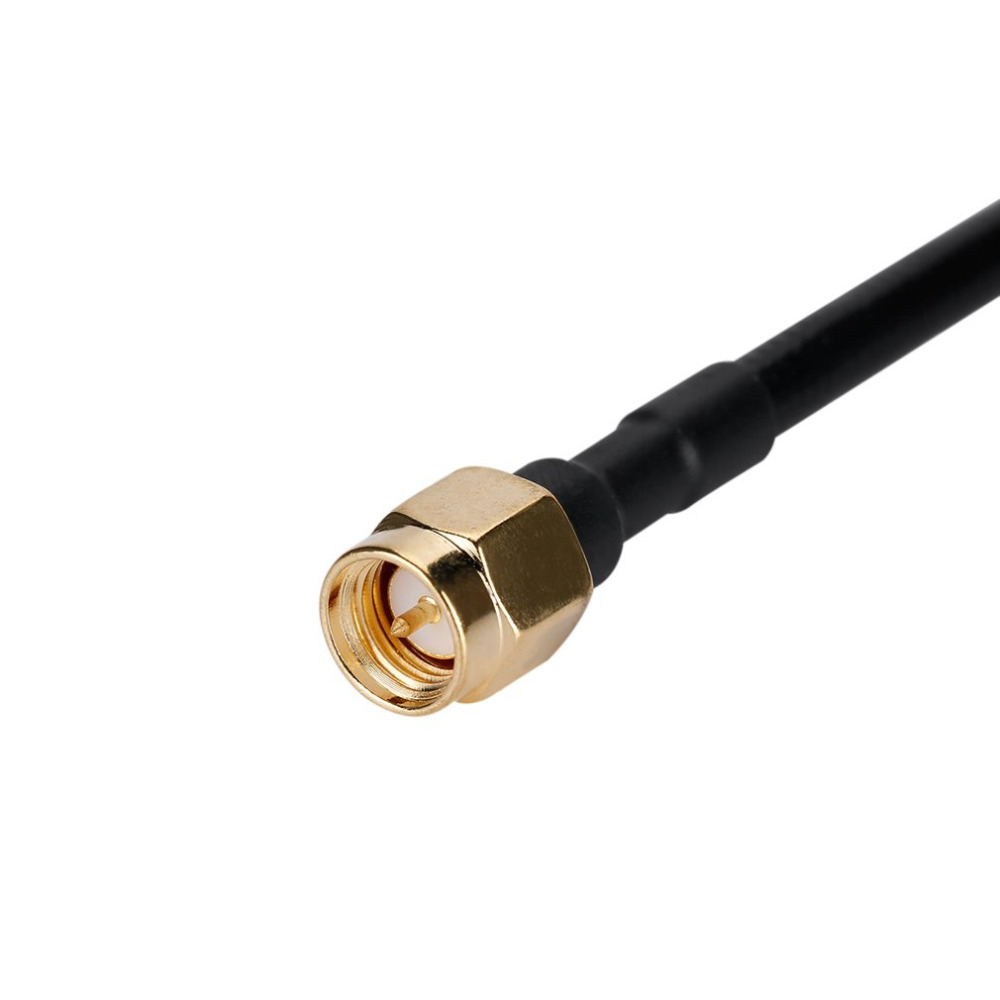

1 x semi-rigid coax (SMA male - SMA male/ RP SMA male - SMA male as your choice)
