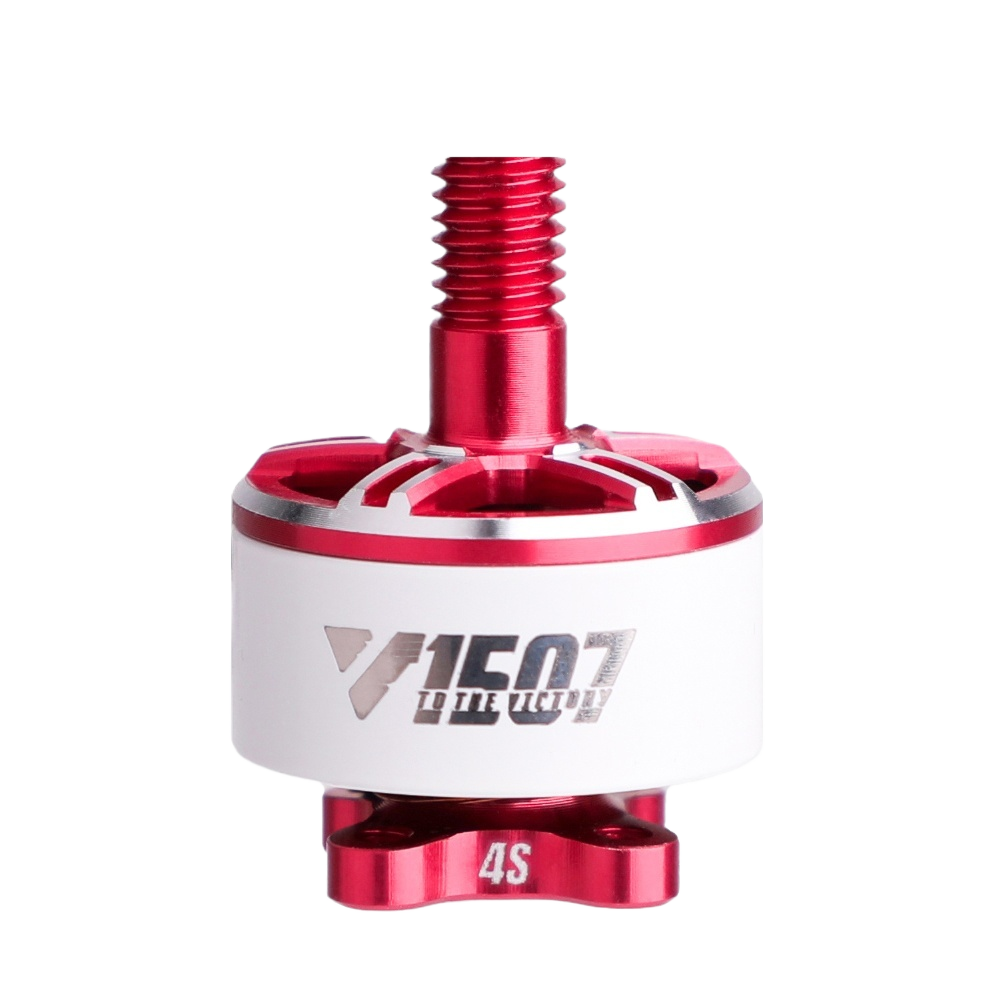

T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material

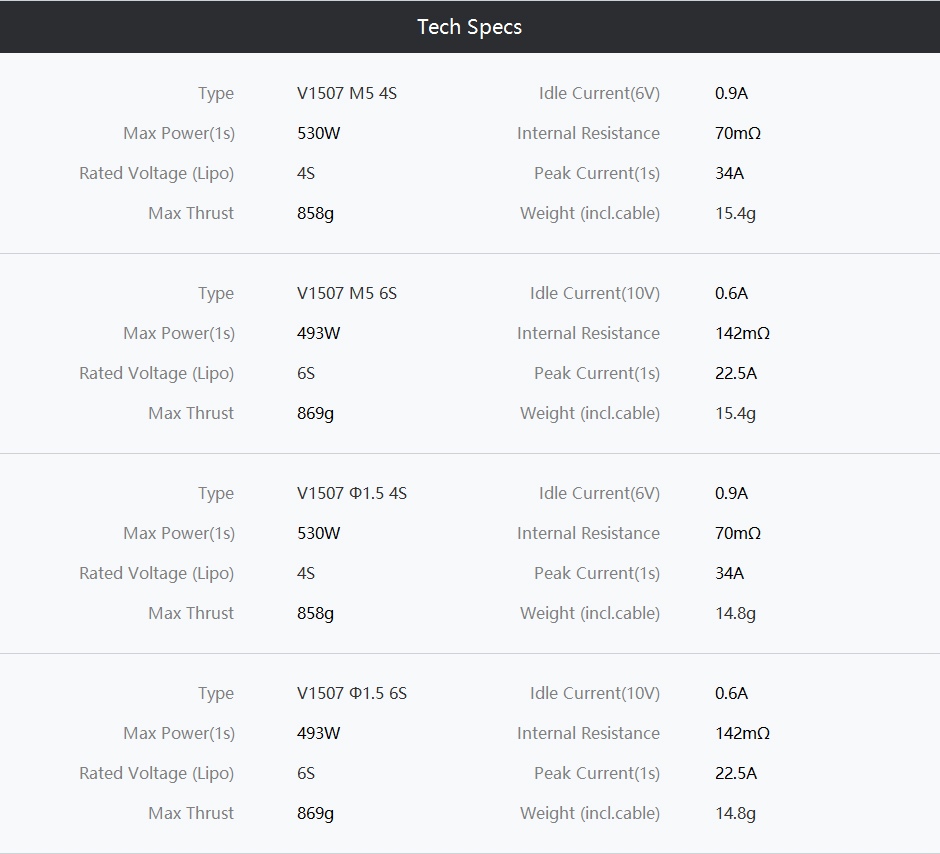

Specifications
Place of Origin :
China, Jiangxi China
Typical Applications :
UAV FPV Drone
Brand Name :
RuiJi
Idle Current :
0.6A/0.9A
Price :
$13.90-18.90 / piece
Material :
Aluminum, Aluminum alloy, Carbon Fiber
Configuration :
12N14P
MOQ :
1 piece
Max. Power(1S) :
530W/493W
Certification :
CE ROHS FCC
Peak Current(1S) :
34A/22.5A
Weight :
15.4g
private mold :
Yes
type :
Drone Parts
Max. Thrust :
858g
compatible brand :
Others
Description
Product Features
Configuration 12N14P
Peak Current(1S) 34A/22.5A
Material Aluminum Alloy, Carbon Fiber
Max. Power(1S) 530W/493W
place of origin Jiangxi, China
type Drone Parts
Idle Current 0.6A/0.9A
Weight 15.4g
Certification CE ROHS FCC
Typical Applications UAV FPV Drone
brand name RuiJi
private mold Yes
Max. Thrust 858g
Products Name V1507
Rated Voltage(Lipo) 4S 6S
T-Hobby V1507 1.5mm 5mm Shaft Electric Brushless Machine Multi-axis FPV Racing 4S 6S Remote Mini UAV RC Made Lipo Material
Product Description
Note:We are T-MOTOR Official factory supplier.
OEM & ODM are available.
Pls send inquiry for mass order discount price or custom service.
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material

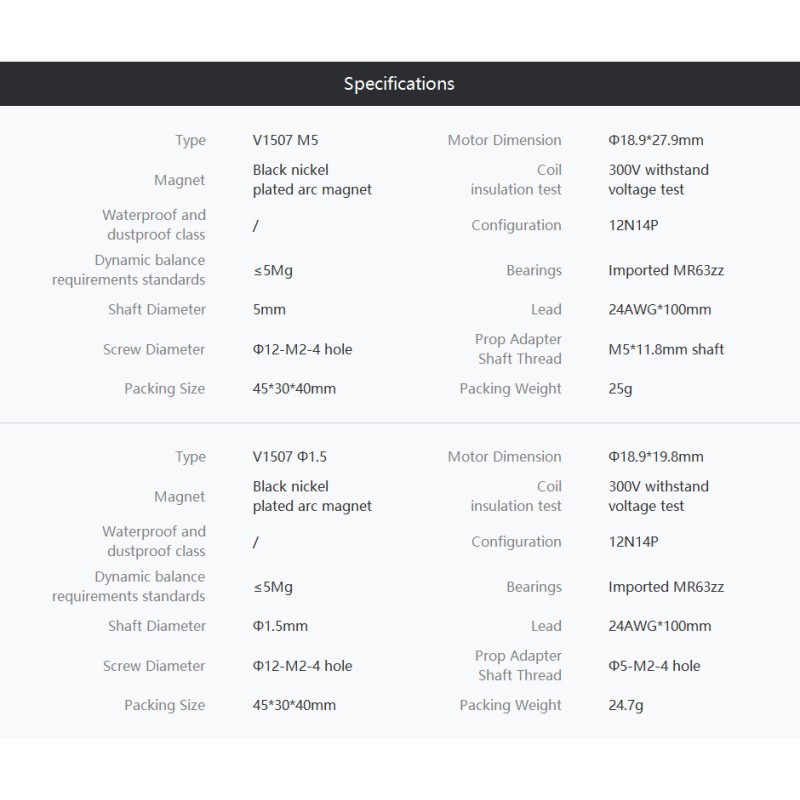

Type: V1507 M5

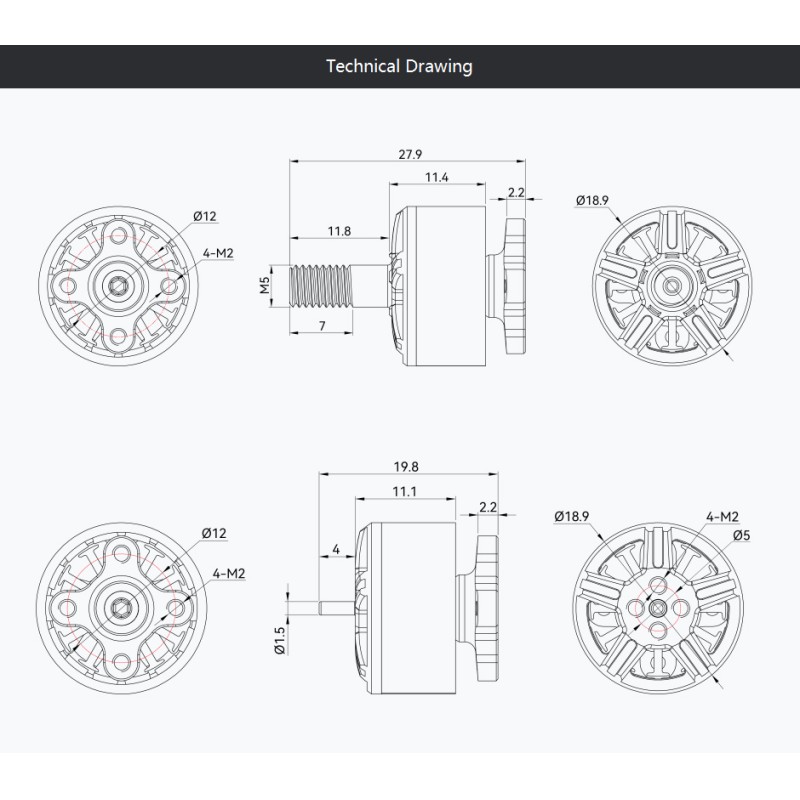

Motor Dimensions
Motor Dimensions
Magnet
Magnet
Dynamic balance requirements standards
Dynamic balance requirements standards
Shaft Diameter
Shaft Diameter
Screw Diameter
Screw Diameter
Packing Size
Packing Size
Coil insulation test
Coil insulation test
Configuration
Configuration
Bearings
Bearings
Lead
Lead
Prop Adapter Shaft Thread
Prop Adapter Shaft Thread
Packing weight
Packing weight
Type: V1507 1.5
Motor Dimensions
Motor Dimensions
Magnet
Magnet
Dynamic balance requirements standards
Dynamic balance requirements standards
Shaft Diameter
Shaft Diameter
Screw Diameter
Screw Diameter
Packing Size
Packing Size
Coil insulation test
Coil insulation test
Configuration
Configuration
Bearings
Bearings
Lead
Lead
Prop Adapter Shaft Thread
Prop Adapter Shaft Thread
Packing weight
Packing weight
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
Certifications
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
All certificates needed can be provided, pls contact.
Customer Review
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
Why Choose Us
T-MOTOR HOBBY is committed to being a leader of model airplane sports.Integrating the brainstorming and test certification of
T-MOTOR Hobby global champion pilots, T-MOTOR Hobby creates opportunities for pilots to challenge the speed limit. Born for
competition, crazy for speed and make your champion dream come true. "Make your flight easier and make FPV more enjoyable" is the
service aim of T-MOTOR Hobby.

T-MOTOR R&D team are trustworthy with years of experience in design and test flight. They adopt innovative technology for products
of high quality.
Motor series with patent from T-MOTOR available:

F-Series : Aiming at FPV racing and free flight are for top-level FPV competition.
MN-Series: Mainly for aerial photography with unique design.
U-Series : For industrial and commercial applications. U-Series consisting of power and efficiency types, make breakthrough and
meet various demands from customers. U-series are occupying more than 50% of the market.
Combo Pack: Cost-effective products that enables more users to approach T-MOTOR products.
Antigravity Series : Light weighed motors upgrade your propulsion system.

In the upcoming years, T-MOTOR will launch more series of remarkable quality, together with corresponding ESCs and Propellers. A
whole set of propulsion system will be available for different users.

In the future, T-MOTOR will develop products orienting VOC , intended to achieve better products performance and quality.

T-MOTOR, to be with you, escorting for our flight dream.

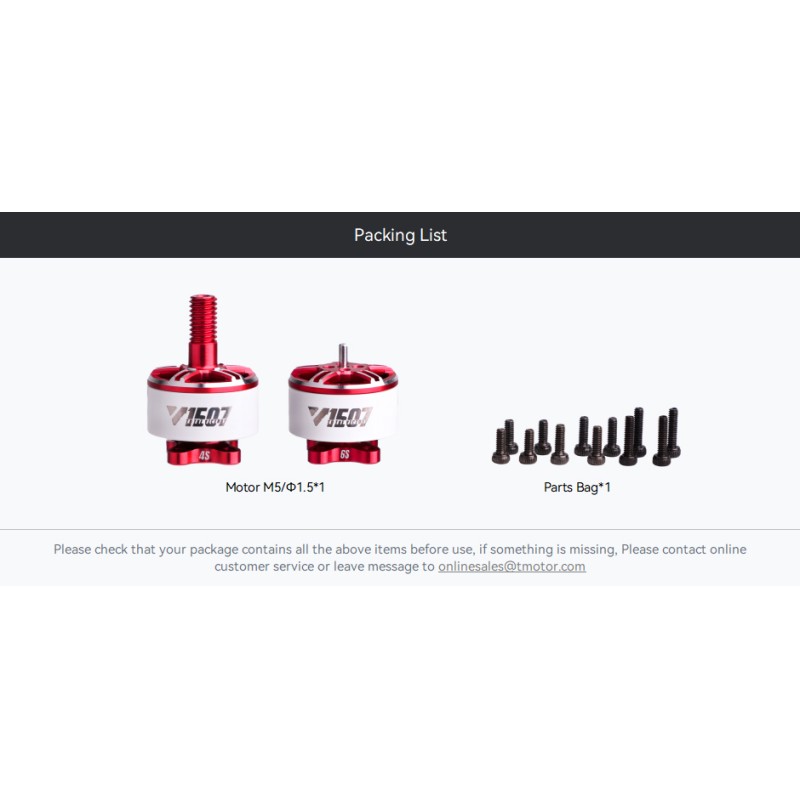

Packing & Delivery
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
T-Hobby V1507 1.5mm 5 Shaft Brushless Machine Multi-Axis Fpv Racing 4s 6s Remote Mini Uav Rc Made Lipo Material
FAQ
Q1: Are you factory supplier?
A: Yes,we are factory with more than 25 years experience. We can do both OEM and ODM. We have our
own R&D team.

Q2: What is your MOQ?
A: MOQ is 1 pcs.

Q3: Can I get a free sample?
A: Generally we don't provide free sample, but we can return sample cost when you place format orders.

Q4: How long is the delivery time?
A: In general, the delivery time is 3 to 7 working days.

Q5: What is your guarantee term?
A: The warranty period for our products is one year along with technical support and free return.

Q6: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcome to visit our factory to learn and check the robot motor.

Q7: What are the payment methods?
A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card.

Pls feel free to send inquiry for more details, we are on-line 24 hours for you!!!
