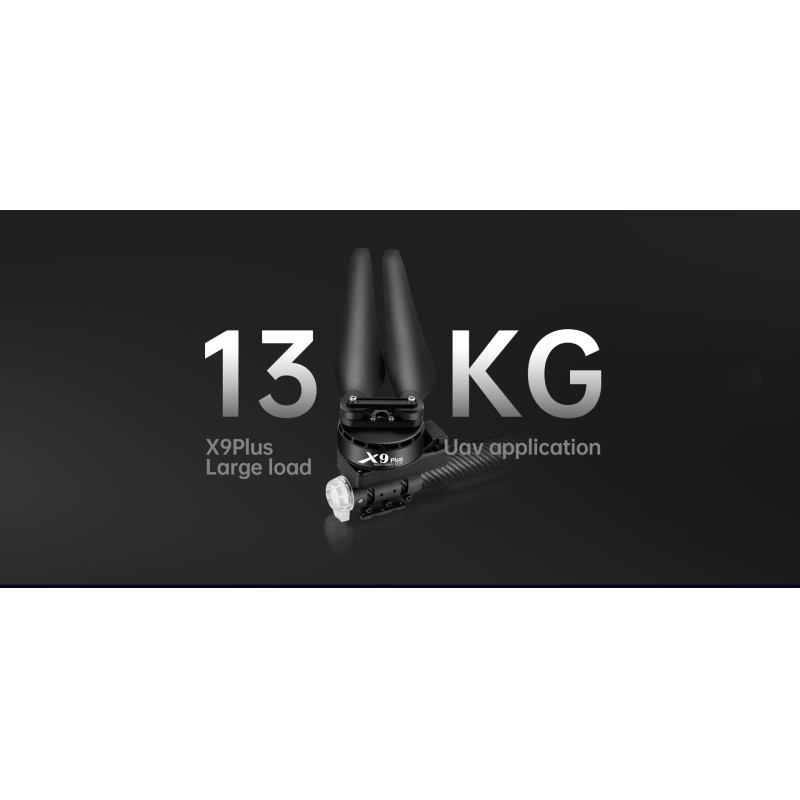

Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Specifications
MOQ :
1 set
Material :
Aluminum, Aluminum alloy
Total Weight :
1760g
Price :
$10.30-196.70 / set
Operating Temperature :
-20~50°C
Place of Origin :
China, Guangdong China
Propeller :
36190
Battery Plate/Hook :
12-14S(LiPo)
private mold :
Yes
Tube Diameter :
D40mm
Brand Name :
Hobbywing
KV Rating :
100rpm/V
Waterproof Rating :
IPX6
compatible brand :
DJI
Type :
Drone thrust system
Maximum Thrust :
27kg/Axis
Description
Product Features
KV Rating 100rpm/V
Battery Plate/Hook 12-14S(LiPo)
Operating Temperature -20~50°C

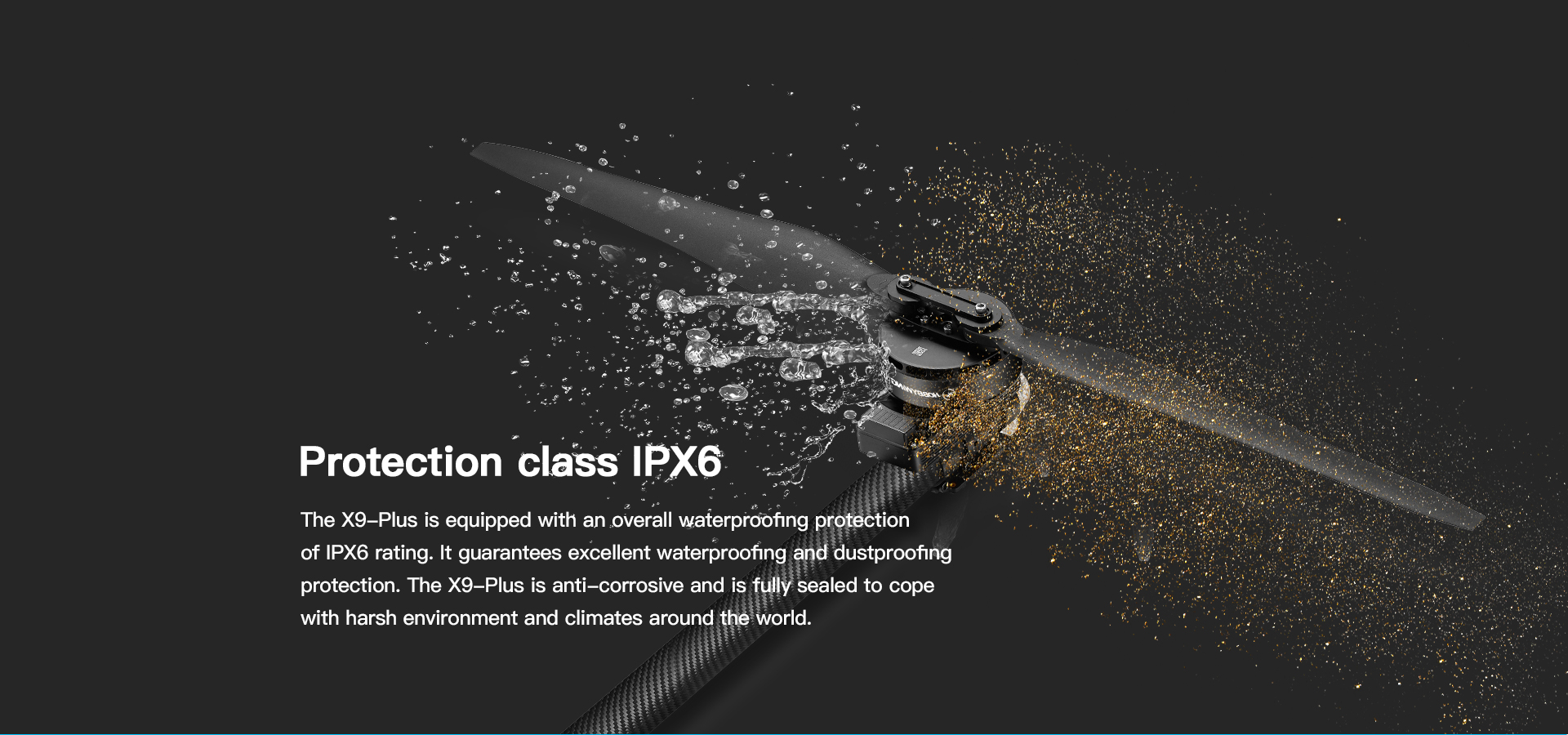

Waterproof Rating IPX6
Material Aluminum
place of origin Guangdong, China
Total Weight 1760g
Propeller 36190
Type Drone thrust system
brand name Hobbywing
private mold Yes
Maximum Thrust 27kg/Axis
Tube Diameter D40mm
Shenzhen Hobbywing Technology Co., Ltd.

Why Choose US?
Leading Drone Brushless Thrust System Manufacturer in China

- With professional technical team support
- 100% product quality protection
- 100% on-time shipment protection
- 100% payment protection by Alibaba
- Skilled workers and strict quality inspection

>>> We're Hobbywing Official Store.
The first company in China to engage in the R&D of brushless power systems for drones and RC model products. With 20 years experience in this field.
Bulk Orders? Pls Contact US to get the BEST price!

Product Number
Hobbywing X9 Plus
Maximum Thrust
27kg/Axis (53.6V, Sea Level)
Recommended Takeoff Weight
11-13kg/Axis (53.6V, Sea Level)
Recommended LiPo Battery
12-14S(LiPo)
Combo Weight
1760g
Operating Temperature
-20°C~50°C
Motor
Stator Size
96*20mm
KV Rating
100rpm/V
Bearing
Bearings imported from Japan
ESC
Recommended LiPo Battery
12-14S LiPo
PWM Input Signal Level
3.3V/5V(Compatible)
Throttle Signal Frequency
50-500Hz
Operating Pulse Width
1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage
60.9V
Max. Input Current (Short duration)
120A(w/ Good Heat Dissipation)
Propeller
DiameterxPitch
36*19
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone
Hobbywing X9 Plus Dron Motor Combo High Speed Brushless ESC Propeller Strong Thrust System For Agriculture UAV Drone

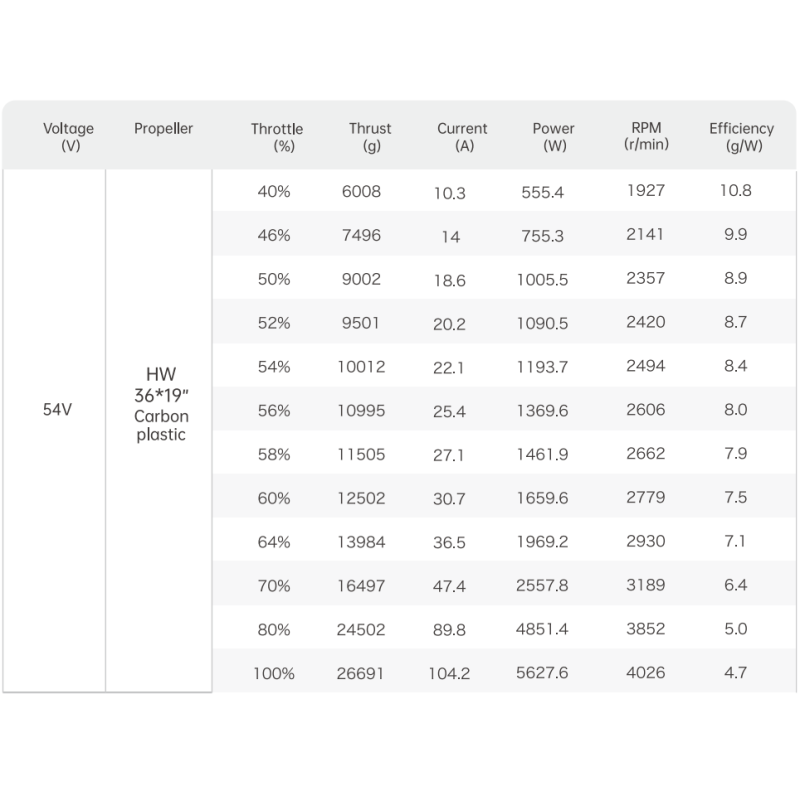

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
