Specifications
private mold :
Yes
Place of Origin :
Guangdong, China
compatible brand :
For fpv
MOQ :
3 pieces
Material :
ABS
Price :
$9.30 / piece
Brand Name :
bainianxing
Description

Dear:Please Contact Customer Service before Taking the Photo,Confirm inventory quantity and delivery time,Thank you!

One,Our Company Specializes in the Production ofGPSModule,Beidou Module,GPSmodule,GPSReceiver,GMOUSE,BU-1025TF GPSmoduleDefault Shipping Configuration:AdoptUBX-M10050-KBMulti-system PositioningChip,GPS+GALILEO+QZSSSignal output,,3.3VPower supply,Low power consumption:25mW,38400Baud rate,1HZUpdate Rate,TTLLevel Output,NMEA-0183Agreement Output,Size:28mm*27mm*7mm.Note:Built-InFlash,Can Change the Configuration Output.

two,BU-10205TF GPSModuleProduct Specifications:

Parameters

Instructions

The Characteristics of the Chip

Chip

UBX-M10050-KB

Receiving Mode

GPS L1 C/A,QZSS L1 C/A/S,GLONASS L10F,BeiDou B1I/B1C,Galileo E1B/C,Best Satellite Reception Positioning Mode:GPS+Beidou+GALILEO+QZSS+SBASOrGPS+GLONASS+GALILEO+QZSS+SBASSatellite Signal Output

Frequency

SBAS L1 C/A:WAAS,EGNOS,MSAS,GAGAN

channel

92-channel

Sensitivity

Tracking and Navigation

-167dBm

Recapture

-161dBm

Cold start

-148dBm

Hot Boot

-159dBm

Accuracy

Accuracy of Level

2.0m CEP

Speed accuracy

0.05m/s

Time Accuracy

30ns

Dynamic Heading Accuracy

0.3deg

Start time

Cold start

24S

Warm Boot

2s

Hot Boot

1S

Output Data

Baud rate

Default38400,

Output Level

UART TTLLevel

Output Protocol

NMEA-0183 agreement

Single stripGNSS

Reachable18Hz

StandardGNSS

1Hz-10Hz,Default1Hz

Output Signal

DefaultGPS+GALILEO+QZSSSignal output

Time Pulse Signal Frequency

0.25HZ~10MHZ

Limitation of Work

Height

80000m

Speed

500m/s

Acceleration Due to Gravity

4g

Electricity Consumption

Voltage

3.3V

Current

normal25mA@3.3V

Physics Parameters

Module size

28mm*27mm*7mm

Ceramic Antenna

25mm*25mm*4mm

Weight

12.9Grams

Output Statement

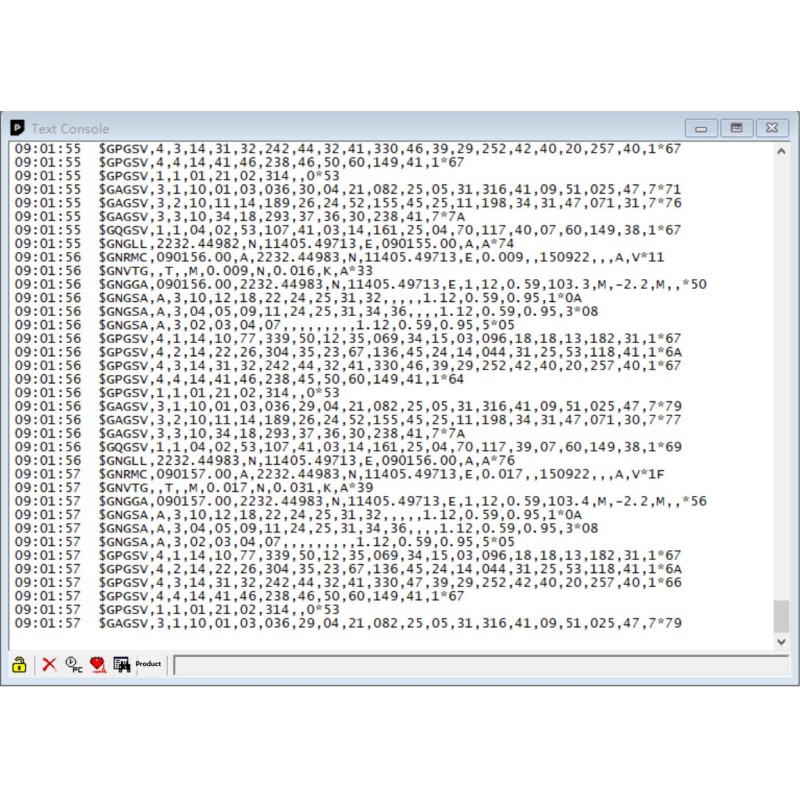

GNRMC GNVTG GNGGA GNGSA GPGSV GAGSV GBGSV/GLGSV GNGLL

environment

Operating Temperature

-40To+85

Storage Temperature

-40To+85

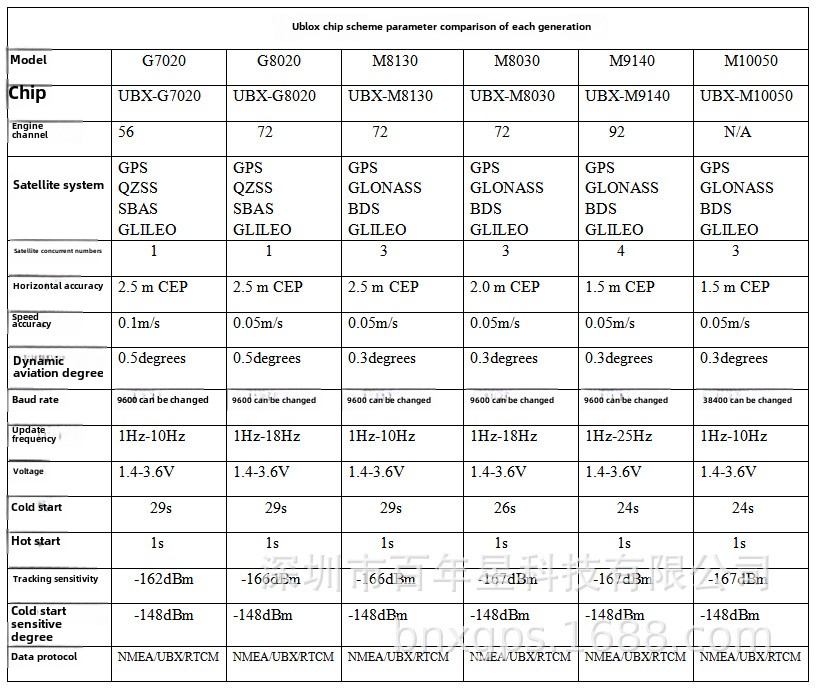

UBLOXComparison of Parameters of Chip Solutions for Various Generations:

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones AccessoriesM10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

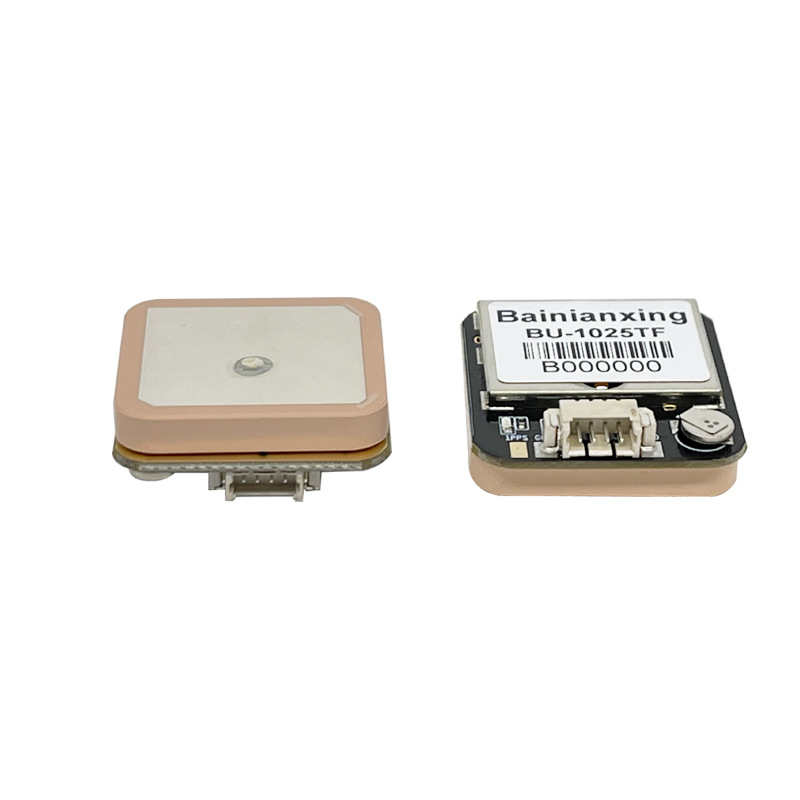

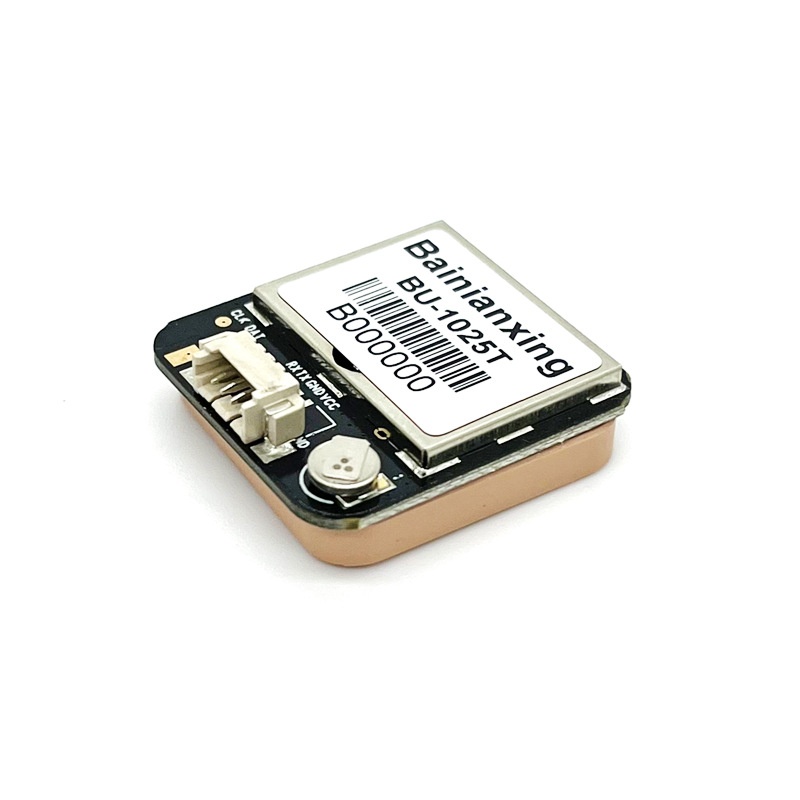

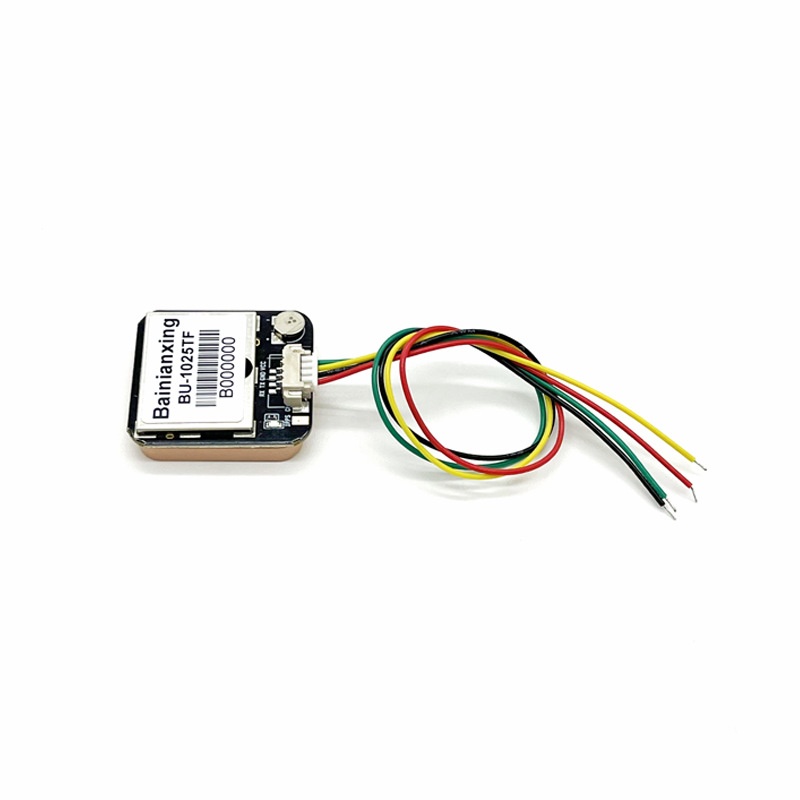

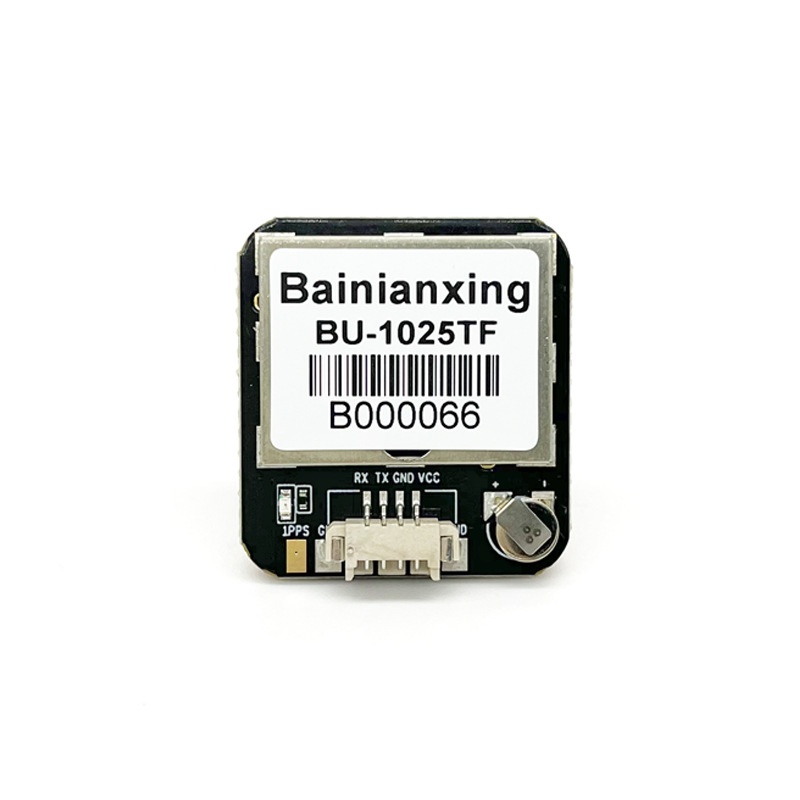

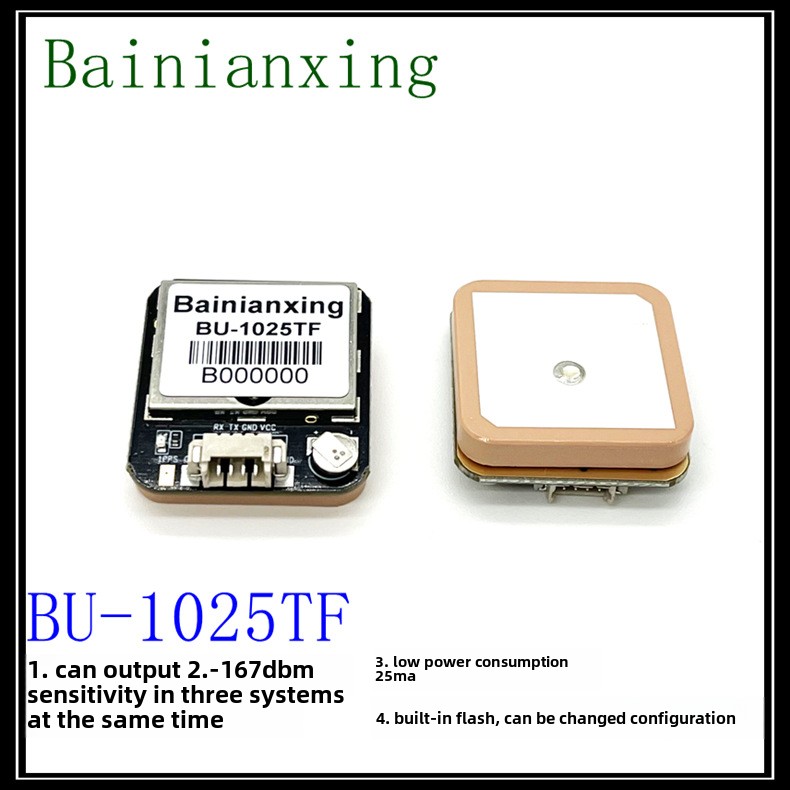

BU-1025TF GPSModule Product Image:

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories
M10 Chip BDS GPS Multi-System BU-1025TF Antenna Low Power Consumption Positioning Module for Drones Accessories

Specification
item value
place of origin China
brand name bainianxing
private mold Yes
compatible brand For fpv
Material Abs
Company Introduction

The company has been deeply involved in the photoelectric camera module industry for many years, and the product range has been continuously enriched and the production scale has continued to expand. The company strictly controls product quality and has passed ISO9001, ISO45001, ISO14001, IATF16949, QC080000, ESD S20.20 and other quality and management system certifications. With high-quality products and services, the company adheres to service first, quality first, innovation and progress, and has won the recognition of many customers in the industry

FAQ

1. who are we?
We are based in Guangdong, China, start from 2023,sell to Western Europe(45.00%),Eastern Europe(20.00%),Mid East(15.00%),North America(5.00%),South America(5.00%),Oceania(3.00%),Southern Europe(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Southeast Asia(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
FPV Drone/FPV Accessories/Carbon Fiber Frame/Brushless Motor/Video Transmission

4. why should you buy from us not from other suppliers?
We are an FPV UAV company that integrates R&D, production and sales. Our main products are 7-inch FPV, load capacity 2.5KG, flight 5Km, 10-inch FPV, load capacity 3.6KG, flight 8Km, we still have Cost-effective fpv drones parts.
