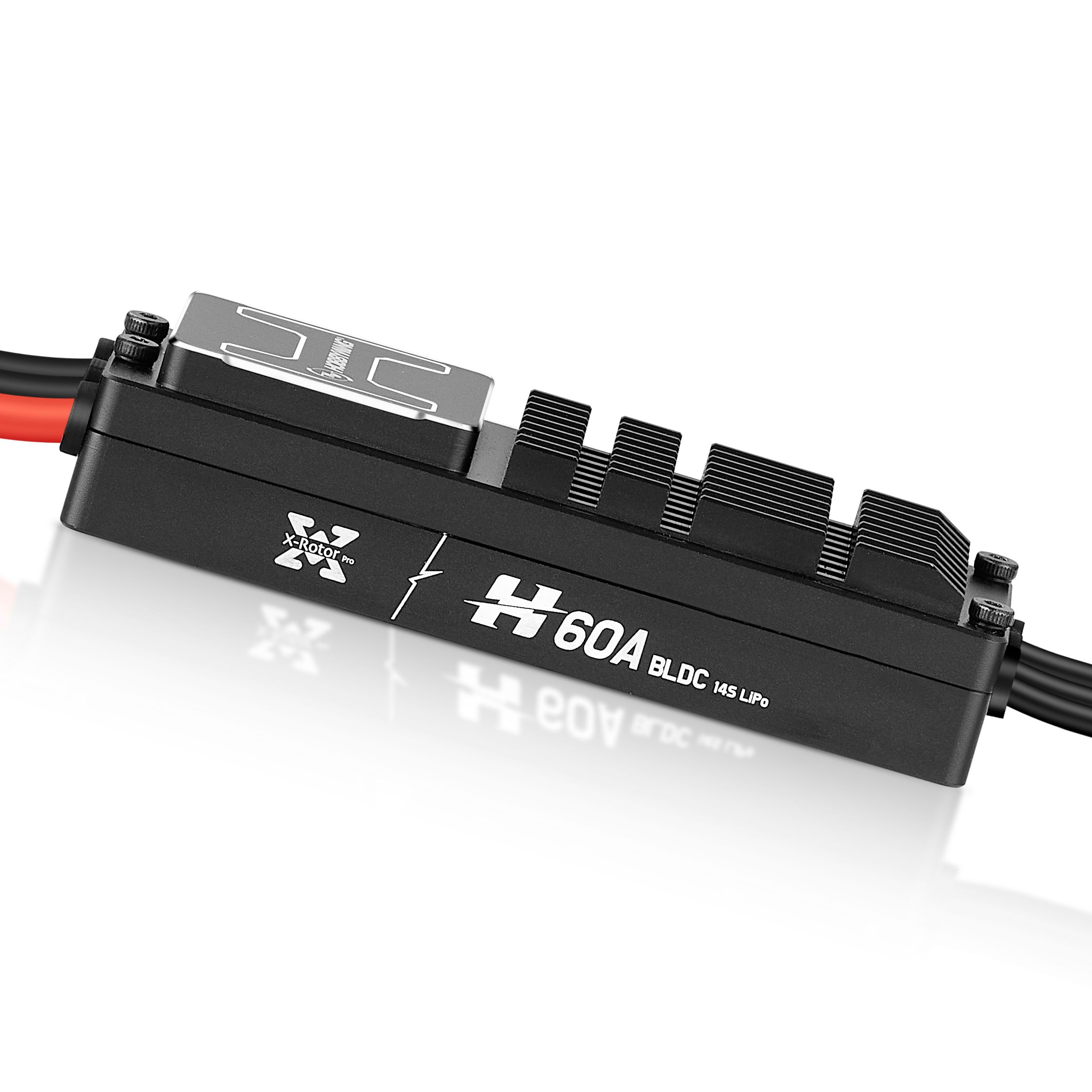

Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Specifications
Place of Origin :
China, Guangdong China
Firmware Upgrade :
Support
Double Throttle Signal :
Support(CAN and PWM)
Brand Name :
Hobbywing
Recommended Battery :
6S/ 12-14S
Waterproof Rating :
IP55(Custom IP67)
compatible brand :
DJI
private mold :
Yes
MOQ :
1 set
ESC :
60A
Operating Pulse Width :
1100-1940S
Peak Current (3 seconds) :
60A (3S)
Material :
PVC
Drive Mode :
FOC/BLDC
Continuous Current :
40A(Good heat dissipation)
Price :
$69-95 / set
Description
Product Features
Firmware Upgrade Support
Double Throttle Signal Support(CAN and PWM)
Waterproof Rating IP55(Custom IP67)
place of origin Guangdong, China
Drive Mode FOC/BLDC
Continuous Current 40A(Good heat dissipation)
Peak Current (3 seconds) 60A (3S)
ESC 60A
brand name Hobbywing
Recommended Battery 6S/ 12-14S
Operating Pulse Width 1100-1940S
private mold Yes
model number XRotor Pro-H60A-6S/14S-BLDC/FOC
Shenzhen Hobbywing Technology Co., Ltd.

Why Choose US?
Leading Drone Brushless Thrust System Manufacturer in China

- With professional technical team support
- 100% product quality protection
- 100% on-time shipment protection
- 100% payment protection by Alibaba
- Skilled workers and strict quality inspection

>>> We're Hobbywing Official Store.
The first company in China to engage in the R&D of brushless power systems for drones and RC model products. With about 20 years experience in this field.

>>> Looking for distributors and welcome to contact us for specific solutions

Please send me the requirement and quantity you need,
and we'll provide you with a good price.
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Hobbywing Xrotor Pro 60A 14S BLDC/FOC VTOL Un ESC Drone Speed Controller A Rated 40A Amp Esc Accessory
Specification
ESC
XRotor Pro 60A-6S-FOC
XRotor Pro 60A-6S-BLDC
XRotor Pro 60A-14S-FOC
XRotor Pro 60A-14S-BLDC
Input Voltage
4-6S(12-27V)
4-6S(12-27V)
6-14S(18-63V)
6-14S(18-63V))
Continuous Current
(Good heat dissipation)
40A
40A
25A
25A
Peak Current (3 seconds)
60A
60A
60A
60A
Operating Temperature
-40°C~65°C
Communication Protocol
CAN(Custom Serial port)
Firmware Upgrade
Support
Digital Throttle
Support CAN
PWM Input Signal Level
5V/3.3V
Throttle Signal Frequency
50-500Hz
Operating Pulse Width
1100-1940S
Double Throttle Signal
Support(CAN and PWM)
Waterproof Rating
IP55(Custom IP67)
Weight(Without Cable)
53g
53g
67g
67g
Size
71*32.2*16.2mm
71*32.2*16.2mm
78.5*32.5*17.6mm
78.5*32.5*17.6mm
