5000MT Hydraulic Aluminium Profile Extrusion Press Machine
5000MT Hydraulic Aluminium Profile Extrusion Press Machine
Specifications
Place of Origin :
Guangdong
Brand Name :
Huanan
Certification :
ISO
MOQ :
1 Pcs
Packaging Details :
Wooden pallet
Payment Terms :
LC,T/T
Supply Ability :
5pcs/ 2 Months
Power :
Electric energy
Size :
Customizable
Use :
Aluminum Extrusion
Motor :
Servo or ordinary motor
Functional :
Automatic or semi-automatic
Surface treatment :
Heat treatment
Material :
Steel Forging
Color :
Customized
Description
5000MT Hydraulic Aluminium Profile Extrusion Press Machine
Product Specifications
Attribute Value
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Material Steel Forging
Color Customized
Product Overview
The 5000MT extrusion press represents the pinnacle of aluminum extrusion technology, designed for mission-critical applications where only the most massive, most precise profiles will suffice. This industrial-grade machine is engineered for producing components for aerospace, marine, and advanced transportation systems.
Technical Specifications
Standard Billet Size (Outer diameter) Φ330mm
Standard Billet Size (Length) 600~1400mm
Machine extrusion force 50.7MN
Die Size (Diameter) Φ650mm
Die Size (Depth) H750mm
Total Power 1105KW
Main oil pump (Hilectro brand) HP130U2-G120W-R1P4(160KW)*6
Liquid cooling driver Hi200-180KW*6
Key Advantages
  • The short-stroke design increases frame rigidity by 30% compared to conventional extruders
  • Reduced hydraulic oil consumption enhances control accuracy and energy efficiency
  • Elimination of gasket circulation system decreases reactive operation time
  • Servo motor-driven translation manipulator reduces non-extrusion time by 15%
5000MT Hydraulic Aluminium Profile Extrusion Press Machine
Industry Applications
Our hydraulic aluminum extrusion machine serves diverse industries including construction, industrial trade, new energy, and photovoltaic sectors. The produced aluminum profiles are ideal for:
  • Architectural elements: roofs, walls, doors, windows, and frames
  • Structural components: lattice shells, grid structures, and support systems
  • Decorative applications: interior/exterior panels, partitions, ceilings, and railings
  • Industrial uses: store containers, formwork, and specialized construction materials
5000MT Hydraulic Aluminium Profile Extrusion Press Machine
Technical Features
  • Robust design with critical components exhibiting low failure rates
  • Minimal operational impact and vibration with reduced leakage risk
  • High responsiveness and efficiency with shortened non-extrusion periods
  • Precision control with extrusion speed accuracy within ±0.1mm
  • Advanced automation reduces operator and maintenance requirements
Product Gallery

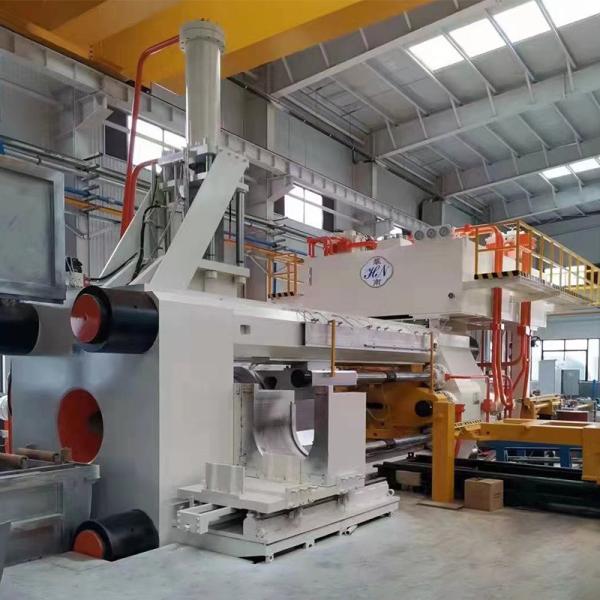

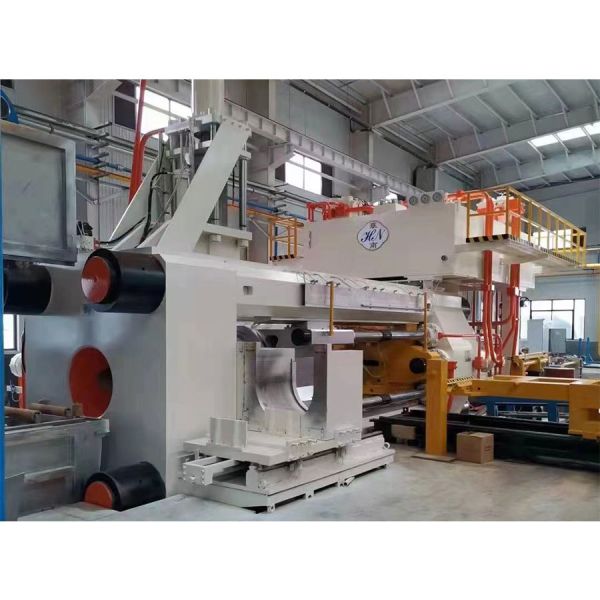

5000MT Hydraulic Aluminium Profile Extrusion Press Machine 5000MT Hydraulic Aluminium Profile Extrusion Press Machine
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is recognized as premium extrusion equipment in China. With proper maintenance, the machine lifespan typically exceeds 15 years, with many established aluminum manufacturers among our satisfied customers.
Q2: How to choose the right type machine?
Provide your profile sectional drawing dimensions and intended applications. Our engineers will calculate and recommend the optimal machine configuration for your specific requirements.
Q3: Will Huanan provide installation service?
Our technicians will conduct on-site installation and comprehensive operator training once the machine arrives at your facility and installation conditions are met.
Q4: What is the delivery time of Huanan Machines?
Production lead times vary by machine size:
- 600-1000MT: 30 days
- 1250-1800MT: 45-60 days
- 2000-3000MT: 180 days
- 3000MT+: 6-12 months
Complete production lines typically require 3-10 months.
Q5: What services Huanan can do for you?
We provide comprehensive support including:
  • Technical consultation and customized production solutions
  • Complete design, manufacturing, and quality assurance
  • Shipping coordination and documentation
  • Installation, training, and lifetime maintenance support
