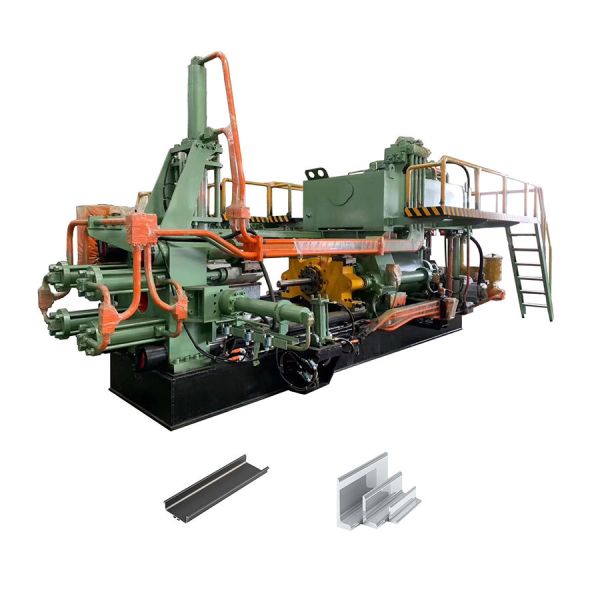

700T Single-Action Extrusion Press Machine for Aluminum
700T Single-Action Extrusion Press Machine for Aluminum
Specifications
Brand Name :
Huanan
Model Number :
HN-700T
Certification :
ISO
Place of Origin :
Guangdong
MOQ :
1 Pcs
Price :
$89800-$106000
Payment Terms :
LC,T/T
Supply Ability :
5pcs/ 2 Months
Delivery Time :
3 Months
Packaging Details :
Wooden pallet
Power :
Electric energy
Size :
Customizable
Use :
Aluminum Extrusion
Motor :
Servo or ordinary motor
Functional :
Automatic or semi-automatic
Surface treatment :
Heat treatment
Material :
Steel Forging
Color :
Customized
Description
700T Single-Action Extrusion Press Machine for Aluminum
Product Overview
The 700T Customized Aluminum Extrusion Press is a heavy-duty industrial machine designed to shape heated aluminum billets into precise, predefined profiles via high-pressure extrusion. By forcing the heated material through a custom-engineered die, it produces aluminum alloy profiles with consistent cross-sections, tight dimensional accuracy, and excellent surface finish.
Tailored to specific production demands, the 700T Aluminum Extrusion Press features a rugged structure, stable performance, and high operating efficiency. As core equipment for modern aluminum profile manufacturers, it delivers superior precision, productivity, and long-term operational durability.
Product Specifications
Attribute Value
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Material Steel Forging
Color Customized
Technical Parameters
Parameter Value
Standard Billet Size Outer diameter: Φ100mm
Length: 550mm
Extrusion capacity Machine extrusion force: 22Mpa 729.7T(802UST)
Dimensions of mold base cavity Diameter: Φ220mm
Depth: H250mm
Equipment dimension Mechanical size: L7950mm×W3200mm×H3550mm
Overall weight: 33T
Total Power: 103KW
Motor Main oil pump: (Hilectro brand) HP12981-G102W-R1P4
Liquid cooling driver: Hi300-90KW
Hydraulic pump Main oil pump: (Germany Rexroth) A15VSO210 variable pumps
Auxiliary pump: (Tokyo Keiki) SQP43-60-38
Advantages of Short-Stroke Back Loading Structure
  • The extrusion stroke is shorter than conventional extruders, with reduced frame opening for higher rigidity (30% higher than traditional extruders)
  • Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy while reducing energy consumption
  • Eliminates gasket circulation system, reducing reactive operation time and power consumption (non-extrusion time reduced by 15%)
  • Servo motor-driven translation manipulator further reduces non-extrusion time by 15%
700T Single-Action Extrusion Press Machine for Aluminum
Application Fields
  • Construction Industry
  • Industrial Trade
  • New Energy Industry
  • Photovoltaic Industry
Aluminum profiles are used in roofs, walls, doors and windows, frames, structural components, glass curtain wall support systems, and various decorative elements in industrial and civil buildings.
700T Single-Action Extrusion Press Machine for Aluminum
Technical Characteristics
  • Key components (container, extrusion pad, shear blade, ingot feeder) feature mature structures with low failure rates
  • Minimal impact and vibration with reduced oil leakage risk
  • Fast response with high efficiency and short non-extrusion time
  • High precision with extrusion speed control (±0.1mm)
  • High automation level with intelligent production reduces operator requirements
Product Images
700T Single-Action Extrusion Press Machine for Aluminum 700T Single-Action Extrusion Press Machine for Aluminum
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is one of the best equipment for extrusion manufacturers in China. Under normal conditions, the machine lifespan reaches 15+ years, with many well-known aluminum manufacturers as our customers.
Q2: How to choose the right type machine?
Provide your product profile sectional drawing dimensions, and we'll calculate the suitable machine size for your needs.
Q3: Will Huanan provide installation service?
We send technicians to install the machine and train your employees on proper operation when installation conditions are met.
Q4: What is the delivery time of Huanan Machines?
600-1000MT: 30 days; 1250-1800MT: 45-60 days; 2000-3000MT: 180 days; 3000MT+: 6-12 months. Complete production lines require 3-10 months.
Q5: What services Huanan can do for you?
We provide comprehensive one-station services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
