Aluminium Profile Making Machine 1100T Hot Sale Aluminum Press Extruder
Aluminium Profile Making Machine 1100T Hot Sale Aluminum Press Extruder
Specifications
Brand Name :
Huanan
Model Number :
HN-1100T
Certification :
ISO
Place of Origin :
Guangdong
MOQ :
1 Pcs
Price :
$159400-$182000
Payment Terms :
LC,T/T
Supply Ability :
5pcs/ 2 Months
Delivery Time :
3 Months
Packaging Details :
Wooden pallet
Material :
Steel Forging
Uses :
Extrusion
Color :
customized
Craft :
Forging
Power :
Electric energy
Size :
Customizable
Use :
Aluminum Extrusion
Motor :
Servo or ordinary motor
Functional :
Automatic or semi-automatic
Surface treatment :
Heat treatment
Description
Aluminium Profile Making Machine 1100T Hot Sale Aluminum Press Extruder
Product Specifications
Attribute Value
Material Steel Forging
Uses Extrusion
Color Customized
Craft Forging
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Product Overview

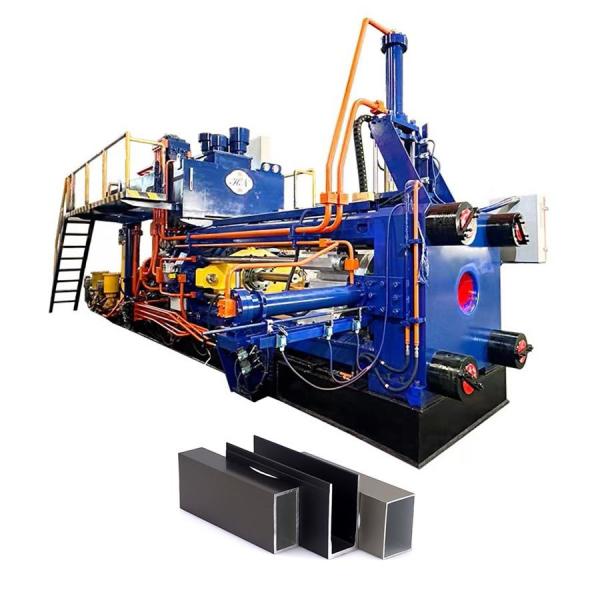

The 1100T aluminum extrusion press is a highly productive and versatile machine, offering an optimal balance between power, speed, and cost-efficiency. Designed for medium-to-large aluminum profiles, it delivers high precision and fast cycle times for industrial applications.

Technical Parameters
Standard Billet Size: Outer diameter: Φ127mm
Length: 400-680/750mm
Extrusion capacity: Machine extrusion force: 21Mpa 1000T(1100UST)
Dimensions of mold base cavity: Diameter: Φ250mm
Depth: H260mm
Equipment dimension: Mechanical size: L9500mm×W3200mm×H3900mm
Overall weight: 55T
Total Power: 182.5KW
Motor: Main oil pump: (Hilectro brand) HP12981-G102W-R1P4
Liquid cooling driver: Hi300-90KW
Hydraulic pump: Main oil pump: (Germany Rexroth) A15VSO210 variable pumps
Auxiliary pump: (Tokyo Keiki) SQP43-60-38
Advantages of Short-Stroke Back Loading Structure
  • The extrusion stroke is notably shorter than conventional extruders, increasing stress frame rigidity by 30%
  • Reduced main side cylinder volume minimizes hydraulic oil usage while enhancing speed and pressure control accuracy
  • Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%
  • Servo motor-powered translation manipulator decreases non-extrusion time by 15%
Aluminium Profile Making Machine 1100T Hot Sale Aluminum Press Extruder
Application Fields

Our hydraulic aluminum extrusion machine serves diverse industries including construction, industrial trade, new energy, and photovoltaic sectors. The produced aluminum profiles are used for:

  • Structural components in buildings (roofing, walling, doors, windows)
  • Decorative elements (panels, partitions, ceilings, railings)
  • Industrial applications (storage containers, formwork, structural supports)
  • Specialized uses (glass curtain walls, awnings, pedestrian bridges)
Aluminium Profile Making Machine 1100T Hot Sale Aluminum Press Extruder
Technical Characteristics
  • Mature structural design of key components ensures low failure rate
  • Minimal impact and vibration with leak-resistant construction
  • Fast response time and high operational efficiency
  • Precision control with extrusion speed accuracy of ±0.1mm
  • High automation level reduces operator requirements
Aluminium Profile Making Machine 1100T Hot Sale Aluminum Press Extruder Aluminium Profile Making Machine 1100T Hot Sale Aluminum Press Extruder
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is recognized as one of China's premier extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years under normal operating conditions, with many well-known aluminum manufacturers among our clientele.
Q2: How to choose the right type machine?
Please provide details about your production requirements and profile sectional drawing dimensions. Our technical team will calculate and recommend the optimal machine configuration for your specific needs.
Q3: Will Huanan provide installation service?
Upon machine arrival and when installation conditions are met, we dispatch technicians to oversee installation and provide comprehensive operator training.
Q4: What is the delivery time of Huanan Machines?
  • 600-1000MT: 30 days
  • 1250-1800MT: 45-60 days
  • 2000-3000MT: 180 days
  • 3000MT+: 6-12 months
  • Complete production lines: 3-10 months
Q5: What services Huanan can do for you:
Huanan provides comprehensive one-stop services including technical consultation, customized production proposals, complete manufacturing and documentation services, installation, lifetime maintenance support, and operator training.
