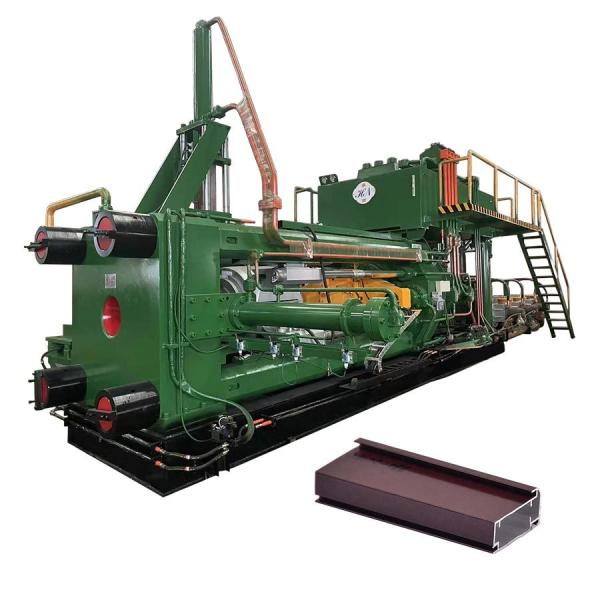

Huanan 1500ton Aluminum Extrusion Press for Making Aluminum Profile
Huanan 1500ton Aluminum Extrusion Press for Making Aluminum Profile
Specifications
Brand Name :
Huanan
Model Number :
HN-1500T
Certification :
ISO
Place of Origin :
Guangdong
MOQ :
1 Pcs
Payment Terms :
LC,T/T
Supply Ability :
5pcs/ 2 Months
Delivery Time :
3 Months
Packaging Details :
Wooden pallet
Power :
Electric energy
Size :
Customizable
Use :
Aluminum Extrusion
Motor :
Servo or ordinary motor
Functional :
Automatic or semi-automatic
Surface treatment :
Heat treatment
Material :
Steel Forging
Color :
Customized
Description
Huanan 1500ton Aluminum Extrusion Press for Making Aluminum Profile
Product Specifications
Attribute Value
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Material Steel Forging
Color Customized
Product Overview

The 1500MT aluminum extrusion press is a heavy-duty, user-friendly machine designed for high-volume production of large and complex aluminum profiles. It combines strong extrusion force (1500 metric tons) with simplified operation, making it ideal for industries requiring structural, automotive, and industrial aluminum extrusions.

Technical Parameters
Standard Billet Size - Outer diameter: Φ152mm
Standard Billet Size - Length: 350-900mm
Machine extrusion force: 25Mpa 1511T(1662UST)
Dimensions of mold base cavity - Diameter: Φ350mm
Dimensions of mold base cavity - Depth: H360mm
Mechanical size: L12800mm×W6658mm×H3929mm
Overall weight: 105T
Total Power: 300KW
Main oil pump (Hilectro brand): HP12981-G102W-R1P4
Liquid cooling driver: Hi200-110KW
Main oil pump (Germany Rexroth): A15VSO210 variable pumps
Auxiliary pump (Tokyo Keiki): SQP43-60-38
Advantages of Short-Stroke Back Loading Structure
  • The extrusion stroke is shorter than conventional extruders, reducing frame opening and increasing stress frame rigidity by 30%
  • Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy
  • Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%
  • Servo motor-driven translation manipulator further reduces non-extrusion time by 15%
Huanan 1500ton Aluminum Extrusion Press for Making Aluminum Profile
Application Fields

Our hydraulic aluminum extrusion machine is versatile and applicable across multiple industries including construction, industrial trade, new energy, and photovoltaic sectors. Aluminum profiles produced by our machine have a wide range of uses:

  • Roofs, walls, doors, and windows
  • Frames and reticulated shell structures
  • Grid structures and glass curtain wall support systems
  • Awnings and pedestrian bridges
  • Interior and exterior decorative panels, partitions, ceilings
  • Railings and handrails
  • Store containers and construction formwork
Huanan 1500ton Aluminum Extrusion Press for Making Aluminum Profile
Technical Characteristics
  • Key components feature mature designs with low failure rates
  • Minimal impact and vibration reduces oil leakage likelihood
  • Quick responsiveness and high efficiency reduces non-extrusion time
  • High precision with ±0.1mm extrusion speed control accuracy
  • Highly automated with intelligent production support
Product Images
Huanan 1500ton Aluminum Extrusion Press for Making Aluminum Profile Huanan 1500ton Aluminum Extrusion Press for Making Aluminum Profile
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to customer feedback, under normal conditions the machine life can reach 15 years or more. Many well-known aluminum manufacturers are our cooperative customers.
Q2: How to choose the right type machine?
Please provide details about your products and profile sectional drawing dimensions. We will calculate the suitable machine size based on your requirements.
Q3: Will Huanan provide installation service?
When the machine arrives at your factory and meets installation conditions, we will send technicians to install it and train your employees on proper equipment use.
Q4: What is the delivery time of Huanan Machines?
  • 600-1000MT: 30 days
  • 1250-1800MT: 45-60 days
  • 2000-3000MT: 180 days
  • 3000MT+: 6-12 months
We can also design and manufacture complete production lines (3-10 months).
Q5: What services Huanan can do for you?
Huanan provides comprehensive one-stop services including:
  • Technical consultation and support
  • Customized production proposals
  • End-to-end services from design to shipping
  • Lifetime support including installation, training, and maintenance
