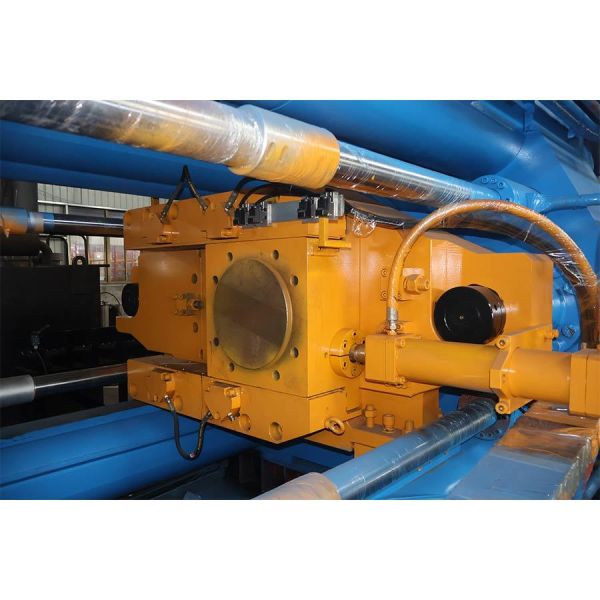

High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
Specifications
Certification :
ISO
Use :
Aluminum Extrusion
MOQ :
1 Pcs
Surface treatment :
Heat treatment
Functional :
Automatic or semi-automatic
Packaging Details :
Wooden pallet
Place of Origin :
Guangdong
Power :
Electric energy
Size :
Customizable
Delivery Time :
3 Months
Color :
customized
Model Number :
HN-1100T
Payment Terms :
LC,T/T
Uses :
Extrusion
Supply Ability :
5pcs/ 2 Months
Material :
Steel Forging
Motor :
Servo or ordinary motor
Price :
$159400-$182000
Craft :
Forging
Brand Name :
Huanan
Description
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
The 1100T Aluminum Extrusion Machine serves as high-performance core equipment for the modern aluminum processing industry. It delivers outstanding production efficiency and long-term operational stability, achieving a perfect balance among stable power output, adjustable extrusion speed and outstanding cost-efficiency. Engineered for continuous industrial production, this robust extrusion press works steadily under heavy loads, effectively boosting overall production throughput while cutting down daily operating costs. It is a dependable choice for medium-scale aluminum profile manufacturing and metal extrusion production lines.
Product Specifications
Material Steel Forging
Uses Extrusion
Color Customized
Craft Forging
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Technical Specifications
Standard Billet Outer Diameter Φ127mm
Standard Billet Length 400-680/750mm
Machine Extrusion Force 21Mpa 1000T(1100UST)
Mold Base Cavity Diameter Φ250mm
Mold Base Cavity Depth H260mm
Mechanical Size L9500mm*W3200mm*H3900mm
Overall Weight 55T
Total Power 182.5KW
Main Oil Pump (Hilectro) HP12981-G102W-R1P4
Liquid Cooling Driver Hi300-90KW
Main Oil Pump (Germany Rexroth) A15VSO210 variable pumps
Auxiliary Pump (Tokyo Keiki) SQP43-60-38
Advantages of Short-Stroke Back Loading Structure
  • Shorter extrusion stroke reduces frame opening, increasing stress frame rigidity by 30% compared to traditional extruders
  • Decreased main side cylinder volume minimizes hydraulic oil usage, enhancing speed and pressure control accuracy
  • Elimination of gasket circulation system reduces reactive operation time and power consumption
  • Translation manipulator powered by servo motor contributes to 15% reduction in non-extrusion time
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
Application Fields
Our hydraulic aluminum extrusion machine serves diverse industries including:
  • Construction Industry
  • Industrial Trade
  • New Energy Industry
  • Photovoltaic Industry
Aluminum profiles produced by this machine are used for roofing, walling, doors and windows, framing, reticulated shell structures, glass curtain walls, awnings, pedestrian bridges, interior/exterior decorative panels, partitions, ceilings, railings, and handrails. They also serve as structural components in storage containers and formwork.
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
Technical Characteristics
  • Key components feature mature structures with low failure rates
  • Minimal impact and vibration with reduced oil leakage potential
  • Fast response time with high efficiency and short non-extrusion periods
  • High precision with extrusion speed control accuracy of ±0.1mm
  • Advanced automation and intelligent production reduces operator requirements
High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine High Efficiency 1100T Hydraulic Aluminum Extrusion Line Machine
Frequently Asked Questions
How is the quality of Huanan Brand machine and the service life?
Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years with proper maintenance. Many well-known aluminum manufacturers are our satisfied customers.
How to choose the right type machine?
Please provide details about your products and profile sectional drawing dimensions. Our engineers will calculate the optimal machine size for your requirements.
Will Huanan provide installation service?
When the machine arrives at your facility and installation conditions are met, we dispatch technicians for installation and operator training.
What is the delivery time of Huanan Machines?
  • 600-1000MT machines: 30 days
  • 1250-1800MT machines: 45-60 days
  • 2000-3000MT machines: 180 days
  • 3000MT+ machines: 6-12 months
Complete production lines require 3-10 months depending on complexity.
What services does Huanan provide?
Huanan offers comprehensive one-station services including technical consultation and support, custom production proposals, design, manufacturing, inspection, shipping with full documentation, installation, training, and lifetime maintenance support.
