CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
Specifications
Brand Name :
HUALE MACHINERY
Model Number :
DPP-A
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Price :
$10000-30000 /Set
Supply Ability :
15 Set per month
Delivery Time :
30 working days after received your payment.
Packaging Details :
WOODEN BOX.
Name :
Blistering Machine
Noise :
Low
Option Parts 1 :
Vision inspection system
Option Parts 2 :
Eye mark operation/Photocel control
Option Parts 3 :
Water Cooling Machine
Packaging Material :
PVC/Alu/Paper card
Certifaction :
CE certifacted and GMP compliant design
Others :
Could make special types for custom detail requires
Description

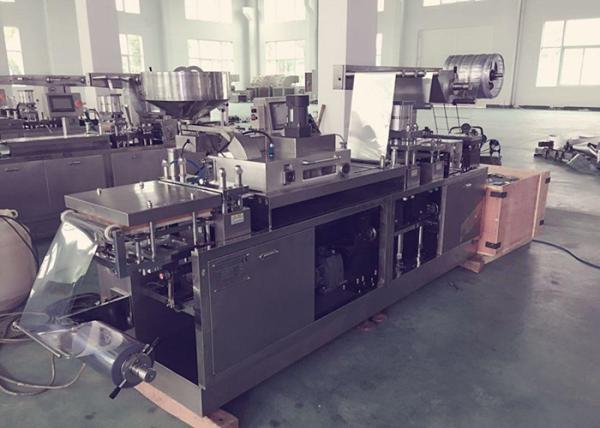

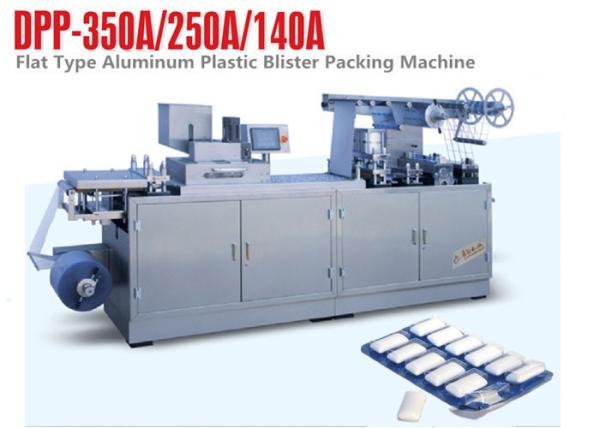

CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A

DPP-A Blister Machine is widely used in medicine, food, electron, medical equipment such as capsules, tablets,penicillin bottle, ampoule,oral liquid, candy and special-shaped blister packaging, besides,it can also be used for health care products, chemical, light industry product solid-state items blister packaging.

SPECIFICATIONS

Item Model

DPP-350A

DPP-250A

DPP-140A

Cutting Frequency

(ideal sizes:80*57mm)

15-45 cutting/min

15-45 cutting/min

15-45 cutting/min

Max. Forming Area and Depth

350×130×15

250×120×15

140×110×15

Adjustable Scope of Travel(mm)

30-140mm

30-130mm

30-120mm

Packaging material

(I.D.Φ75)

PVC(mm)

(0.15-0.6)

×350×(Φ400)

(0.15-0.4)

×260×(Φ400)

(0.15-0.4)

×160×(Φ350)

PTP(mm)

(0.02-0.15)

×350×(Φ400)

(0.02-0.15)

×260×(Φ400)

(0.02-0.15)

×160×(Φ350)

Paper(mm)

(50-100)g/㎡

×350×(Φ400)

(50-100)g/㎡

×260×(Φ400)

(50-100)g/㎡

×160×(Φ350)

Power

380V 50Hz 9.5kw

380V 50Hz 8kw

380V 50Hz 5.5kw

Air compression

(Don't Provide)

0.6-0.8Mpa

≥0.6m³/min

0.6-0.8Mpa

≥0.45m³/min

0.6-0.8Mpa

≥0.4m³/min

Recycle water or

circulating water consumption

60-100L/h

40-80L/h

40-80L/h

Overall Dimension(L*W*H)(including foundation)

3650×850×1700

2900×750×1600

2400×650×1450

Dimension of Each Part

1850×850×1700(front)

1500×750×1600(front)

1350×650×1250(front)

1800×850×1650(back)

1400×750×1450(back)

1050×650×1450(back)

Weight

About 2000kg

About 1200kg

About 800kg

CHARACTERISTIC


1. Travel scope can be adjusted.
2. Mould is located by locating groove, so that it`s easy to change mould. Adopt cool-forming moulds.
3. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
4. Waster-eliminating equipment.
5. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine`s life.
6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
7. Stepping motor drive wheel to grip and tow wrapper, Synchronize accurately

CERTIFICATION

CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A

CE Certificated Blister Packaging Machine Pharmaceutical Industry DPP-A
