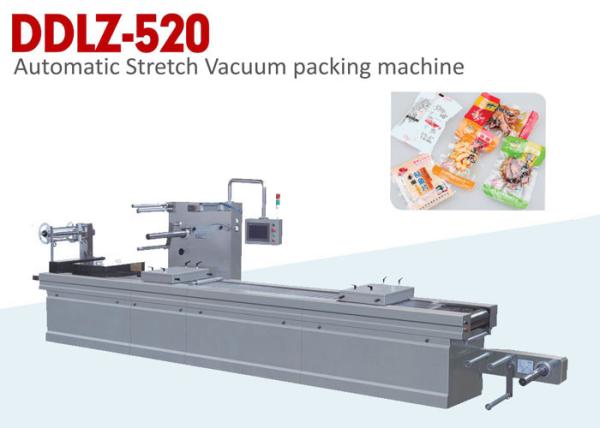

Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added
Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added
Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added
Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added
Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added
Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added
Specifications
Brand Name :
HUALE MACHINERY
Model Number :
DDLZ-520
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
T/T or L/C
Supply Ability :
20 Set per month
Delivery Time :
40 working days after received your payment
Packaging Details :
Wooden Box
Product Name :
automatic stretch vacuum packing machine
packing ways :
body fitted plastic plastic/ paper plastic/ hard plastic package
application :
various foods, meat, seafood, fruits and vegetables
vavacuum degree :
<200pa
compressed airlargest tablet :
>0.6Mpa
cooling water :
>0.15Mpa
power :
380V 50HZ
Net weight :
2100kg
Description

Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added

Applications:

This packing machine is a high precision equipment in our company. It is suitable for all kinds of film thickness and hard film stretch forming.

Performance and characteristic:

  • The machine come with edge wast recycling system,maintain environmental hygiene.
  • Adopt advanced cross cutting, slitting system, convenient replacement operation.
  • Use combination molds which equipped with cooling system, easy to replace so that more than one usage in one machine.
  • Panasonic servo motor, touch screen, PLC and other control system make the machine easy to operate and adjust.
  • Photoelectric tracking function, can choose the color cover film or film for packing.Reduce cost and improve product quality.
  • Nitrogen can be filled on the basis of pumping vacuum also other packaging can do according to customer’s product packaging requirement.

TECHNICAL PARAMETER

Model

DDLZ-520

DDLZ-420

DDLZ-320

Upper Film Width

492mm

392mm

292mm

Lower Film Width

522mm

422mm

322mm

Vacuum Degree

≦200pa

≦200pa

≦200pa

Compressed air

≧0.6Mpa

≧0.6Mpa

≧0.6Mpa

Cooling water

≧0.15Mpa

≧0.15Mpa

≧0.15Mpa

Power

380V 50HZ

380V 50HZ

380V 50HZ

Weight

2100kg

1700kg

1300kg

Dimension

6200×1400×1900mm

6200×1400×1900mm

6200×1400×1900mm

Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added

PACKAGE

  1. The machine will not be shaking in transport with wooden fixed.
  2. The machine will not be affected with damp in transport with packed with PE plastic bags.
  3. Easy shaking station will fixed with hard rope.
  4. Long machine will packed separately.
  5. If there are strict requirements, chassis can use iron girders.

MANUFACTURING GOOD QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
