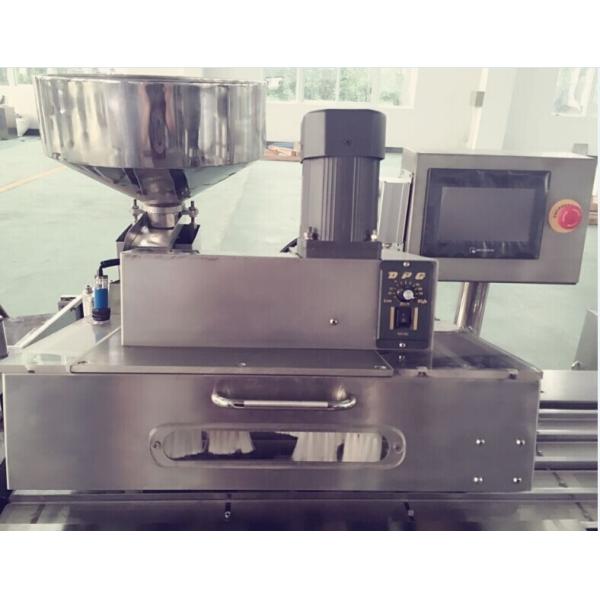

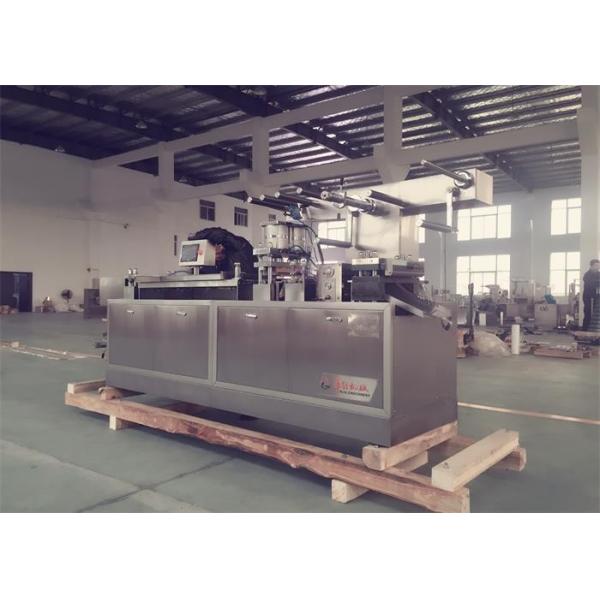

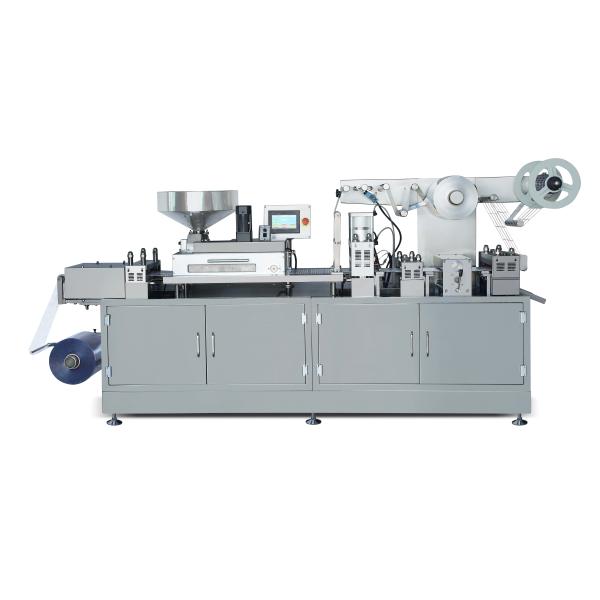

Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Specifications
Brand Name :
HUALE MACHINERY
Model Number :
DPP-140A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Price :
$9000-$20000 USD/set
Supply Ability :
15 Set per month
Delivery Time :
30 working days after received your payment
Packaging Details :
WOODEN BOX.
Product Name :
Blister Packing Machine
Output :
Max.45cutting/min
Max. Forming Area and Depth :
140*110*15
Pulling :
Servor motor
Material Consist :
SS304/316
Control :
PLC control
Description

Aluminum Plastic Automatic Blister Packing Machine DPP-140A

DPP-140A Small Flat Type Aluminum Plastic Blister Packing Machine

Blister Machine DPP140A is ideal for producing small batches of high quality blister packs in:
Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.

Model

140A

Machine Body

Stainless Steel 304

Blanking frequency(times/min)

15-45

Adjustable pulling length

30-120mm

Blister Size

Design According To Customers’ Requirements

Max Forming area and depth(mm)

140*110*15 (20 need Private custom)

Air compressor

0.6-0.8Mpa ≥0.4m3/min

Mould cooling

(Recycle water or circulating water consumption)

40-80 L/h

Power supply

(Three phase)

380V/220V 50HZ 5.5KW

(According to the customer need to select the voltage)

Wrapper specification(mm)

PVC

160*(0.15-0.6)*(Φ400)

Aluminum foil

160*(0.02-0.035)*(Φ400)

Overall Dimension(L*W*H)(including foundation)

2400*650*1450

Dimension of Each Part

1300*650*1250front)

1050*650*1450(back)

Weight

About 800kg
